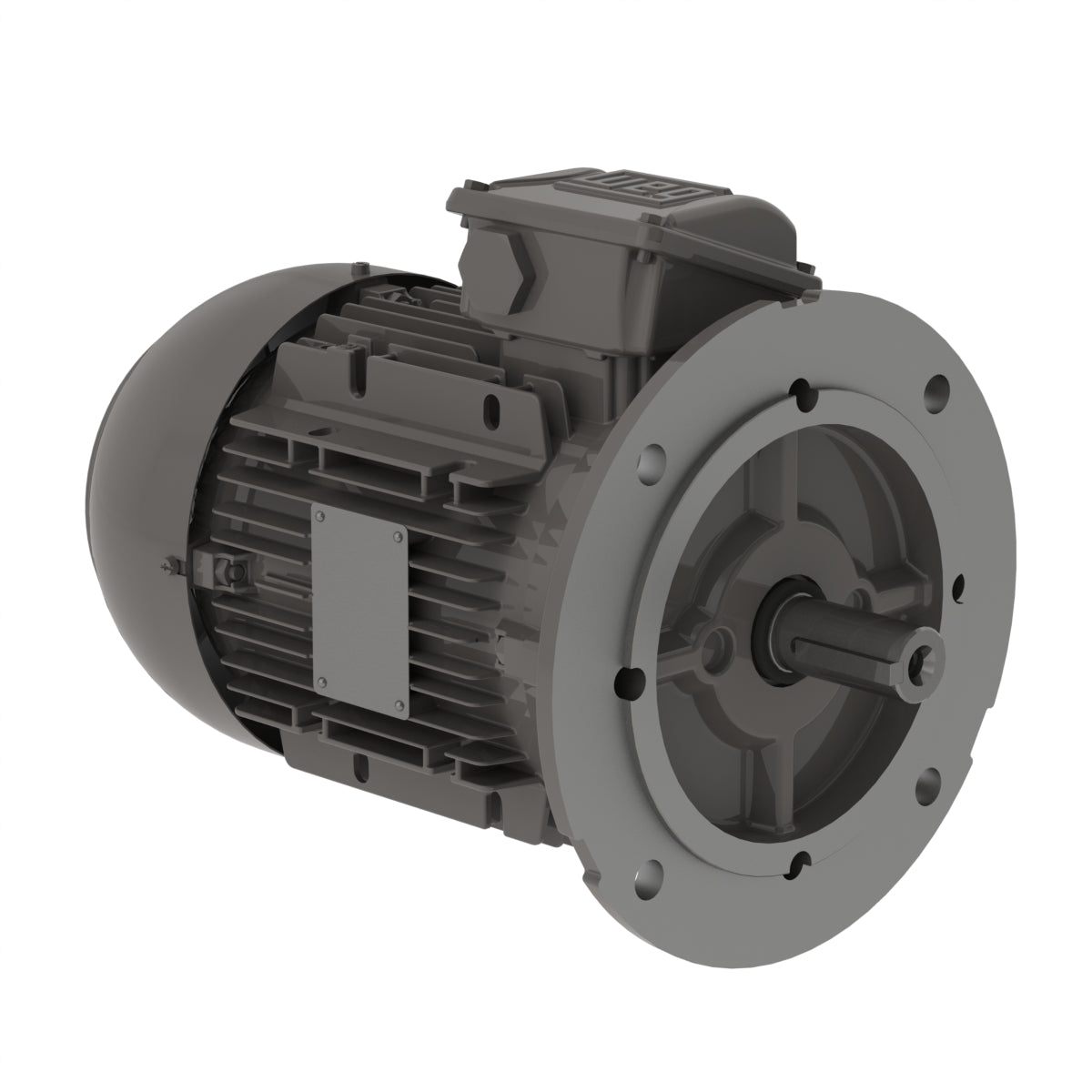

WEG .1818EP3EALR63FF-W22 — Motor
Weg Electric .1818EP3EALR63FF-W22, 1/4 Hp, 63 Frame, 1800 RPM, 230/460//380-415 Vac, TEFC, 3 PH, Footless, Multimounting High Efficiency.
Overview
.1818EP3EALR63FF-W22, 1/4 Hp, 63 Frame, 1800 RPM, 230/460//380-415 Vac, TEFC, 3 PH, Footless, Multimounting High Efficiency. Engineering Data Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 230/460//380-415 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 0.25 HP Mounting Footless Flange FF Mounting B5T Terminal box¹ Top Frame 63 Output 0.25 HP (0.18 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1710 rpm Slip 5.00 % Rated voltage 230/460 V Rated current 1.02/0.512 A L. R. Amperes 4.71/2.36 A LRC 4.6 No load current 0.940/0.470 A Rated torque 0.768 ft.lb Locked rotor torque 280 % Breakdown torque 290 % Locked rotor time 34s (cold) 19s (hot) Moment of inertia (J) 0.0133 sq.ft.lb Design N Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle S1 Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting B5T Rotation¹ Both (CW and CCW) Noise level² 48.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 19.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | .1818EP3EALR63FF-W22 |
| KKM catalog reference | WEG-.1818EP3EALR63FF-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does .1818EP3EALR63FF-W22 cost?
.1818EP3EALR63FF-W22 is listed at CA$415.36 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the .1818EP3EALR63FF-W22?
.1818EP3EALR63FF-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is .1818EP3EALR63FF-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for .1818EP3EALR63FF-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of .1818EP3EALR63FF-W22?
Key specifications include Tag: WEG Electric; Weight: 19.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can .1818EP3EALR63FF-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

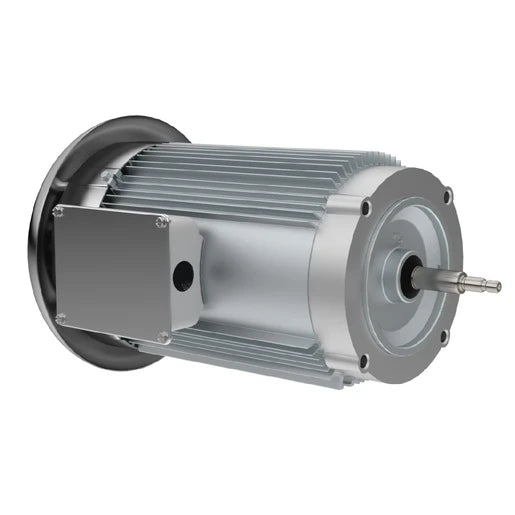

WEG Weg Electric .00118ET3QID56C, 1 Hp, 1800 Rpm, 56J Frame,…
