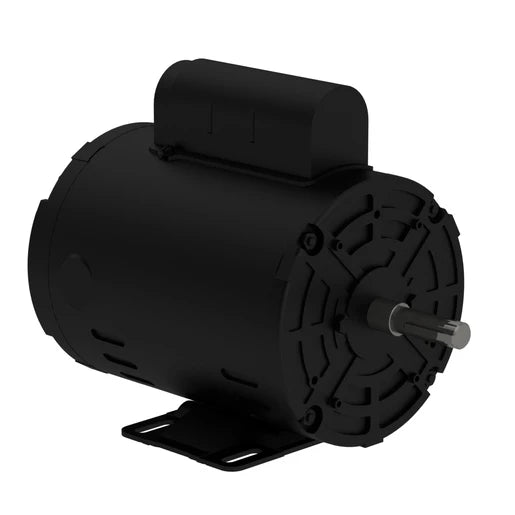

WEG .3318AS1BPF48-S — Motor
Weg Electric .3318AS1BPF48-S, 0.33 Hp, 1800 Rpm, 48 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15508279
Overview
Weg Electric .3318AS1BPF48-S, 0.33 Hp, 1800 Rpm, 48 FR, 115/208-230 Vac, 1 PH, TEAO, Foot-Mounted, 15508279 Specifications Manufacturer Part Number .3318AS1BPF48-S Manufacturer WEG Electric Family Series WEG Electric Motors Description MOTOR 0.33HP 4P 48 WCF2 RO S SI PH Type Farm Duty Horsepower 1/3 hp Kilowatts 0.25 kW Speed 1,800 RPM Number of Poles 4 Phase 1 Frequency 60 Hz NEMA Frame 48 AC Voltage 115 VAC, 208-230 VAC Nominal Voltage 120 VAC, 208 VAC, 240 VAC Enclosure Totally Enclosed Air Over Mounting Foot Mount Current Rating 2.76 A Service Factor 1.25 Inverter Duty No Motor Type Foot Mount Composition Rolled Steel Bearing Type Double Shielded Shaft Diameter 0.5 " Overload Protection Automatic Length 10.16 " Approvals cCSAus Net Weight 26.264 lbs Gross Weight 26.264 lbs
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 26.26 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | .3318AS1BPF48-S |
| KKM catalog reference | WEG-.3318AS1BPF48-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does .3318AS1BPF48-S cost?
.3318AS1BPF48-S is listed at CA$407.49 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the .3318AS1BPF48-S?
.3318AS1BPF48-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is .3318AS1BPF48-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for .3318AS1BPF48-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of .3318AS1BPF48-S?
Key specifications include Tag: WEG Electric; Weight: 26.26 lb. The full specification table on this page lists every published attribute for this part.
How quickly can .3318AS1BPF48-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- .3318AS1BPFPC48Z-S — Weg Electric .3318AS1BPFPC48Z-S, 0.33 Hp, 1800 Rpm, 48Z FR, 115/208-230 Vac, 1…

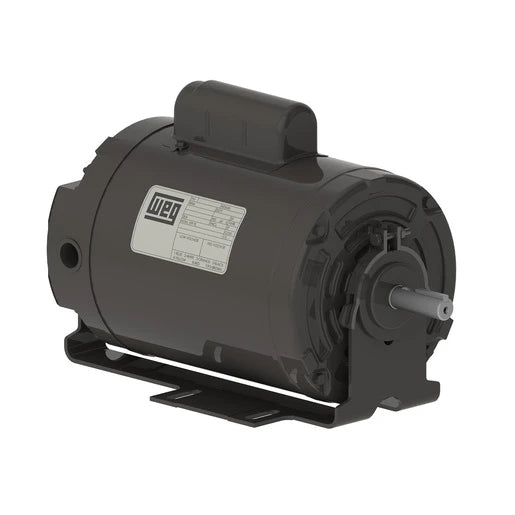

- .3318AS1BRBPF48-S — Weg Electric .3318AS1BRBPF48-S, 0.33 Hp, 1800 Rpm, 48 FR, 115/208-230 Vac, 1…
Related Products
WEG Weg Electric .2536EP3HAL63-W22, 1/3 Hp, 3600 Rpm, 63 FR,…
WEG Weg Electric .3318AS1BPFPC48Z-S, 0.33 Hp, 1800 Rpm, 48Z FR,…
WEG Weg Electric .2518OS3EFBW56-S, 1/4 Hp, 1800 Rpm, 48Z FR,…
WEG Weg Electric .3318AS1BRBPF48-S, 0.33 Hp, 1800 Rpm, 48 FR,…

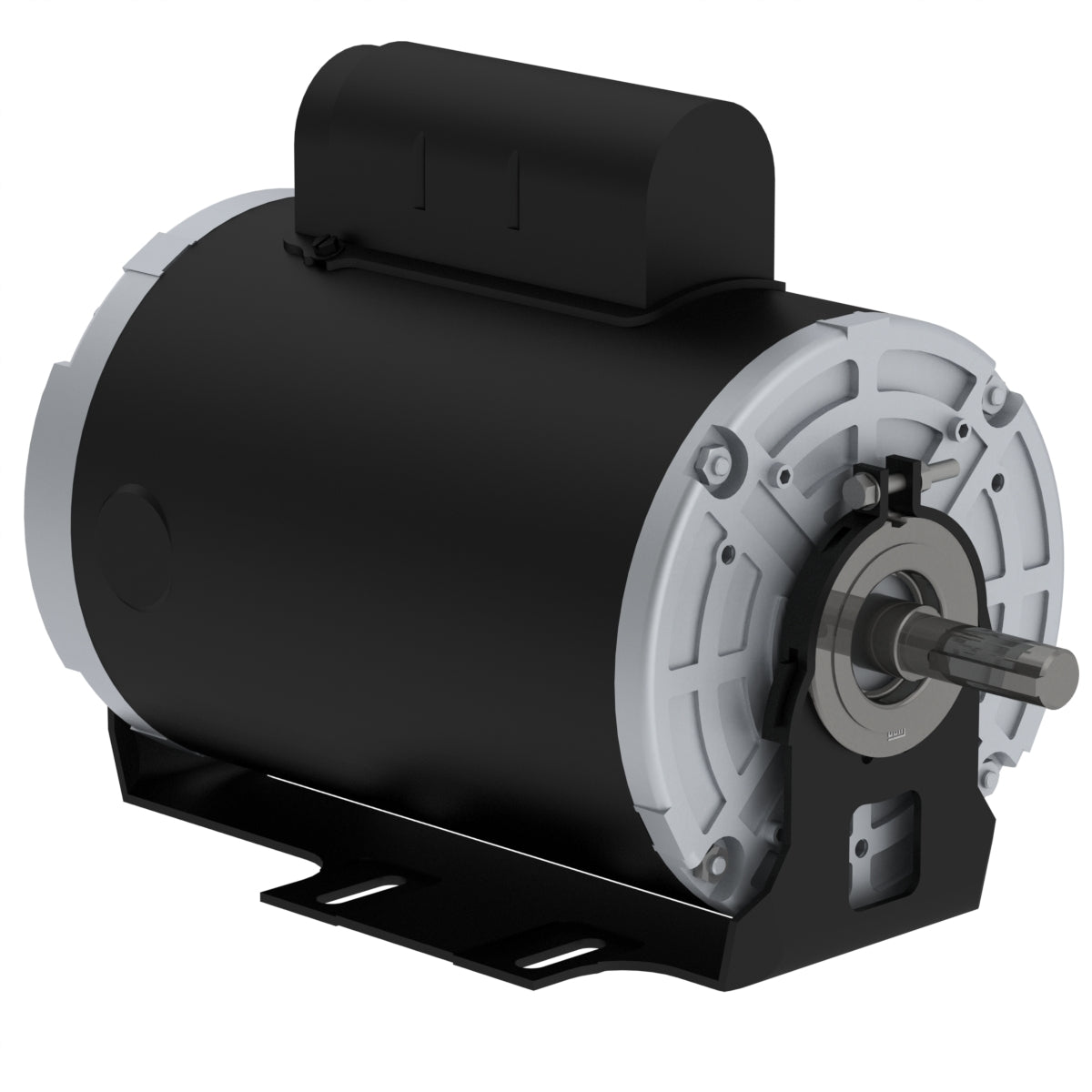

WEG Weg Electric .2518OS1BRBFBW56-S, 1/4 Hp, 1800 Rpm, W56 FR,…
