Siemens 1FL6096-1AC61-2LG1 Siemens

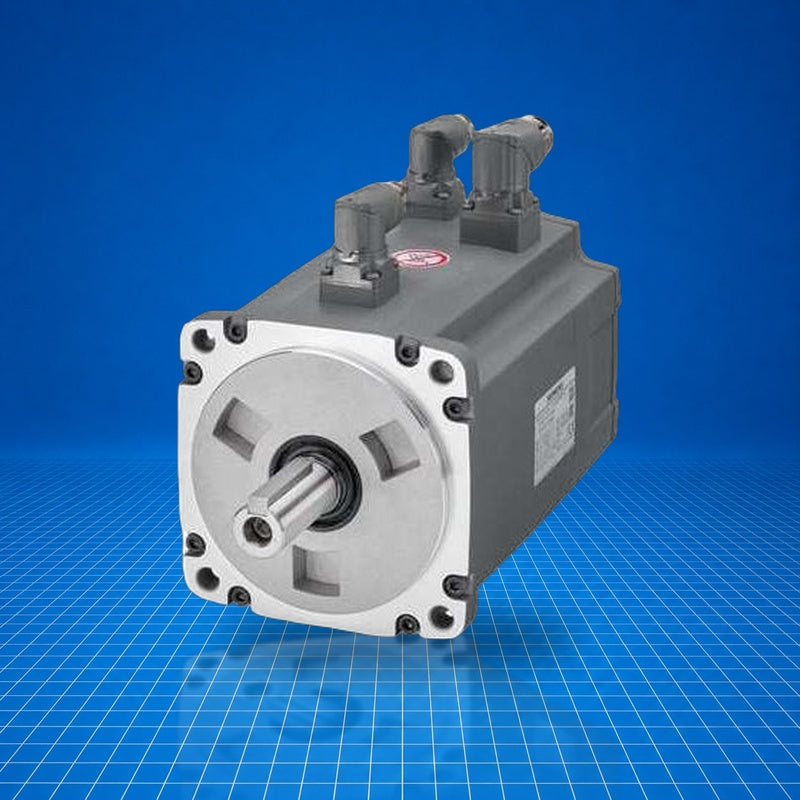

Product Overview The Siemens SIMOTICS S-1FL6 servomotor (part number 1FL6096-1AC61-2LG1) is a high-inertia, permanent-magnet synchronous motor sized for motion control systems utilizing SINAMICS V90 drives. It delivers 7.00 kW (9.52 hp) nominal power at 2,000 rpm, with peak torque up to 90 Nm and rated torque of 33.40 Nm. Designed for industrial positioning and dynamic motion applications, it features an absolute encoder (20-bit + 12-bit multi-turn), IP65 protection, and compliance with CE and EAC standards. The motor's rugged construction supports servo control in packaging, robotics and CNC axis systems. Best Suited For Servo axis drives with SINAMICS V90 Applications requiring high inertia motor control Dynamic positioning and motion systems Environments needing IP65 protection Rated power 7.00 kW / 9.52 hp Rated torque 33.40 Nm Max torque 90.00 Nm Protection rating IP65 Technical Specifications I/O & Electrical Rated current 13.2 A Rated power 7.00 kW / 9.52 hp Max current 35.6 A Communication & Power Encoder Absolute encoder 20-bit + 12-bit multi-turn Physical & Environmental Rated speed 2,000 rpm Moment of inertia 134.300 kgcm² Ambient temperature 0 … 40 °C Degree of protection IP65 Net weight 32.80 kg Certifications CE EAC Compliance with CE and EAC standards.
