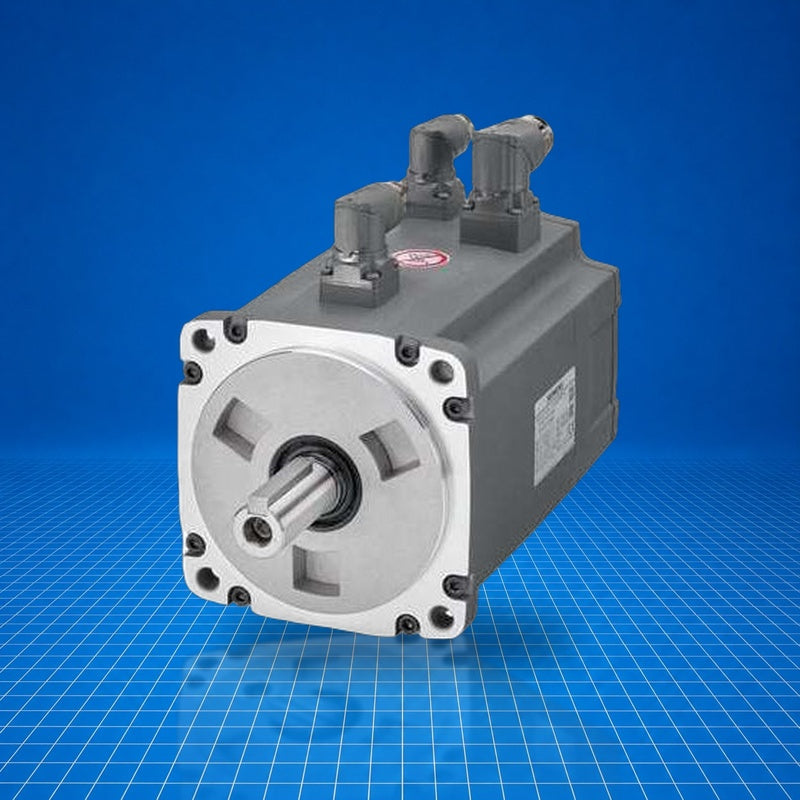

Siemens 1FL6062-1AC61-2LB1 Siemens

Product Overview The Siemens 1FL6062-1AC61-2LB1 is a SIMOTICS S-1FL6 permanent-magnet synchronous servomotor (servo motor) designed for use with SINAMICS V70/V90 drives. It provides precise motion control in industrial automation systems, delivering 1.00 kW (1.36 hp) rated power at 2 000 rpm, with a compact shaft height of 65 mm. Typical applications include CNC machinery, robotics, and high-precision positioning systems where closed-loop control and holding torque are required. Best Suited For Integration with SINAMICS V70/V90 drive systems High-precision positioning in CNC and robotic axes Applications requiring holding brake functionality Environments with IP65 protection requirements Rated power 1.00 kW / 1.36 hp Rated torque 4.78 Nm Rated speed 2 000 rpm Degree of protection IP65 Holding brake torque 12.00 Nm Technical Specifications I/O & Electrical Rated current 3.0 A Max. current 9 A Holding brake rated voltage 24 V DC ±10 % Holding brake rated current 1.50 A Communication & Power Rated power 1.00 kW / 1.36 hp Rated voltage type 3 AC 400 V Physical & Environmental Net weight 9.70 kg Thermal class B (130 °C) Ambient temperature (operation) 0 … 40 °C Relative humidity ≤ 90 % RH (no condensation at 30 °C) Encoder system Absolute encoder 20-bit + 12-bit multi-turn Degree of protection IP65 Connection type Angular connector (rotatable) Design (mounting) IM B5 (IM V1, IM V3) Certifications CE EAC
