359243 — Schunk SRH-plus 20-W-CB
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 359243 - Rotary Actuators - Weight (Kg): 2.1; Repeat accuracy: 0.05; Torque [Nm]: 3.0.
Overview
Part number 359243 from Schunk, listed in Rotary Actuators. Specifications on file: Angle of rotation [°] 180; Diameter of connecting hose 6 x 3.9 x 1.05; End position adjustability [°] 3; Fluid consumption (2x nom. angle) [cm³] 60.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 359243 is part of the Rotary Actuators range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 2.1 and Repeat accuracy: 0.05.
The specification set recorded for this part number covers Torque [Nm]: 3.0; Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 67; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Length X [mm]: 76.0; Width Y [mm]: 132.0; Height Z [mm]: 133.6; Moment Mx max. [Nm]: 10.4; Max. axial force Fz max. [N]: 800.0. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Angle of rotation [°] | 180 |
|---|---|
| Diameter of connecting hose | 6 x 3.9 x 1.05 |
| End position adjustability [°] | 3 |
| Fluid consumption (2x nom. angle) [cm³] | 60.0 |
| Height Z [mm] | 133.6 |
| IP protection class | 67 |
| Length X [mm] | 76.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 800.0 |
| Max. pressure fluid feed-through [bar] | 8.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mx max. [Nm] | 10.4 |
| No. of fluid feed-throughs | 4.0 |
| Nominal operating pressure [bar] | 6.0 |
| Repeat accuracy | 0.05 |
| Swivel time without a payload [s] | 0.5 |
| Torque [Nm] | 3.0 |
| Weight (Kg) | 2.1 |
| Width Y [mm] | 132.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 359243 |
| Product category | Rotary Actuators |
| Published specifications | 21 attributes listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 359243?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 359243?
359243 is made by Schunk and is listed in our Rotary Actuators category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 359243, and the quote confirms condition and lead time before you order.
Is the 359243 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 359243, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 359243?
No published lifecycle status is on file for 359243. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 359243?
Key specifications include Angle of rotation [°]: 180; Diameter of connecting hose: 6 x 3.9 x 1.05; End position adjustability [°]: 3; Fluid consumption (2x nom. angle) [cm³]: 60.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 359243 rated for?
Per the published specification for 359243: Max. ambient temperature [°C]: 60.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 359243 weigh?
Per the published specification for 359243: Weight (Kg): 2.1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 359243 ship?
Lead time for 359243 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk SRH-plus 20-W-M8
Schunk Schunk SRH-plus 20-W-M8-A
Schunk Schunk SRU 8.2-H-2-EX
Schunk Schunk SRH-plus 25-W-CB
Schunk Schunk SRU 8.2-H-EX

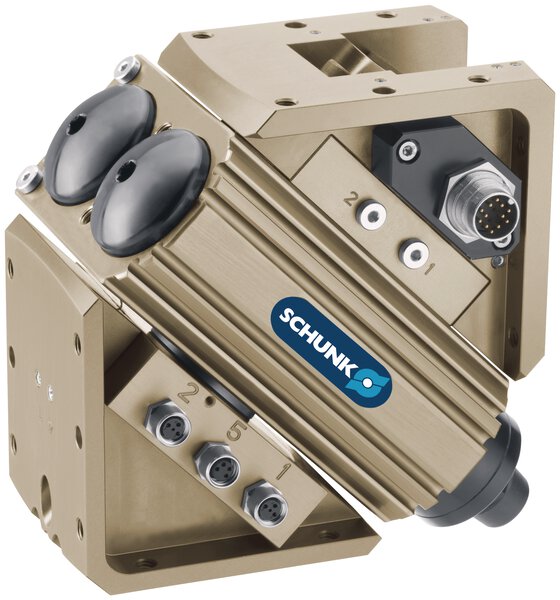

Schunk Schunk SRH-plus 25-H-M8
