Schunk SRH-plus 20-W-M8
| Angle of rotation [°] | 180 |
|---|---|
| Diameter of connecting hose | 6 x 3.9 x 1.05 |
| End position adjustability [°] | 3 |
| Fluid consumption (2x nom. angle) [cm³] | 60.0 |
| Height Z [mm] | 133.6 |
| IP protection class | 67 |
| Length X [mm] | 76.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 800.0 |
| Max. current [A] | 1.0 |
| Max. current per wire [A] | 1.0 |
| Max. pressure fluid feed-through [bar] | 8.0 |
| Max. voltage [V] | 24.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mx max. [Nm] | 10.4 |
| No. of E-fittings on the output end | 6.0 |
| No. of fluid feed-throughs | 4.0 |
| Nominal operating pressure [bar] | 6.0 |
| Repeat accuracy | 0.05 |
| Size of the E-connections on the output end | M8 |
| Swivel time without a payload [s] | 0.5 |
| Torque [Nm] | 3.0 |
| Weight (Kg) | 2.2 |
| Width Y [mm] | 132.0 |
Frequently Asked Questions
How do I get pricing for 359241?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 359241?
359241 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 359241?
Key specifications include Angle of rotation [°]: 180; Diameter of connecting hose: 6 x 3.9 x 1.05; End position adjustability [°]: 3; Fluid consumption (2x nom. angle) [cm³]: 60.0. The full specification table on this page lists every published attribute for this part.
How quickly can 359241 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SRH-plus 20-W-CB
Schunk Schunk SRU 8.2-H-2-EX

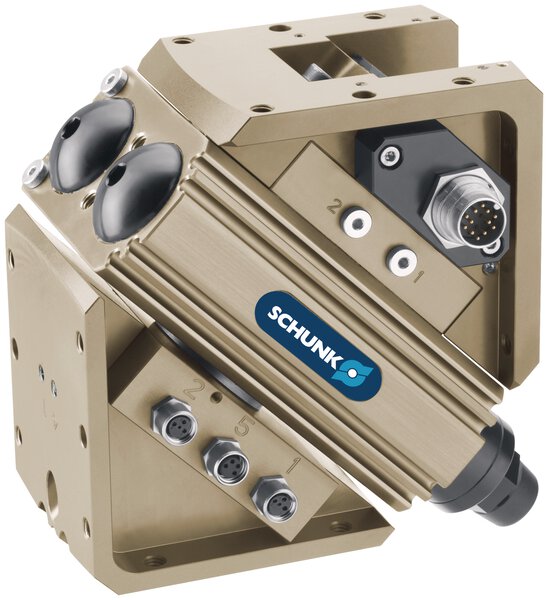

Schunk Schunk SRH-plus 20-W-M8-A

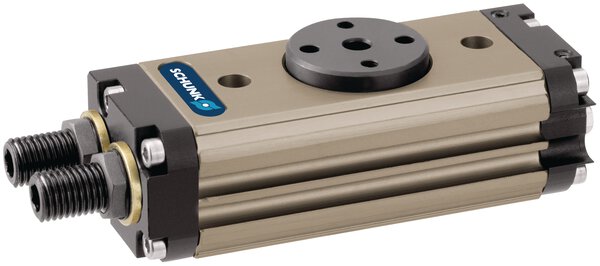

Schunk Schunk SRU 8.2-H-EX

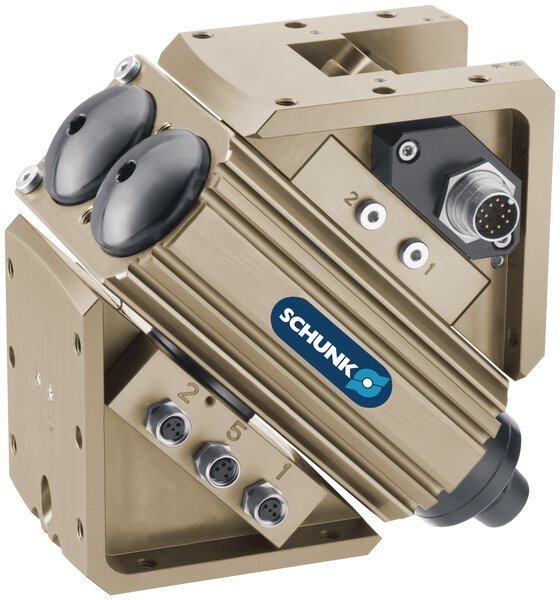

Schunk Schunk SRH-plus 25-W-CB
