Schunk GFS 16-90°-L
| Angle of rotation [°] | 90 |
|---|---|
| Diameter of connecting hose | 6 x 3.9 x 1.05 |
| Direction of rotation | left |
| End position adjustability [°] | 3 |
| End position damping | hydr. damper |
| Fluid consumption (2x nom. angle) [cm³] | 2.3 |
| Force Fy max. [N] | 350.0 |
| Height Z [mm] | 119.0 |
| IP protection class | 54 |
| Length X [mm] | 141.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mz max. [Nm] | 17.0 |
| Nominal operating pressure [bar] | 6.0 |
| Repeat accuracy | 0.07 |
| Swiveling time (1x nominal rotation angle) without attached load [s] | 0.3 |
| Torque [Nm] | 0.64 |
| Weight (Kg) | 0.69 |
| Width Y [mm] | 44.0 |
Frequently Asked Questions
How do I get pricing for 355498?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 355498?
355498 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 355498?
Key specifications include Angle of rotation [°]: 90; Diameter of connecting hose: 6 x 3.9 x 1.05; Direction of rotation: left; End position adjustability [°]: 3. The full specification table on this page lists every published attribute for this part.
How quickly can 355498 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

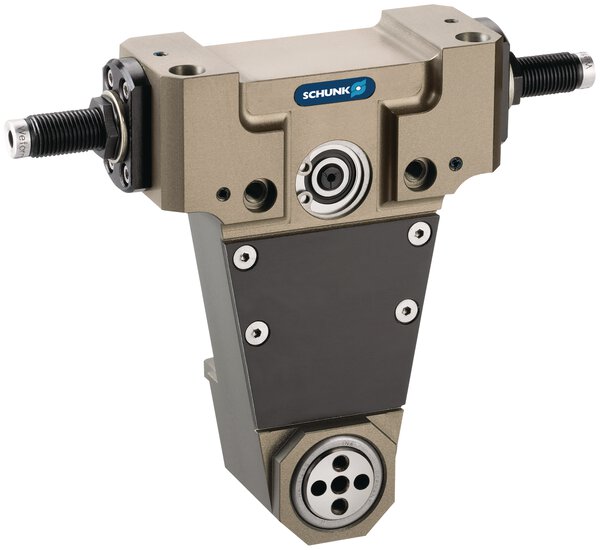

Schunk Schunk GFS 16-180°
Schunk Schunk GFS 16-90°-R
Schunk Schunk GFS 16-G

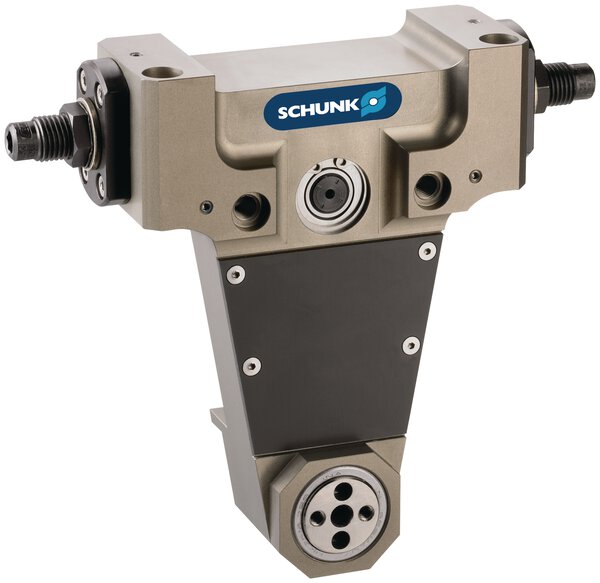

Schunk Schunk GFS 25-180°
