Schunk GFS 25-90°-R
Schunk 355512 - Rotary Actuators - Weight (Kg): 1.6; Repeat accuracy: 0.07; Torque [Nm]: 2.35.
In our catalog, the 355512 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 1.6 and Repeat accuracy: 0.07.
Published specifications for this part include Torque [Nm]: 2.35; Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 54; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Length X [mm]: 186.0; Width Y [mm]: 50.0; Height Z [mm]: 164.0; Moment Mz max. [Nm]: 55.0; Angle of rotation [°]: 90. The complete technical table is shown in the Specifications tab on this page.
| Angle of rotation [°] | 90 |
|---|---|
| Diameter of connecting hose | 6 x 3.9 x 1.05 |
| Direction of rotation | Right |
| End position adjustability [°] | 3 |
| End position damping | hydr. damper |
| Fluid consumption (2x nom. angle) [cm³] | 7.8 |
| Force Fy max. [N] | 1000.0 |
| Height Z [mm] | 164.0 |
| IP protection class | 54 |
| Length X [mm] | 186.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mz max. [Nm] | 55.0 |
| Nominal operating pressure [bar] | 6.0 |
| Repeat accuracy | 0.07 |
| Swiveling time (1x nominal rotation angle) without attached load [s] | 0.3 |
| Torque [Nm] | 2.35 |
| Weight (Kg) | 1.6 |
| Width Y [mm] | 50.0 |
Frequently Asked Questions
How do I get pricing for 355512?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 355512?
355512 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 355512?
Key specifications include Angle of rotation [°]: 90; Diameter of connecting hose: 6 x 3.9 x 1.05; Direction of rotation: Right; End position adjustability [°]: 3. The full specification table on this page lists every published attribute for this part.
How quickly can 355512 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

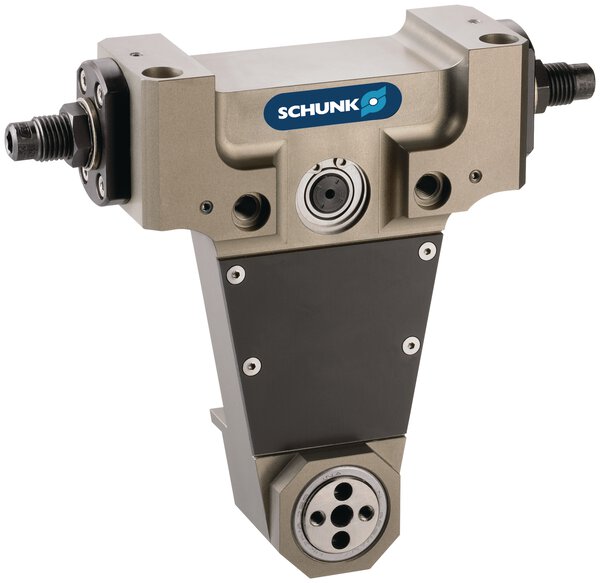

Schunk Schunk GFS 25-G
Schunk Schunk GFS 25-90°-L

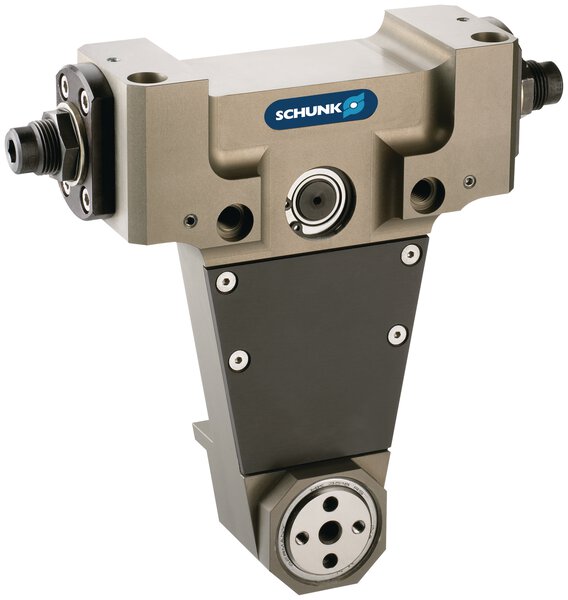

Schunk Schunk GFS 32-90°-L
