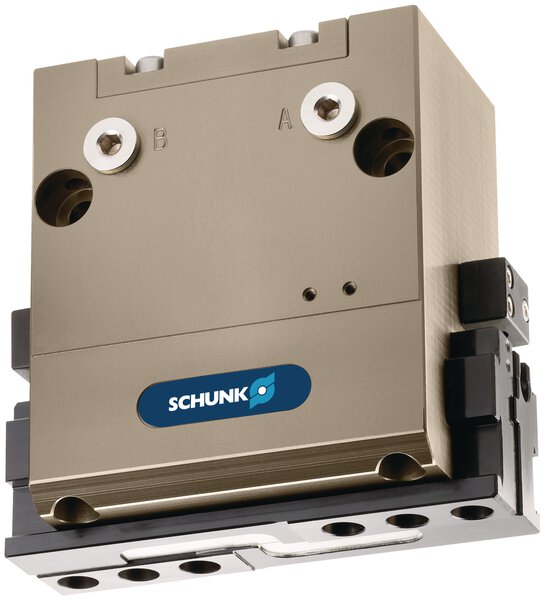

Schunk PGF 100
Schunk 340380 - Parallel gripper - Weight (Kg): 2.35; Max Operating Pressure (bar): 8.0; Stroke per jaw [mm]: 23.5.
This listing covers the Schunk 340380, a part number in the Parallel gripper category. The manufacturer's published data for this part number specifies Weight (Kg): 2.35 and Max Operating Pressure (bar): 8.0.
The specification set recorded for this part number covers Stroke per jaw [mm]: 23.5; Closing force [N]: 880.0; Closing force (with finger lengths of 0 mm) [N]: 875.0; Recommended workpiece weight [kg]: 4.4; Cylinder volume per double stroke [cm³]: 154.0; Min. operating pressure [bar]: 3.5; Nominal operating pressure [bar]: 6.0; Closing time [s]: 0.15; Opening time [s]: 0.15; Max. permissible finger length [mm]: 100.0; Max. permissible weight per finger [kg]: 1.4; IP protection class: 40. The complete technical table is shown in the Specifications tab on this page.
| Closing force (with finger lengths of 0 mm) [N] | 875.0 |
|---|---|
| Closing force [N] | 880.0 |
| Closing time [s] | 0.15 |
| Cylinder volume per double stroke [cm³] | 154.0 |
| Height Z [mm] | 121.0 |
| IP protection class | 40 |
| Length X [mm] | 148.5 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 1600.0 |
| Max. permissible finger length [mm] | 100.0 |
| Max. permissible weight per finger [kg] | 1.4 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.5 |
| Moment Mx max. [Nm] | 40.0 |
| Moment My max. [Nm] | 100.0 |
| Moment Mz max. [Nm] | 100.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening force (with finger lengths of 0 mm) [N] | 917.0 |
| Opening force [N] | 900.0 |
| Opening time [s] | 0.15 |
| Recommended workpiece weight [kg] | 4.4 |
| Repeat accuracy [mm] | 0.03 |
| Stroke per jaw [mm] | 23.5 |
| Weight (Kg) | 2.35 |
| Width Y [mm] | 64.0 |
Frequently Asked Questions
How do I get pricing for 340380?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 340380?
340380 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 340380?
Key specifications include Closing force (with finger lengths of 0 mm) [N]: 875.0; Closing force [N]: 880.0; Closing time [s]: 0.15; Cylinder volume per double stroke [cm³]: 154.0. The full specification table on this page lists every published attribute for this part.
How quickly can 340380 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk PGF 80-IS

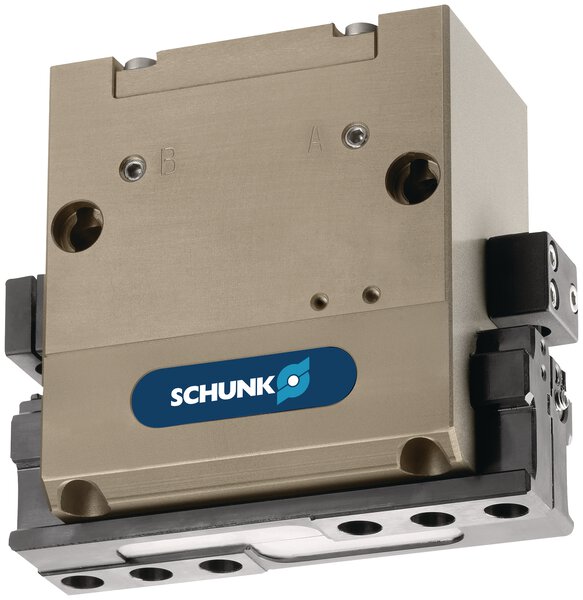

Schunk Schunk PGF 80-AS
