324784 — Schunk TCU-Z-080-3-MV
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 324784 - Compensation units - Weight (Kg): 0.25; Diameter D [mm]: 80.0; Max Operating Pressure (bar): 8.0.
Overview
Part number 324784 from Schunk. Specifications on file: Deflection X [°] ± 1; Deflection Y [°] ± 1; Deflection Z [°] ± 1; Diameter D [mm] 80.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
Schunk 324784 is a Compensation units catalog item from Schunk. The manufacturer's published data for this part number specifies Weight (Kg): 0.25 and Diameter D [mm]: 80.0.
The specification set recorded for this part number covers Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 4.0; Min. ambient temperature [°C]: -10.0; Max. ambient temperature [°C]: 90.0; Repeat accuracy [mm]: 0.05; Height Z [mm]: 24.1; Moment Mx max. [Nm]: 35.0; Moment My max. [Nm]: 35.0; Moment Mz max. [Nm]: 40.0; Locking: with locking; Direct connection to*: PZN-plus 80; Max. force Fd [N]: 1500.0. See the Specifications tab on this page for the full technical table.
Specifications
| Deflection X [°] | ± 1 |
|---|---|
| Deflection Y [°] | ± 1 |
| Deflection Z [°] | ± 1 |
| Diameter D [mm] | 80.0 |
| Direct connection to* | PZN-plus 80 |
| Hardness of the elastomer [Shore] | 68.0 |
| Height Z [mm] | 24.1 |
| Locking | with locking |
| Locking force Fz [N] | 100.0 |
| Locking moment Mx [Nm] | 5.0 |
| Locking moment My [Nm] | 5.0 |
| Locking moment Mz [Nm] | 6.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. force Fd [N] | 1500.0 |
| Min. ambient temperature [°C] | -10.0 |
| Min. operating pressure [bar] | 4.0 |
| Moment Mx max. [Nm] | 35.0 |
| Moment My max. [Nm] | 35.0 |
| Moment Mz max. [Nm] | 40.0 |
| Repeat accuracy [mm] | 0.05 |
| Weight (Kg) | 0.25 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 324784 |
| Published specifications | 22 attributes listed |
| Related part numbers | 11 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 324784?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 324784?
324784 is made by Schunk. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 324784, and the quote confirms condition and lead time before you order.
Is the 324784 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 324784, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 324784?
No published lifecycle status is on file for 324784. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 324784?
Key specifications include Deflection X [°]: ± 1; Deflection Y [°]: ± 1; Deflection Z [°]: ± 1; Diameter D [mm]: 80.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 324784 rated for?
Per the published specification for 324784: Max. ambient temperature [°C]: 90.0; Min. ambient temperature [°C]: -10.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 324784 weigh?
Per the published specification for 324784: Weight (Kg): 0.25. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 324784 ship?
Lead time for 324784 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk TCU-Z-064-3-OV

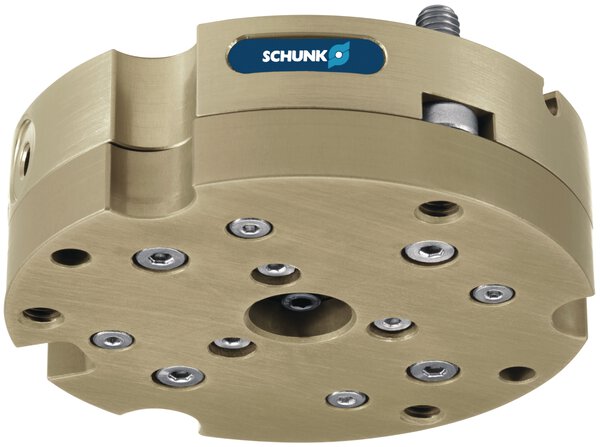

Schunk Schunk TCU-Z-080-3-OV

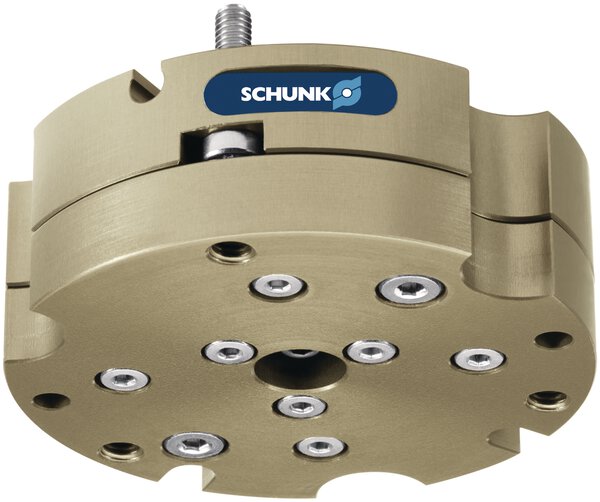

Schunk Schunk TCU-Z-064-3-MV

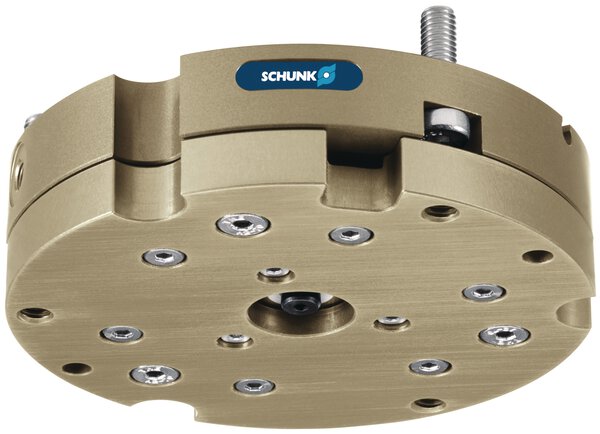

Schunk Schunk TCU-Z-100-2-MV

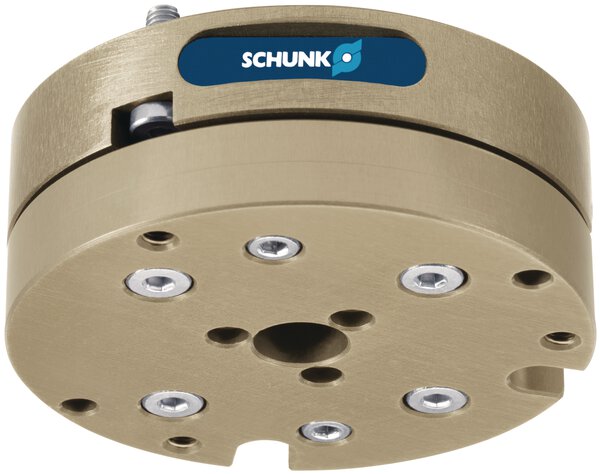

Schunk Schunk TCU-Z-050-3-OV
