Schunk AGE-S-XY-200-0
Schunk 324600 - Compensation units - Weight (Kg): 21.0; Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 2.5.
This listing covers the Schunk 324600, a part number in the Compensation units category. The manufacturer's published data for this part number specifies Weight (Kg): 21.0 and Max Operating Pressure (bar): 8.0.
Key manufacturer data on file for this item includes Min. operating pressure [bar]: 2.5; Nominal operating pressure [bar]: 6.0; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.1; Length X [mm]: 270.0; Width Y [mm]: 250.0; Height Z [mm]: 118.0; Moment Mx max. [Nm]: 500.0; Moment My max. [Nm]: 500.0; Moment Mz max. [Nm]: 250.0; Force Fz max. [N]: 2000.0. See the Specifications tab on this page for the full technical table.
| Compensation XY* [mm] | ± 12 |
|---|---|
| Force Fz max. [N] | 2000.0 |
| Height Z [mm] | 118.0 |
| Length X [mm] | 270.0 |
| Locking force [N] | 2700.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. force Fd [N] | 4000.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 2.5 |
| Moment Mx max. [Nm] | 500.0 |
| Moment My max. [Nm] | 500.0 |
| Moment Mz max. [Nm] | 250.0 |
| Nominal operating pressure [bar] | 6.0 |
| Recommended handling weight, horizontal [kg] | 100.0 |
| Recommended handling weight, vertical [kg] | 160.0 |
| Repeat accuracy [mm] | 0.1 |
| Robot-side connection | ISO 9409-1-200-6-M12 |
| Tool-side connection | ISO 9409-1-200-6-M12 |
| Weight (Kg) | 21.0 |
| Width Y [mm] | 250.0 |
Frequently Asked Questions
How do I get pricing for 324600?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 324600?
324600 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 324600?
Key specifications include Compensation XY* [mm]: ± 12; Force Fz max. [N]: 2000.0; Height Z [mm]: 118.0; Length X [mm]: 270.0. The full specification table on this page lists every published attribute for this part.
How quickly can 324600 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

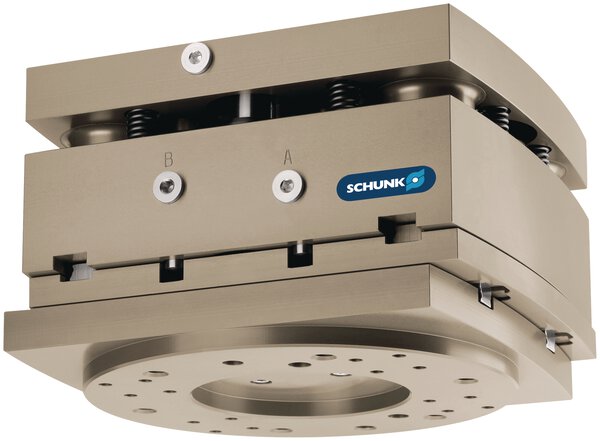

Schunk Schunk AGE-S-XY-160-P
Schunk Schunk AGE-S-XY-200-P
Schunk Schunk AGE-S-XY-160-0

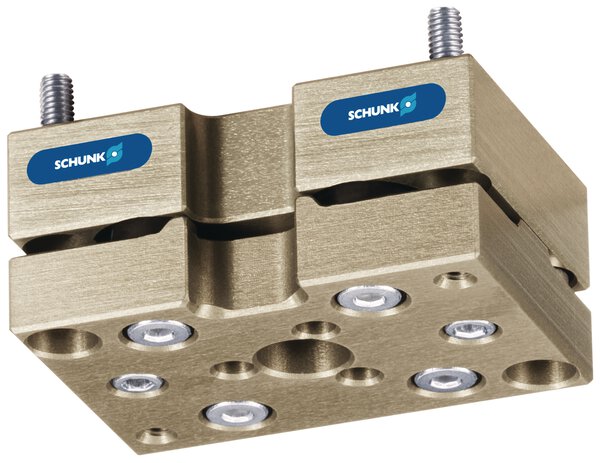

Schunk Schunk TCU-P-050-3-OV

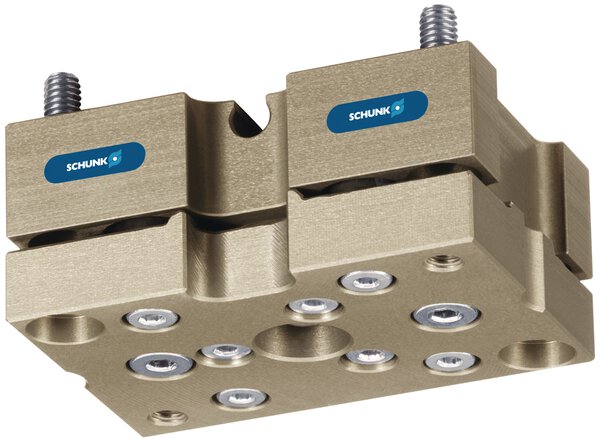

Schunk Schunk TCU-P-064-3-MV
