Schunk OPR-081-P00
| Angular deflection [°] | ± 13 |
|---|---|
| Axial deflection [mm] | 8.6 |
| Deflection rotatory [°] | ± 25 |
| Diameter D [mm] | 80.0 |
| Height Z [mm] | 55.4 |
| Max Operating Pressure (bar) | 6.2 |
| Max. ambient temperature [°C] | 60.0 |
| Max. force Fd [N] | 1700.0 |
| Max. supply voltage [V] | 30.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 1.4 |
| Min. supply voltage [V] | 10.0 |
| Min. triggering force, axial Fd [N] | 382.0 |
| Min. triggering moment, angular Mx, My [Nm] | 14.0 |
| Min. triggering torque, rotatory Mz [Nm] | 14.0 |
| Moment Mx max. [Nm] | 59.0 |
| Moment My max. [Nm] | 59.0 |
| Moment Mz max. [Nm] | 61.0 |
| Repeat accuracy [mm] | ± 0.025 |
| Repeat accuracy, rotary [min] | 5.0 |
| Responsiveness [mm] | 0.5 |
| Weight (Kg) | 0.58 |
Frequently Asked Questions
How do I get pricing for 321381?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 321381?
321381 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 321381?
Key specifications include Angular deflection [°]: ± 13; Axial deflection [mm]: 8.6; Deflection rotatory [°]: ± 25; Diameter D [mm]: 80.0. The full specification table on this page lists every published attribute for this part.
How quickly can 321381 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk OPR-081-P05
Schunk Schunk OPR-061-P15
Schunk Schunk OPR-061-P10

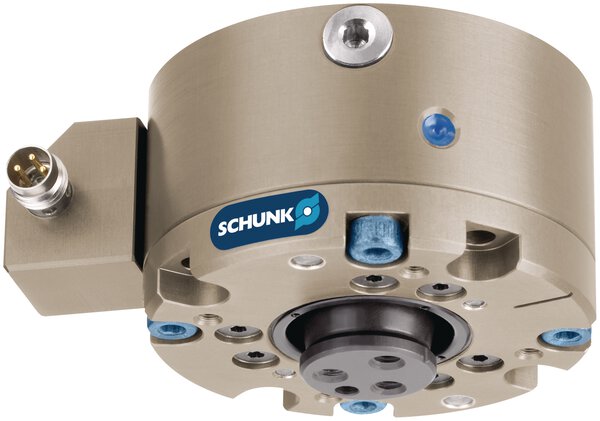

Schunk Schunk OPR-061-P05
