314053 — Schunk LM 50-H013
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 314053 - Linear axes - Overall Length (mm): 150.0; Weight (Kg): 0.88; Max Operating Pressure (bar): 8.0.
Overview
Part number 314053 from Schunk, listed in Linear Motion. Specifications on file: Bar diameter [mm] 6.0; Cleanroom class ISO 14644-1 1999; Clearance N (for moment load) [mm] 35.0; Cylinder volume/10 mm per double stroke [cm³] 2.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
Schunk 314053 is a Linear axes catalog item from Schunk. The manufacturer's published data for this part number specifies Overall Length (mm): 150.0 and Weight (Kg): 0.88.
The specification set recorded for this part number covers Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.02; Cleanroom class ISO 14644-1: 1999; Length X [mm]: 150.0; Width Y [mm]: 45.0; Height Z [mm]: 45.0; Moment Mx max. [Nm]: 10.5. See the Specifications tab on this page for the full technical table.
Specifications
| Bar diameter [mm] | 6.0 |
|---|---|
| Cleanroom class ISO 14644-1 | 1999 |
| Clearance N (for moment load) [mm] | 35.0 |
| Cylinder volume/10 mm per double stroke [cm³] | 2.0 |
| Drive concept | Piston rod cylinders |
| extend force [N] | 120.0 |
| Height Z [mm] | 45.0 |
| IP protection class | 40 |
| Length X [mm] | 150.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 806.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mx max. [Nm] | 10.5 |
| Moment My max. [Nm] | 11.6 |
| Moment Mz max. [Nm] | 5.8 |
| Nominal operating pressure [bar] | 6.0 |
| Overall Length (mm) | 150.0 |
| Piston diameter [mm] | 16.0 |
| Repeat accuracy [mm] | 0.02 |
| retracted force [N] | 103.0 |
| Stroke [mm] | 13.0 |
| Weight (Kg) | 0.88 |
| Width Y [mm] | 45.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 314053 |
| Product category | Linear Motion |
| Published specifications | 25 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 314053?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 314053?
314053 is made by Schunk and is listed in our Linear Motion category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 314053, and the quote confirms condition and lead time before you order.
Is the 314053 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 314053, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 314053?
No published lifecycle status is on file for 314053. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 314053?
Key specifications include Bar diameter [mm]: 6.0; Cleanroom class ISO 14644-1: 1999; Clearance N (for moment load) [mm]: 35.0; Cylinder volume/10 mm per double stroke [cm³]: 2.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 314053 rated for?
Per the published specification for 314053: Max. ambient temperature [°C]: 60.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 314053 weigh?
Per the published specification for 314053: Weight (Kg): 0.88. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 314053 ship?
Lead time for 314053 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products

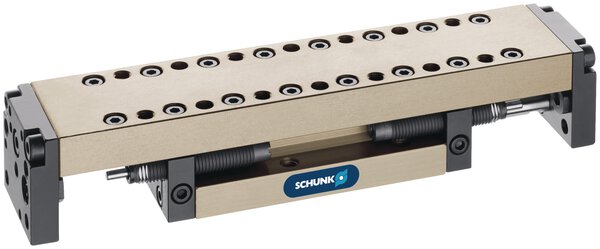

Schunk Schunk LM 25-H059
Schunk Schunk LM 50-H025
Schunk Schunk LM 25-H042
Schunk Schunk LM 50-H038
Schunk Schunk LM 25-H025

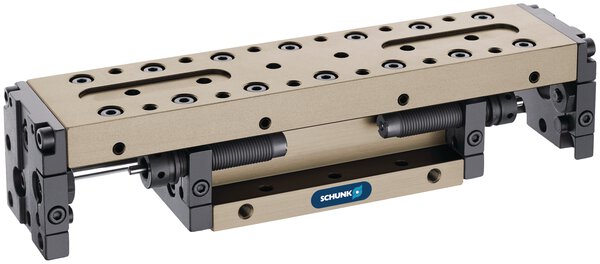

Schunk Schunk LM 50-H050
