Schunk CLM 10-H034
Schunk 314006 - Linear axes - Overall Length (mm): 95.0; Weight (Kg): 0.165; Max Operating Pressure (bar): 8.0.
The Schunk 314006 is part of the Linear axes range in our industrial catalog. The manufacturer's published data for this part number specifies Overall Length (mm): 95.0 and Weight (Kg): 0.165.
The specification set recorded for this part number covers Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.01; Length X [mm]: 95.0; Width Y [mm]: 30.0; Height Z [mm]: 25.0; Moment Mx max. [Nm]: 2.18; Moment My max. [Nm]: 2.51. See the Specifications tab on this page for the full technical table.
| Bar diameter [mm] | 4.0 |
|---|---|
| Clearance N (for moment load) [mm] | 17.1 |
| Cylinder volume/10 mm per double stroke [cm³] | 0.78 |
| Drive concept | Piston rod cylinders |
| extend force [N] | 47.0 |
| Height Z [mm] | 25.0 |
| IP protection class | 40 |
| Length X [mm] | 95.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 91.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mx max. [Nm] | 2.18 |
| Moment My max. [Nm] | 2.51 |
| Moment Mz max. [Nm] | 1.25 |
| Nominal operating pressure [bar] | 6.0 |
| Overall Length (mm) | 95.0 |
| Piston diameter [mm] | 10.0 |
| Repeat accuracy [mm] | 0.01 |
| retracted force [N] | 39.0 |
| Stroke [mm] | 34.0 |
| Weight (Kg) | 0.165 |
| Width Y [mm] | 30.0 |
Frequently Asked Questions
How do I get pricing for 314006?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 314006?
314006 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 314006?
Key specifications include Bar diameter [mm]: 4.0; Clearance N (for moment load) [mm]: 17.1; Cylinder volume/10 mm per double stroke [cm³]: 0.78; Drive concept: Piston rod cylinders. The full specification table on this page lists every published attribute for this part.
How quickly can 314006 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk CLM 10-H020
Schunk Schunk CLM 10-H048
Schunk Schunk KLM 25-H025

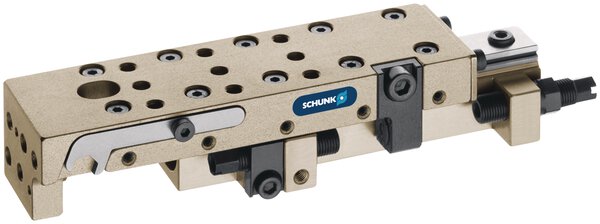

Schunk Schunk CLM 08-H042
