Schunk GSW-V25-SND125
| Diameter D [mm] | 135.0 |
|---|---|
| Height Z [mm] | 138.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. operating pressure of the compressed air [bar] | 8.0 |
| Max. operating pressure of the coolant [bar] | 60.0 |
| Max. permissible RPM [1/min] | 20.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. flow rate compressed air [l/min] | 200.0 |
| Min. operating pressure coolant [bar] | 20.0 |
| Min. vacuum [bar] | -0.6 |
| Minimum operating pressure compressed air [bar] | 4.0 |
| Noise pressure level [dB(A)] | 94.0 |
| Nominal flow rate compressed air [l/min] | 300.0 |
| Nominal flow rate coolant [l/min] | 25.0 |
| Nominal operating pressure compressed air [bar] | 6.0 |
| Nominal operating pressure coolant [bar] | 40.0 |
| Nominal vaccuum [bar] | -0.8 |
| Suction force [N] | 980.0 |
| Time evacuation [s] | 1.2 |
| Time for putting down [s] | 0.7 |
| Weight (Kg) | 0.31 |
Frequently Asked Questions
How do I get pricing for 309128?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 309128?
309128 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 309128?
Key specifications include Diameter D [mm]: 135.0; Height Z [mm]: 138.0; Max. ambient temperature [°C]: 90.0; Max. operating pressure of the compressed air [bar]: 8.0. The full specification table on this page lists every published attribute for this part.
How quickly can 309128 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk GSW-V25-SND080
Schunk Schunk GSW-V32

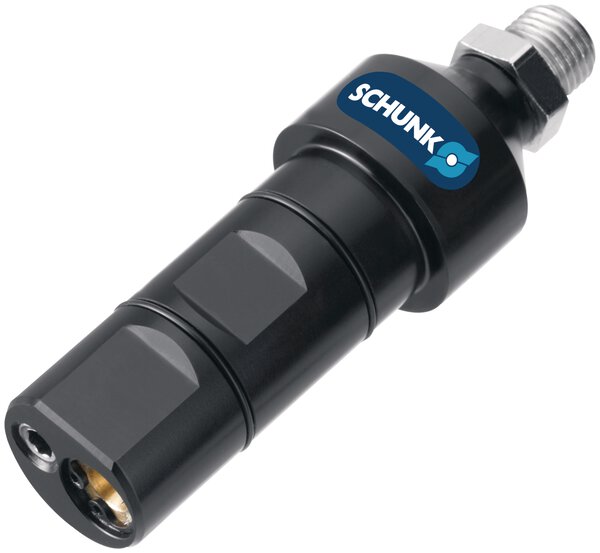

Schunk Schunk GSW-V25-SND030

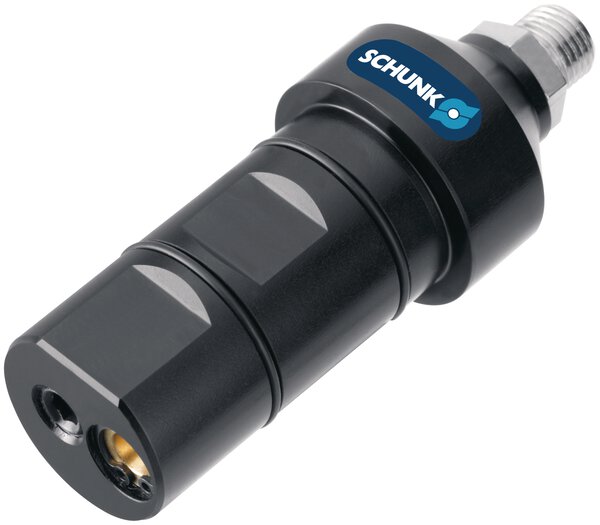

Schunk Schunk GSW-V32-SND030
