Schunk PFH 30-AS
| Closing force (with finger lengths of 0 mm) [N] | 993.0 |
|---|---|
| Closing force [N] | 720.0 |
| Closing time [s] | 0.35 |
| Closing/opening time with spring [s] | 0.4 |
| Cylinder volume per double stroke [cm³] | 95.0 |
| Height Z [mm] | 67.8 |
| IP protection class | 41 |
| Length X [mm] | 124.0 |
| Max Operating Pressure (bar) | 6.5 |
| Max. air purge pressure [bar] | 1.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 1000.0 |
| Max. permissible finger length [mm] | 100.0 |
| Max. permissible weight per finger [kg] | 2.0 |
| Min. air purge pressure [bar] | 0.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 5.0 |
| Min. spring force [N] | 90.0 |
| Moment Mx max. [Nm] | 30.0 |
| Moment My max. [Nm] | 95.0 |
| Moment Mz max. [Nm] | 45.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening time [s] | 0.35 |
| Recommended workpiece weight [kg] | 3.15 |
| Repeat accuracy [mm] | 0.05 |
| Stroke per jaw [mm] | 30.0 |
| Weight (Kg) | 2.7 |
| Width Y [mm] | 94.0 |
Frequently Asked Questions
How do I get pricing for 302031?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 302031?
302031 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 302031?
Key specifications include Closing force (with finger lengths of 0 mm) [N]: 993.0; Closing force [N]: 720.0; Closing time [s]: 0.35; Closing/opening time with spring [s]: 0.4. The full specification table on this page lists every published attribute for this part.
How quickly can 302031 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

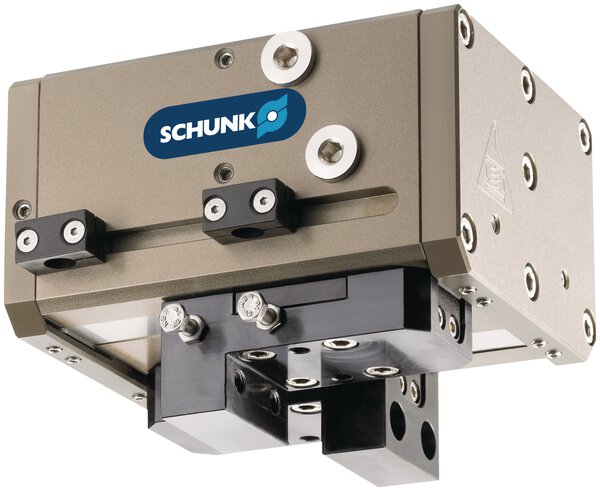

Schunk Schunk PFH 30
Schunk Schunk PFH 30-60

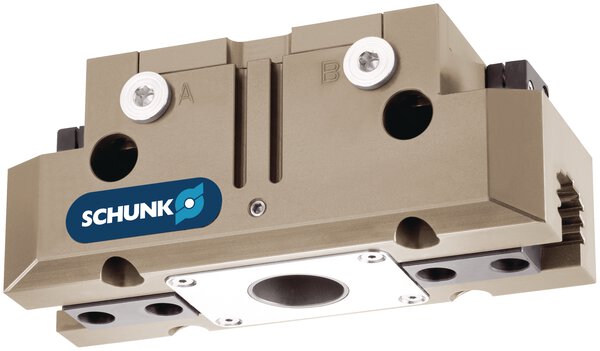

Schunk Schunk PGB 125

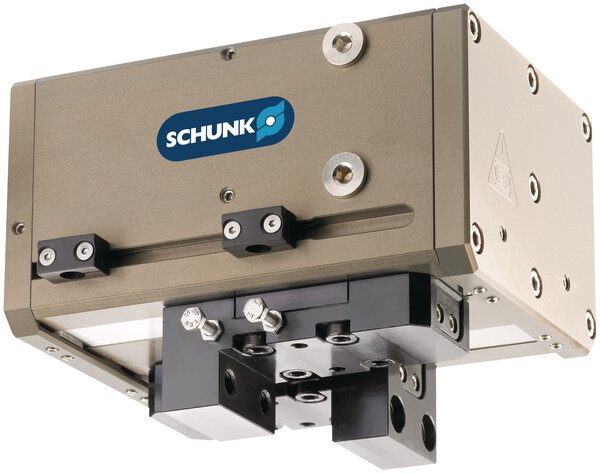

Schunk Schunk PFH 40
