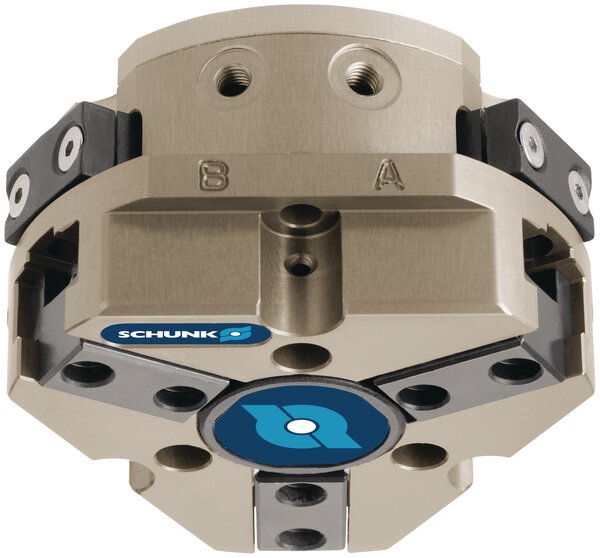

Schunk JGZ 50-1-AS
Schunk 308911 - Centric Grippers - Weight (Kg): 0.3; Diameter D [mm]: 64.0; Max Operating Pressure (bar): 6.5.
Schunk 308911 is a Centric Grippers catalog item from Schunk. The manufacturer's published data for this part number specifies Weight (Kg): 0.3 and Diameter D [mm]: 64.0.
Key manufacturer data on file for this item includes Max Operating Pressure (bar): 6.5; Stroke per jaw [mm]: 4.0; Closing force [N]: 445.0; Closing force (with finger lengths of 0 mm) [N]: 531.0; Min. spring force [N]: 120.0; Recommended workpiece weight [kg]: 1.6; Cylinder volume per double stroke [cm³]: 18.0; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; Min. air purge pressure [bar]: 0.5; Max. air purge pressure [bar]: 1.0; Closing time [s]: 0.02. The complete technical table is shown in the Specifications tab on this page.
| Closing force (with finger lengths of 0 mm) [N] | 531.0 |
|---|---|
| Closing force [N] | 445.0 |
| Closing time [s] | 0.02 |
| Closing/opening time with spring [s] | 0.05 |
| Cylinder volume per double stroke [cm³] | 18.0 |
| Diameter D [mm] | 64.0 |
| Height Z [mm] | 44.5 |
| IP protection class | 40 |
| Max Operating Pressure (bar) | 6.5 |
| Max. air purge pressure [bar] | 1.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 400.0 |
| Max. permissible finger length [mm] | 58.0 |
| Max. permissible weight per finger [kg] | 0.18 |
| Min. air purge pressure [bar] | 0.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Min. spring force [N] | 120.0 |
| Moment Mx max. [Nm] | 16.0 |
| Moment My max. [Nm] | 20.0 |
| Moment Mz max. [Nm] | 8.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening time [s] | 0.04 |
| Recommended workpiece weight [kg] | 1.6 |
| Repeat accuracy [mm] | 0.01 |
| Stroke per jaw [mm] | 4.0 |
| Weight (Kg) | 0.3 |
