Schunk JGZ 40-AS
Schunk 308901 - Centric Grippers - Weight (Kg): 0.15; Diameter D [mm]: 51.0; Max Operating Pressure (bar): 6.5.
The Schunk 308901 is part of the Centric Grippers range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.15 and Diameter D [mm]: 51.0.
The specification set recorded for this part number covers Max Operating Pressure (bar): 6.5; Stroke per jaw [mm]: 2.5; Closing force [N]: 355.0; Closing force (with finger lengths of 0 mm) [N]: 420.0; Min. spring force [N]: 100.0; Recommended workpiece weight [kg]: 1.25; Cylinder volume per double stroke [cm³]: 9.0; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; Min. air purge pressure [bar]: 0.5; Max. air purge pressure [bar]: 1.0; Closing time [s]: 0.02. The complete technical table is shown in the Specifications tab on this page.
| Closing force (with finger lengths of 0 mm) [N] | 420.0 |
|---|---|
| Closing force [N] | 355.0 |
| Closing time [s] | 0.02 |
| Closing/opening time with spring [s] | 0.05 |
| Cylinder volume per double stroke [cm³] | 9.0 |
| Diameter D [mm] | 51.0 |
| Height Z [mm] | 35.2 |
| IP protection class | 40 |
| Max Operating Pressure (bar) | 6.5 |
| Max. air purge pressure [bar] | 1.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 200.0 |
| Max. permissible finger length [mm] | 45.0 |
| Max. permissible weight per finger [kg] | 0.1 |
| Min. air purge pressure [bar] | 0.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Min. spring force [N] | 100.0 |
| Moment Mx max. [Nm] | 8.0 |
| Moment My max. [Nm] | 10.0 |
| Moment Mz max. [Nm] | 4.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening time [s] | 0.04 |
| Recommended workpiece weight [kg] | 1.25 |
| Repeat accuracy [mm] | 0.01 |
| Stroke per jaw [mm] | 2.5 |
| Weight (Kg) | 0.15 |
Frequently Asked Questions
How do I get pricing for 308901?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 308901?
308901 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 308901?
Key specifications include Closing force (with finger lengths of 0 mm) [N]: 420.0; Closing force [N]: 355.0; Closing time [s]: 0.02; Closing/opening time with spring [s]: 0.05. The full specification table on this page lists every published attribute for this part.
How quickly can 308901 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk JGZ 40

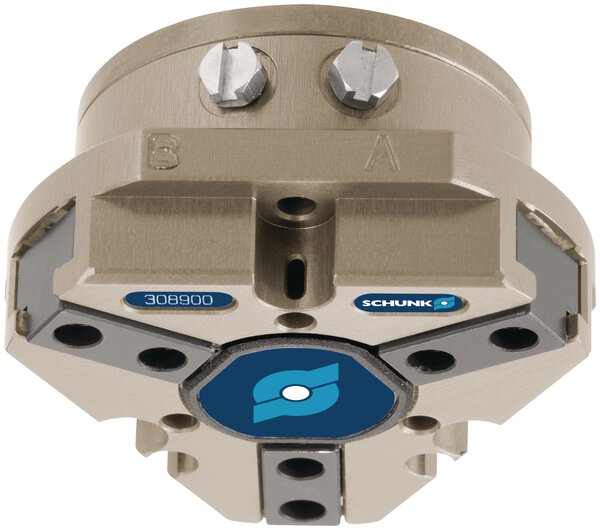

Schunk Schunk JGZ 40-IS

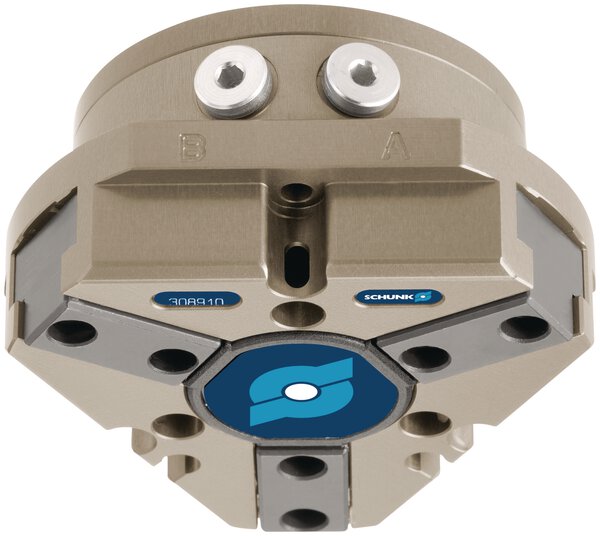

Schunk Schunk JGZ 50-1
