306870 — Schunk PRH 050-050-PB-54
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 306870 - Rotary Actuators - Interface: PROFIBUS, USB (parameterization); Number of digital inputs: 4.0; Number of digital outputs: 0.0.
Overview
Part number 306870 from Schunk, listed in Rotary Actuators. Specifications on file: Axial run-out [mm] 0.01; Control electronics integrated; Encoder system Encoder (incremental); Force Fx max. [N] 200.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the 306870 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Interface: PROFIBUS, USB (parameterization) and Number of digital inputs: 4.0.
Published specifications for this part include Number of digital outputs: 0.0; Weight (Kg): 0.75; Repeat accuracy: 0.004; IP protection class: 54; Min. ambient temperature [°C]: 0.0; Max. ambient temperature [°C]: 40.0; Length X [mm]: 117.5; Width Y [mm]: 67.0; Height Z [mm]: 64.0; Moment My max. [Nm]: 15.0; Nominal torque [Nm]: 1.5; Nominal voltage [V]: 24.0. See the Specifications tab on this page for the full technical table.
Specifications
| Axial run-out [mm] | 0.01 |
|---|---|
| Control electronics | integrated |
| Encoder system | Encoder (incremental) |
| Force Fx max. [N] | 200.0 |
| Force Fz max. [N] | 200.0 |
| Height Z [mm] | 64.0 |
| Interface | PROFIBUS, USB (parameterization) |
| IP protection class | 54 |
| Length X [mm] | 117.5 |
| Max. ambient temperature [°C] | 40.0 |
| Max. current [A] | 3.3 |
| Max. permissible mass moment of inertia [kgm²] | 0.015 |
| Max. rotational speed [1/min] | 120.0 |
| Min. ambient temperature [°C] | 0.0 |
| Moment My max. [Nm] | 15.0 |
| Nominal current [A] | 1.7 |
| Nominal speed [1/min] | 70.0 |
| Nominal torque [Nm] | 1.5 |
| Nominal voltage [V] | 24.0 |
| Number of digital inputs | 4.0 |
| Number of digital outputs | 0.0 |
| Peak torque [Nm] | 3.3 |
| Power supply [V] | 24.0 |
| PROFIBUS interface [Mbit/s] | 12.0 |
| Repeat accuracy | 0.004 |
| Run-out accuracy [mm] | 0.01 |
| Transmission | 50:1 |
| USB interface | Device |
| Width Y [mm] | 67.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 306870 |
| Product category | Rotary Actuators |
| Published specifications | 29 attributes listed |
| Related part numbers | 8 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 306870?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 306870?
306870 is made by Schunk and is listed in our Rotary Actuators category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 306870, and the quote confirms condition and lead time before you order.
Is the 306870 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 306870, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 306870?
No published lifecycle status is on file for 306870. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 306870?
Key specifications include Axial run-out [mm]: 0.01; Control electronics: integrated; Encoder system: Encoder (incremental); Force Fx max. [N]: 200.0. The full specification table on this page lists every published attribute for this part.
What voltage does 306870 use?
Per the published specification for 306870: Nominal voltage [V]: 24.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 306870 rated for?
Per the published specification for 306870: Max. ambient temperature [°C]: 40.0; Min. ambient temperature [°C]: 0.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 306870 ship?
Lead time for 306870 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk PRH 050-030-PB-54
Schunk Schunk PRH 050-100-PB-54
Schunk Schunk PRH 060-050-PB-65
Schunk Schunk PRH 060-030-PB-65
Schunk Schunk PRH 060-100-PB-65

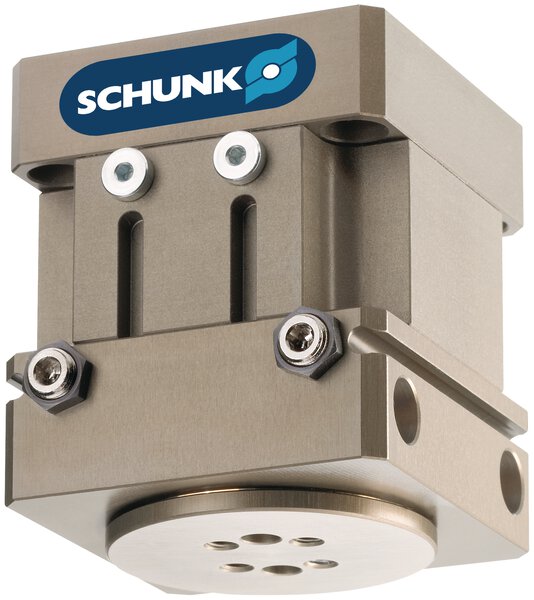

Schunk Schunk SFL-64-S-090
