Schunk SWK-001-000-000

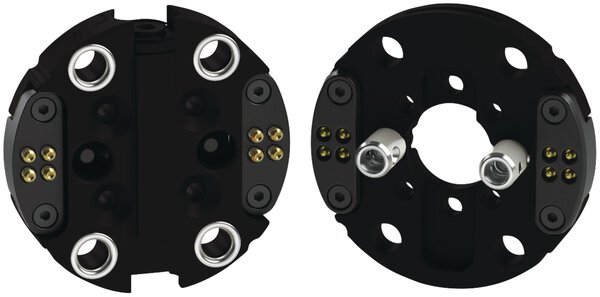

Schunk 302290 - Tool changer - Weight (Kg): 0.03; Diameter D [mm]: 45.0; Max Operating Pressure (bar): 6.9.
In our catalog, the 302290 from Schunk is listed under the Tool changer category. The manufacturer's published data for this part number specifies Weight (Kg): 0.03 and Diameter D [mm]: 45.0.
Published specifications for this part include Max Operating Pressure (bar): 6.9; Min. operating pressure [bar]: 4.5; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.01; Height Z [mm]: 10.9; Moment Mx max. [Nm]: 2.8; Moment My max. [Nm]: 2.8; Moment Mz max. [Nm]: 3.45; Screw connection diagram: S1; Recommended handling weight [kg]: 1.4; Max. distance when locking [mm]: 1.0. See the Specifications tab on this page for the full technical table.
| Air connection thread pneumatic feed-through | 4x M5 |
|---|---|
| Diameter D [mm] | 45.0 |
| Height Z [mm] | 10.9 |
| Lock/unlock main connection | M3 |
| Locking force [N] | 170.0 |
| Max Operating Pressure (bar) | 6.9 |
| Max. ambient temperature [°C] | 60.0 |
| Max. distance when locking [mm] | 1.0 |
| Max. permissible angular offset [°] | ± 0.8 |
| Max. permissible XY axis offset [mm] | ± 0.3 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.5 |
| Moment Mx max. [Nm] | 2.8 |
| Moment My max. [Nm] | 2.8 |
| Moment Mz max. [Nm] | 3.45 |
| Recommended handling weight [kg] | 1.4 |
| Repeat accuracy [mm] | 0.01 |
| Screw connection diagram | S1 |
| Weight (Kg) | 0.03 |
Frequently Asked Questions
How do I get pricing for 302290?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 302290?
302290 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 302290?
Key specifications include Air connection thread pneumatic feed-through: 4x M5; Diameter D [mm]: 45.0; Height Z [mm]: 10.9; Lock/unlock main connection: M3. The full specification table on this page lists every published attribute for this part.
How quickly can 302290 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
