Schunk SWK-020-000-000
Schunk 302322 - Tool changer - Weight (Kg): 0.54; Diameter D [mm]: 90.0; Max Operating Pressure (bar): 6.9.
The Schunk 302322 is part of the Tool changer range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.54 and Diameter D [mm]: 90.0.
The specification set recorded for this part number covers Max Operating Pressure (bar): 6.9; Min. operating pressure [bar]: 4.5; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.015; Height Z [mm]: 18.7; Moment Mx max. [Nm]: 169.5; Moment My max. [Nm]: 169.5; Moment Mz max. [Nm]: 105.0; Screw connection diagram: K; Recommended handling weight [kg]: 25.0; Max. distance when locking [mm]: 2.0. The complete technical table is shown in the Specifications tab on this page.
| Air connection thread pneumatic feed-through | 12x M5 |
|---|---|
| Diameter D [mm] | 90.0 |
| Height Z [mm] | 18.7 |
| Lock/unlock main connection | M5 |
| Locking force [N] | 2300.0 |
| Max Operating Pressure (bar) | 6.9 |
| Max. ambient temperature [°C] | 60.0 |
| Max. distance when locking [mm] | 2.0 |
| Max. permissible angular offset [°] | ± 2 |
| Max. permissible XY axis offset [mm] | ± 1 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.5 |
| Moment Mx max. [Nm] | 169.5 |
| Moment My max. [Nm] | 169.5 |
| Moment Mz max. [Nm] | 105.0 |
| Piston stroke monitoring | optional |
| Recommended handling weight [kg] | 25.0 |
| Repeat accuracy [mm] | 0.015 |
| Screw connection diagram | K |
| Weight (Kg) | 0.54 |
Frequently Asked Questions
How do I get pricing for 302322?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 302322?
302322 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 302322?
Key specifications include Air connection thread pneumatic feed-through: 12x M5; Diameter D [mm]: 90.0; Height Z [mm]: 18.7; Lock/unlock main connection: M5. The full specification table on this page lists every published attribute for this part.
How quickly can 302322 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SWA-011-000-000

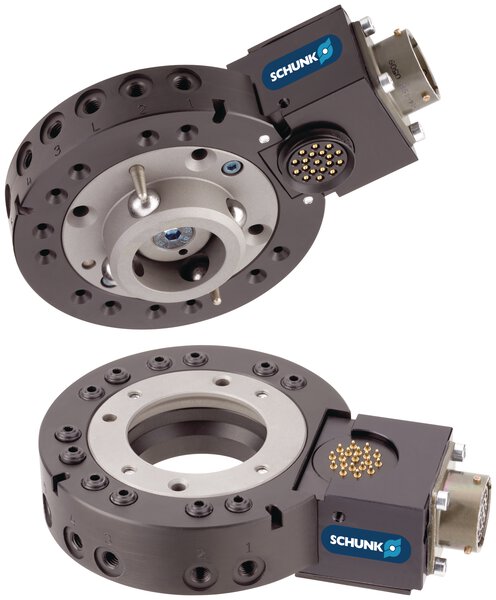

Schunk Schunk SWA-020-000-000

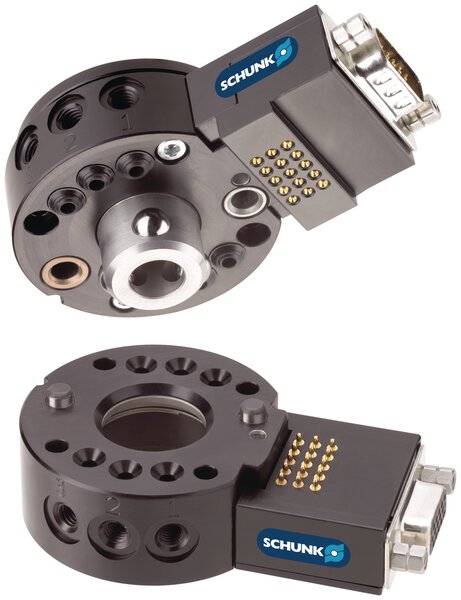

Schunk Schunk SWK-011-000-000
Schunk Schunk SWA-001-E04-E04

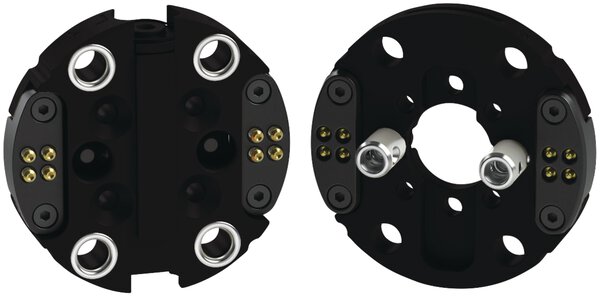

Schunk Schunk SWK-001-E04-E04
