Schunk SPG 100
Schunk 302121 - Parallel gripper - Weight (Kg): 35.0; Max Operating Pressure (bar): 8.0; Stroke per jaw [mm]: 100.0.
The Schunk 302121 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 35.0 and Max Operating Pressure (bar): 8.0.
Published specifications for this part include Stroke per jaw [mm]: 100.0; Closing force [N]: 10000.0; Closing force (with finger lengths of 0 mm) [N]: 10920.0; Recommended workpiece weight [kg]: 50.0; Cylinder volume per double stroke [cm³]: 4600.0; Min. operating pressure [bar]: 2.0; Nominal operating pressure [bar]: 6.0; Min. air purge pressure [bar]: 0.5; Max. air purge pressure [bar]: 1.0; Closing time [s]: 1.5; Opening time [s]: 1.5; Max. permissible finger length [mm]: 500.0. See the Specifications tab on this page for the full technical table.
| Closing force (with finger lengths of 0 mm) [N] | 10920.0 |
|---|---|
| Closing force [N] | 10000.0 |
| Closing time [s] | 1.5 |
| Cylinder volume per double stroke [cm³] | 4600.0 |
| Height Z [mm] | 191.9 |
| IP protection class | 30 |
| Length X [mm] | 436.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. air purge pressure [bar] | 1.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 6000.0 |
| Max. permissible finger length [mm] | 500.0 |
| Max. permissible weight per finger [kg] | 15.0 |
| Min. air purge pressure [bar] | 0.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 2.0 |
| Moment Mx max. [Nm] | 250.0 |
| Moment My max. [Nm] | 300.0 |
| Moment Mz max. [Nm] | 250.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening force (with finger lengths of 0 mm) [N] | 12536.0 |
| Opening force [N] | 11480.0 |
| Opening time [s] | 1.5 |
| Recommended workpiece weight [kg] | 50.0 |
| Repeat accuracy [mm] | 0.1 |
| Stroke per jaw [mm] | 100.0 |
| Weight (Kg) | 35.0 |
| Width Y [mm] | 196.0 |
Frequently Asked Questions
How do I get pricing for 302121?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 302121?
302121 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 302121?
Key specifications include Closing force (with finger lengths of 0 mm) [N]: 10920.0; Closing force [N]: 10000.0; Closing time [s]: 1.5; Cylinder volume per double stroke [cm³]: 4600.0. The full specification table on this page lists every published attribute for this part.
How quickly can 302121 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

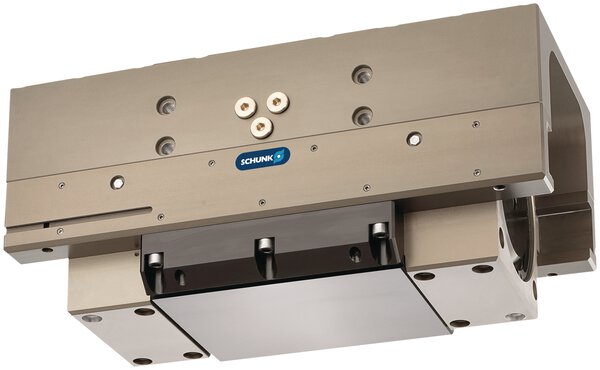

Schunk Schunk SPG 100-SDV-P

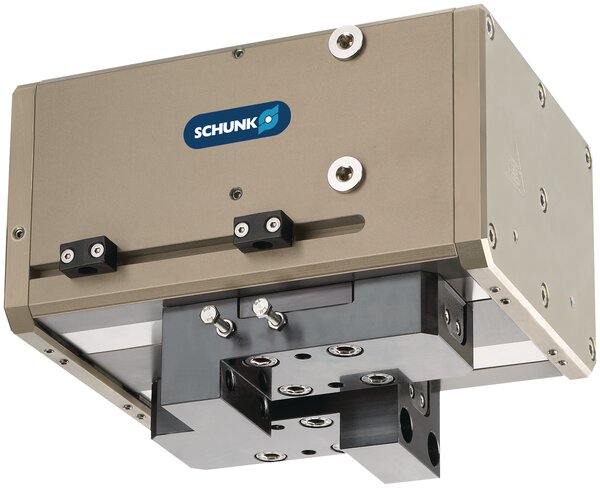

Schunk Schunk PFH 50-100
