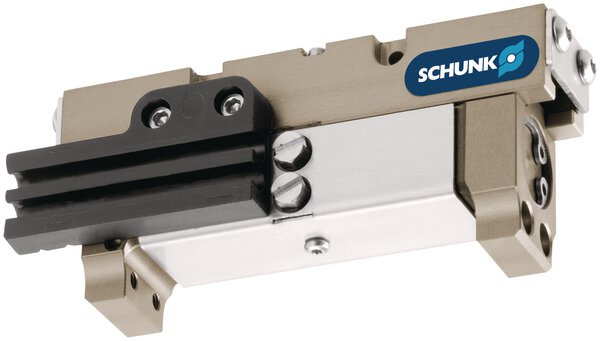

Schunk KGG 60-20
Schunk 303075 - Parallel gripper - Weight (Kg): 0.09; Max Operating Pressure (bar): 8.0; Stroke per jaw [mm]: 10.0.
The Schunk 303075 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.09 and Max Operating Pressure (bar): 8.0.
Key manufacturer data on file for this item includes Stroke per jaw [mm]: 10.0; Closing force [N]: 45.0; Closing force (with finger lengths of 0 mm) [N]: 50.0; Recommended workpiece weight [kg]: 0.23; Cylinder volume per double stroke [cm³]: 3.0; Min. operating pressure [bar]: 2.5; Nominal operating pressure [bar]: 6.0; Closing time [s]: 0.03; Opening time [s]: 0.03; Max. permissible finger length [mm]: 40.0; Max. permissible weight per finger [kg]: 0.04; IP protection class: 20. The complete technical table is shown in the Specifications tab on this page.
| Cleanroom class ISO 14644-1 | 2015 |
|---|---|
| Closing force (with finger lengths of 0 mm) [N] | 50.0 |
| Closing force [N] | 45.0 |
| Closing time [s] | 0.03 |
| Cylinder volume per double stroke [cm³] | 3.0 |
| Height Z [mm] | 29.0 |
| IP protection class | 20 |
| Length X [mm] | 64.4 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 150.0 |
| Max. permissible finger length [mm] | 40.0 |
| Max. permissible weight per finger [kg] | 0.04 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 2.5 |
| Moment Mx max. [Nm] | 1.0 |
| Moment My max. [Nm] | 2.0 |
| Moment Mz max. [Nm] | 2.5 |
| Nominal operating pressure [bar] | 6.0 |
| Opening force (with finger lengths of 0 mm) [N] | 55.0 |
| Opening force [N] | 53.0 |
| Opening time [s] | 0.03 |
| Recommended workpiece weight [kg] | 0.23 |
| Repeat accuracy [mm] | 0.02 |
| Stroke per jaw [mm] | 10.0 |
| Weight (Kg) | 0.09 |
| Width Y [mm] | 18.0 |
Frequently Asked Questions
How do I get pricing for 303075?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 303075?
303075 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 303075?
Key specifications include Cleanroom class ISO 14644-1: 2015; Closing force (with finger lengths of 0 mm) [N]: 50.0; Closing force [N]: 45.0; Closing time [s]: 0.03. The full specification table on this page lists every published attribute for this part.
How quickly can 303075 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
