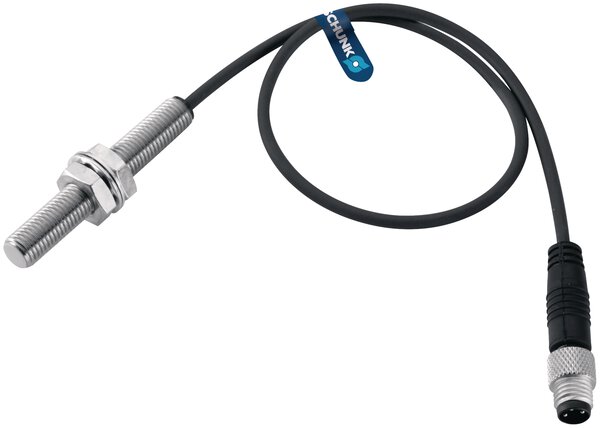

Schunk APS-Z80-M8
Schunk 302070 - Sensors - Housing material: Steel, rustproof; Protection class: 2; Cable length [m]: 0.3.
In our catalog, the 302070 from Schunk is listed under the Sensors category. The manufacturer's published data for this part number specifies Housing material: Steel, rustproof and Protection class: 2.
Key manufacturer data on file for this item includes Cable length [m]: 0.3; Measuring principle: inductive; Voltage output: yes; Linearity: ± 5; IP protection class: 67; Min. ambient temperature [°C]: -10.0; Max. ambient temperature [°C]: 70.0; Nominal voltage [V]: 24.0; Cable connector/cable end: M8 connector, 3-pin; Cable diameter [mm]: 3.1; Short circuit protection: yes; CE: yes. See the Specifications tab on this page for the full technical table.
| Cable connector/cable end | M8 connector, 3-pin |
|---|---|
| Cable diameter [mm] | 3.1 |
| Cable length [m] | 0.3 |
| Cable sheath material | PUR |
| CE | yes |
| Housing material | Steel, rustproof |
| IP protection class | 67 |
| LED display in sensor | no |
| Limit frequency [Hz] | 1000.0 |
| Linearity | ± 5 |
| Material of the active surface | PBT |
| Max. ambient temperature [°C] | 70.0 |
| Max. measuring speed [m/s] | 20.0 |
| Max. output voltage [V] | 9.5 |
| Max. ripple (% of Ue) | ±15% |
| Max. voltage [V] | 30.0 |
| Measuring principle | inductive |
| Min. ambient temperature [°C] | -10.0 |
| Min. load resistance RL [kΩ] | 2.0 |
| Min. operating voltage [V] | 15.0 |
| Min. output voltage [V] | 0.5 |
| Nominal current [mA] | 8.0 |
| Nominal voltage [V] | 24.0 |
| Number of switching points | Analog |
| Protected against polarity reversal | yes |
| Protection class | 2 |
| Repeat accuracy R of final value maximum | ±3% |
| Response time/type. Switching time [ms] | 0.5 |
| Short circuit protection | yes |
| Type of voltage | DC |
| Voltage output | yes |
Frequently Asked Questions
How do I get pricing for 302070?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 302070?
302070 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 302070?
Key specifications include Cable connector/cable end: M8 connector, 3-pin; Cable diameter [mm]: 3.1; Cable length [m]: 0.3; Cable sheath material: PUR. The full specification table on this page lists every published attribute for this part.
How quickly can 302070 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

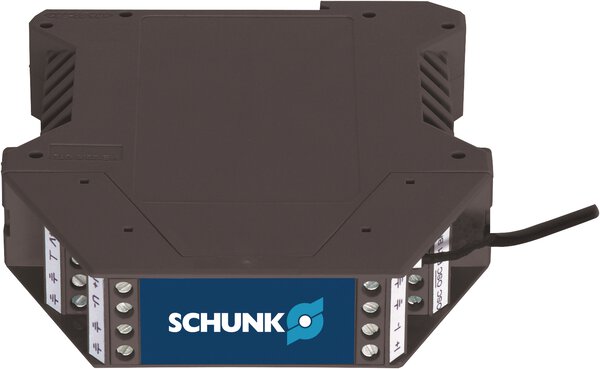

Schunk Schunk APS-M1E
Schunk Schunk APS-Z80-K

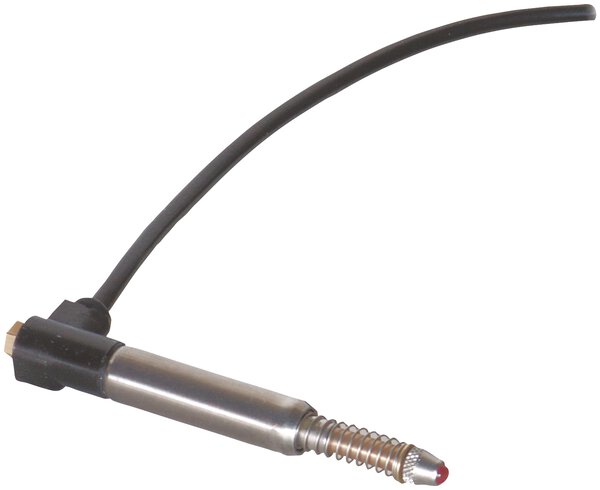

Schunk Schunk APS-M1S

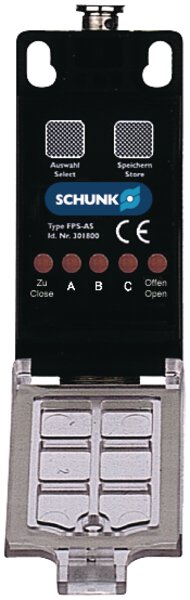

Schunk Schunk FPS-F5

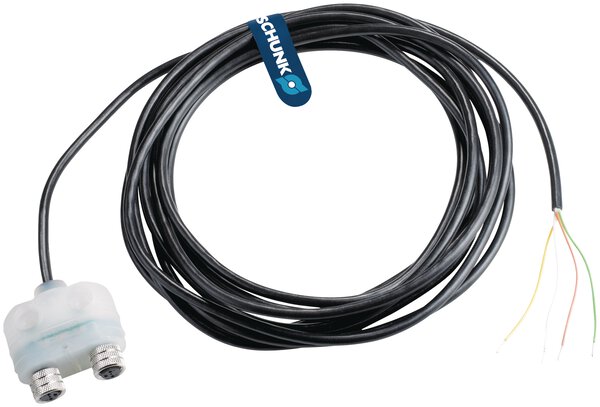

Schunk Schunk V2-M12
