Schunk TENDO Turn DKE Ø1 1/4" Ø3/4"x59
Schunk 28003531 - TENDO hydraulic expansion toolholder - Series: TENDO Turn; Technology: Hydraulic expansion toolholder; g: M22x1.
The Schunk 28003531 is part of the TENDO hydraulic expansion toolholder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: TENDO Turn and Technology: Hydraulic expansion toolholder.
Published specifications for this part include g: M22x1; Weight (Kg): 0.55; Min torque (Nm): 280.0; D2 [mm]: 42.0; D3 [mm]: 60.0; Toolholder interface: DKE; Clamping diameter D1: 3/4"; D6 [mm]: 39.1; Projecting length L1 [mm]/[inch]: 19,5 mm / 0.8"; L2 [mm]: 51.0; L3 [mm]: 10.0; L4 [mm]: 4.5. The complete technical table is shown in the Specifications tab on this page.
| Clamping diameter D1 | 3/4" |
|---|---|
| Coolant-proof | yes |
| D2 [mm] | 42.0 |
| D3 [mm] | 60.0 |
| D5 [mm] | 31.75 |
| D6 [mm] | 39.1 |
| g | M22x1 |
| L [mm] | 78.5 |
| L2 [mm] | 51.0 |
| L3 [mm] | 10.0 |
| L4 [mm] | 4.5 |
| L8 [mm] | 21.5 |
| Min torque (Nm) | 280.0 |
| Projecting length L1 [mm]/[inch] | 19,5 mm / 0.8" |
| Series | TENDO Turn |
| Standard length | yes |
| Technology | Hydraulic expansion toolholder |
| Toolholder interface | DKE |
| Weight (Kg) | 0.55 |
Frequently Asked Questions
How do I get pricing for 28003531?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 28003531?
28003531 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 28003531?
Key specifications include Clamping diameter D1: 3/4"; Coolant-proof: yes; D2 [mm]: 42.0; D3 [mm]: 60.0. The full specification table on this page lists every published attribute for this part.
How quickly can 28003531 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

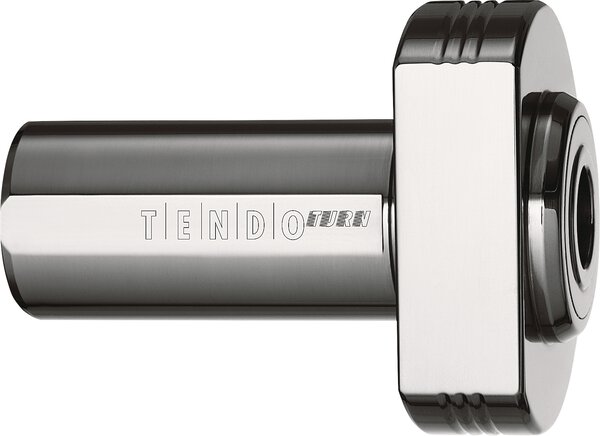

Schunk Schunk TENDO Turn DKE Ø1 1/2" Ø3/4"x59
