1474387 — Schunk EGI 080-EC
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.

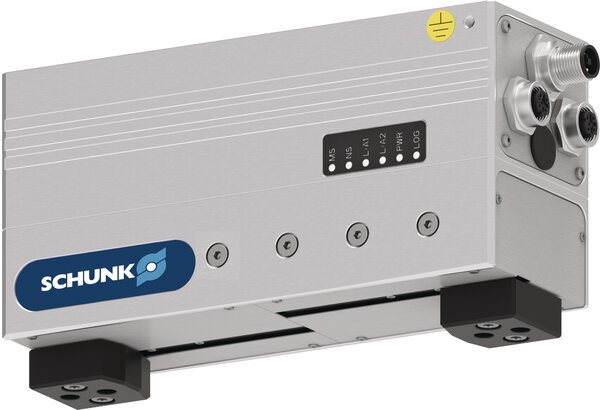

Schunk 1474387 - Parallel gripper - Communication interface: EtherCAT; Weight (Kg): 1.55; Stroke per jaw [mm]: 57.5.
Overview
Part number 1474387 from Schunk, listed in Pneumatic Grippers. Specifications on file: Cleanroom class ISO 14644-1 2015; Closing time [s] 1.1; Communication interface EtherCAT; Controller electronics integrated. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 1474387 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Communication interface: EtherCAT and Weight (Kg): 1.55.
Key manufacturer data on file for this item includes Stroke per jaw [mm]: 57.5; Recommended workpiece weight [kg]: 0.5; Closing time [s]: 1.1; Opening time [s]: 1.1; Max. permissible finger length [mm]: 200.0; Max. permissible weight per finger [kg]: 0.3; IP protection class: 20; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 55.0; Cleanroom class ISO 14644-1: 2015; Length X [mm]: 175.0; Width Y [mm]: 60.0. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Cleanroom class ISO 14644-1 | 2015 |
|---|---|
| Closing time [s] | 1.1 |
| Communication interface | EtherCAT |
| Controller electronics | integrated |
| Gripping force maintenance | > 90 |
| Height Z [mm] | 97.5 |
| IP protection class | 20 |
| Length X [mm] | 175.0 |
| Max. acceleration [mm/s²] | 3000.0 |
| Max. ambient temperature [°C] | 55.0 |
| Max. axial force Fz max. [N] | 200.0 |
| Max. current logic [A] | 0.25 |
| Max. current power [A] | 1.5 |
| Max. gripping force [N] | 100.0 |
| Max. permissible finger length [mm] | 200.0 |
| Max. speed [mm/s] | 200.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. gripping force [N] | 25.0 |
| Moment Mx max. [Nm] | 5.5 |
| Moment My max. [Nm] | 6.0 |
| Moment Mz max. [Nm] | 6.5 |
| Nominal voltage [V] | 24.0 |
| Opening time [s] | 1.1 |
| Repeat accuracy (gripping) [mm] | 0.03 |
| Repeat accuracy (positioning, bi-directional) [mm] | 0.3 |
| Repeat accuracy (positioning, unidirectional) [mm] | 0.06 |
| Stroke per jaw [mm] | 57.5 |
| Typical cycle time [s] | 0.7 |
| Width Y [mm] | 60.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 1474387 |
| Product category | Pneumatic Grippers |
| Published specifications | 29 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1474387?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1474387?
1474387 is made by Schunk and is listed in our Pneumatic Grippers category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 1474387, and the quote confirms condition and lead time before you order.
Is the 1474387 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 1474387, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 1474387?
No published lifecycle status is on file for 1474387. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1474387?
Key specifications include Cleanroom class ISO 14644-1: 2015; Closing time [s]: 1.1; Communication interface: EtherCAT; Controller electronics: integrated. The full specification table on this page lists every published attribute for this part.
What voltage does 1474387 use?
Per the published specification for 1474387: Nominal voltage [V]: 24.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 1474387 rated for?
Per the published specification for 1474387: Max. ambient temperature [°C]: 55.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 1474387 ship?
Lead time for 1474387 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk EGI 080-EI
Schunk Schunk EMH-DP 080-B
Schunk Schunk EGI 080-PN

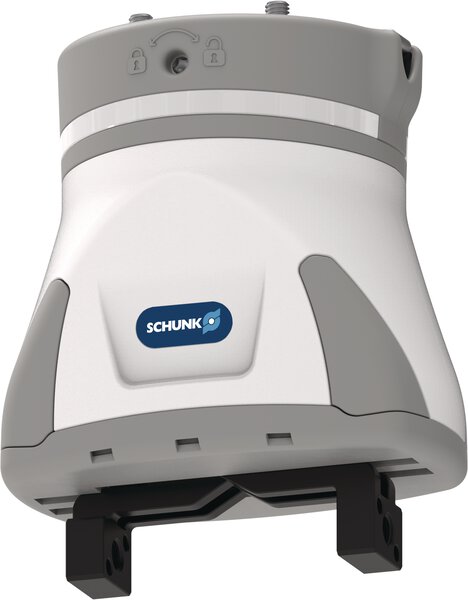

Schunk Schunk EGH 80-IOL-N-UREK Starter
