Schunk EGH 80-IOL-N-TMEK Starter
Schunk 1478179 - Parallel gripper - Cable length [m]: 4.0; Port: Class B; Transmission rate: COM2.
The Schunk 1478179 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Cable length [m]: 4.0 and Port: Class B.
The specification set recorded for this part number covers Transmission rate: COM2; Weight (Kg): 1.06; Stroke per jaw [mm]: 40.0; Recommended workpiece weight [kg]: 0.5; Closing time [s]: 0.8; Opening time [s]: 0.8; Max. permissible finger length [mm]: 70.0; Max. permissible weight per finger [kg]: 0.2; IP protection class: 20; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 55.0; Length X [mm]: 114.0. The complete technical table is shown in the Specifications tab on this page.
| Cable connector/cable end | open wire strands |
|---|---|
| Cable length [m] | 4.0 |
| Closing time [s] | 0.8 |
| Compatible robot | TM 5/12/14 |
| Displayable colors | green, yellow, red |
| Height Z [mm] | 133.0 |
| IP protection class | 20 |
| LED strip light | integrated |
| Length X [mm] | 114.0 |
| Max. ambient temperature [°C] | 55.0 |
| Max. axial force Fz max. [N] | 250.0 |
| Max. current [A] | 2.0 |
| Max. force per jaw [N] | 50.0 |
| Max. gripping force [N] | 100.0 |
| Max. permissible finger length [mm] | 70.0 |
| Max. permissible weight per finger [kg] | 0.2 |
| Min. ambient temperature [°C] | 5.0 |
| Min. force per jaw [N] | 25.0 |
| Min. gripping force [N] | 50.0 |
| Moment Mx max. [Nm] | 3.5 |
| Moment My max. [Nm] | 6.0 |
| Moment Mz max. [Nm] | 9.0 |
| Nominal current [A] | 0.2 |
| Nominal voltage [V] | 24.0 |
| Number of digital inputs (light band) | 2.0 |
| Opening time [s] | 0.8 |
| Port | Class B |
| Recommended workpiece weight [kg] | 0.5 |
| Repeat accuracy (positioning, bi-directional) [mm] | ± 0.2 |
| Repeat accuracy (positioning, unidirectional) [mm] | ± 0.1 |
| Stroke per jaw [mm] | 40.0 |
| Transmission rate | COM2 |
| Weight (Kg) | 1.06 |
| Weight incl. cable [kg] | 1.34 |
| Width Y [mm] | 86.5 |
Frequently Asked Questions
How do I get pricing for 1478179?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1478179?
1478179 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1478179?
Key specifications include Cable connector/cable end: open wire strands; Cable length [m]: 4.0; Closing time [s]: 0.8; Compatible robot: TM 5/12/14. The full specification table on this page lists every published attribute for this part.
How quickly can 1478179 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk EGH 80-IOL-N-UREK Starter
Schunk Schunk EGI 080-EC
Schunk Schunk EGI 080-EI

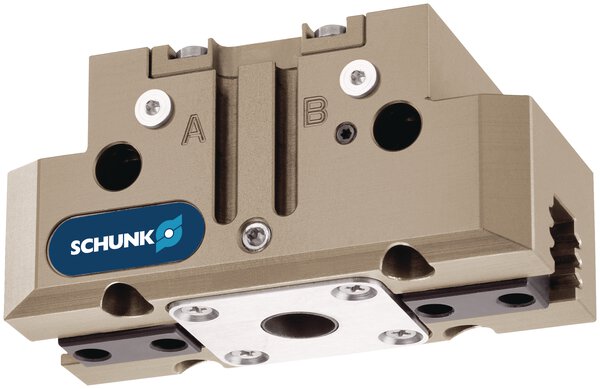

Schunk Schunk PGB 64

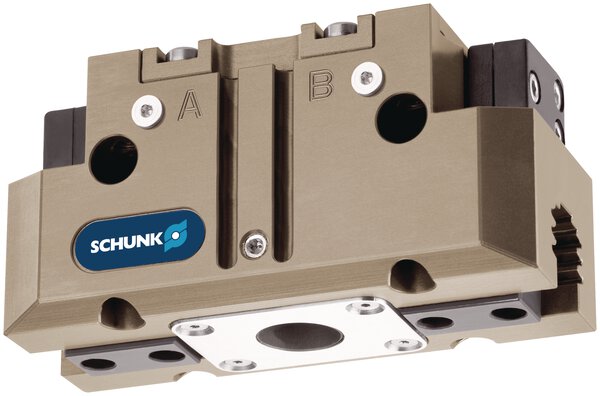

Schunk Schunk PGB 80
