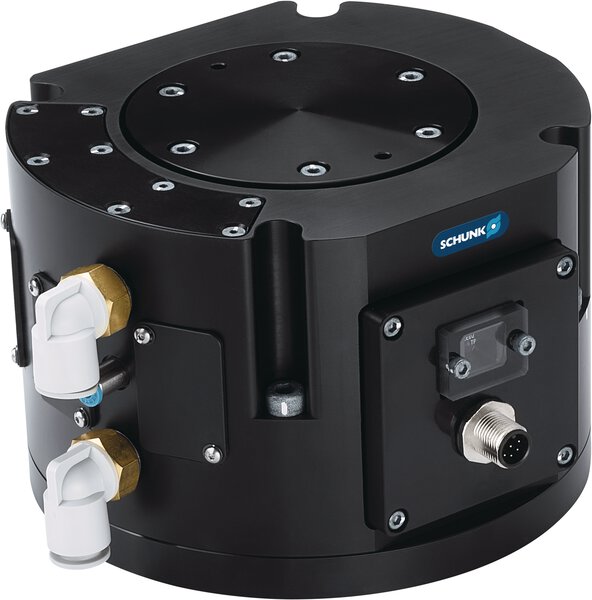

Schunk PCFC-12-C
Schunk 1453555 - PCFC - Communication interface: RS-485; Weight (Kg): 3.63; Diameter D [mm]: 152.4.
Schunk 1453555 is a PCFC catalog item from Schunk. The manufacturer's published data for this part number specifies Communication interface: RS-485 and Weight (Kg): 3.63.
Key manufacturer data on file for this item includes Diameter D [mm]: 152.4; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 35.0; Height Z [mm]: 115.4; Compensation Z [mm]: 12.0; Air purge connection: 4 mm; Min. compensating pressure [bar]: 1.0; Max. compensation pressure [bar]: 4.1; Min. compensation force [N]: 49.0; Max. compensation force [N]: 240.0; Weight force compensation: integrated; Retract air connection compensation: 10 mm. See the Specifications tab on this page for the full technical table.
| Air purge connection | 4 mm |
|---|---|
| Communication interface | RS-485 |
| Compensation Z [mm] | 12.0 |
| Diameter D [mm] | 152.4 |
| Extend air connection compensation | 10 mm |
| Height Z [mm] | 115.4 |
| Max. ambient temperature [°C] | 35.0 |
| Max. compensation force [N] | 240.0 |
| Max. compensation pressure [bar] | 4.1 |
| Min. ambient temperature [°C] | 5.0 |
| Min. compensating pressure [bar] | 1.0 |
| Min. compensation force [N] | 49.0 |
| Retract air connection compensation | 10 mm |
| Weight (Kg) | 3.63 |
| Weight force compensation | integrated |
Frequently Asked Questions
How do I get pricing for 1453555?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1453555?
1453555 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1453555?
Key specifications include Air purge connection: 4 mm; Communication interface: RS-485; Compensation Z [mm]: 12.0; Diameter D [mm]: 152.4. The full specification table on this page lists every published attribute for this part.
How quickly can 1453555 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
