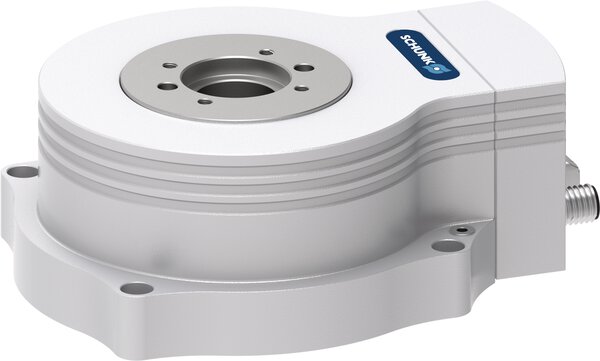

1459481 — Schunk ERT 12-40-B-N-D-N
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 1459481 - Rotary Actuators - Output signal: DRIVE-CLiQ; Weight (Kg): 2.7; Repeat accuracy: 0.01.
Overview
Part number 1459481 from Schunk, listed in Rotary Actuators. Specifications on file: Axial run-out [mm] 0.02; Encoder system Encoder (absolute); Force Fx max. [N] 700.0; Force Fz max. [N] 700.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
Schunk 1459481 is a Rotary Actuators catalog item from Schunk. The manufacturer's published data for this part number specifies Output signal: DRIVE-CLiQ and Weight (Kg): 2.7.
The specification set recorded for this part number covers Repeat accuracy: 0.01; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 40.0; Length X [mm]: 181.0; Width Y [mm]: 135.0; Height Z [mm]: 64.0; Moment My max. [Nm]: 24.0; Nominal torque [Nm]: 1.4; Nominal current [A]: 0.96; Max. current [A]: 3.27; Force Fz max. [N]: 700.0. See the Specifications tab on this page for the full technical table.
Specifications
| Axial run-out [mm] | 0.02 |
|---|---|
| Encoder system | Encoder (absolute) |
| Force Fx max. [N] | 700.0 |
| Force Fz max. [N] | 700.0 |
| Height Z [mm] | 64.0 |
| Intermediate circuit voltage [V] | 560.0 |
| IP protection class | 40 |
| Length X [mm] | 181.0 |
| Max. ambient temperature [°C] | 40.0 |
| Max. current [A] | 3.27 |
| Max. permissible mass moment of inertia [kgm²] | 0.07 |
| Max. rotational speed [1/min] | 600.0 |
| Min. ambient temperature [°C] | 5.0 |
| Moment holding brake [Nm] | 1.4 |
| Moment My max. [Nm] | 24.0 |
| Nominal current [A] | 0.96 |
| Nominal torque [Nm] | 1.4 |
| Output signal | DRIVE-CLiQ |
| Peak torque [Nm] | 4.17 |
| Repeat accuracy | 0.01 |
| Run-out accuracy [mm] | 0.02 |
| SIL certification | not certified |
| Weight (Kg) | 2.7 |
| Width Y [mm] | 135.0 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 1459481 |
| Product category | Rotary Actuators |
| Published specifications | 24 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1459481?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1459481?
1459481 is made by Schunk and is listed in our Rotary Actuators category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 1459481, and the quote confirms condition and lead time before you order.
Is the 1459481 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 1459481, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 1459481?
No published lifecycle status is on file for 1459481. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1459481?
Key specifications include Axial run-out [mm]: 0.02; Encoder system: Encoder (absolute); Force Fx max. [N]: 700.0; Force Fz max. [N]: 700.0. The full specification table on this page lists every published attribute for this part.
What voltage does 1459481 use?
Per the published specification for 1459481: Intermediate circuit voltage [V]: 560.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 1459481 rated for?
Per the published specification for 1459481: Max. ambient temperature [°C]: 40.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 1459481 weigh?
Per the published specification for 1459481: Weight (Kg): 2.7. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 1459481 ship?
Lead time for 1459481 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
