Schunk SRM 10-H-180-90
Schunk 1413281 - Rotary Actuators - Weight (Kg): 0.266; Repeat accuracy: 0.03; Torque [Nm]: 0.5.
In our catalog, the 1413281 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 0.266 and Repeat accuracy: 0.03.
The specification set recorded for this part number covers Torque [Nm]: 0.5; Max Operating Pressure (bar): 6.5; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Cleanroom class ISO 14644-1: 2015; Length X [mm]: 125.6; Width Y [mm]: 36.0; Height Z [mm]: 25.0; Moment My max. [Nm]: 3.0. The complete technical table is shown in the Specifications tab on this page.
| Angle of rotation [°] | 180 |
|---|---|
| Cleanroom class ISO 14644-1 | 2015 |
| Diameter of center bore [mm] | 6.0 |
| Diameter of connecting hose | 3 x 1.8 x 0.6 |
| End position damping | hydr. damper |
| Fluid consumption (2x nom. angle) [cm³] | 7.2 |
| Height Z [mm] | 25.0 |
| IP protection class | 40 |
| Length X [mm] | 125.6 |
| Max Operating Pressure (bar) | 6.5 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 215.0 |
| Max. permissible mass moment of inertia [kgm²] | 8.0E-4 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment My max. [Nm] | 3.0 |
| Nominal operating pressure [bar] | 6.0 |
| Number of intermediate positions | none |
| Repeat accuracy | 0.03 |
| Torque [Nm] | 0.5 |
| Weight (Kg) | 0.266 |
| Width Y [mm] | 36.0 |
Frequently Asked Questions
How do I get pricing for 1413281?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1413281?
1413281 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1413281?
Key specifications include Angle of rotation [°]: 180; Cleanroom class ISO 14644-1: 2015; Diameter of center bore [mm]: 6.0; Diameter of connecting hose: 3 x 1.8 x 0.6. The full specification table on this page lists every published attribute for this part.
How quickly can 1413281 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SRM 10-E-180-90
Schunk Schunk SRM 10-H-180-90-2P
Schunk Schunk SRM 10-E-180-90-2P

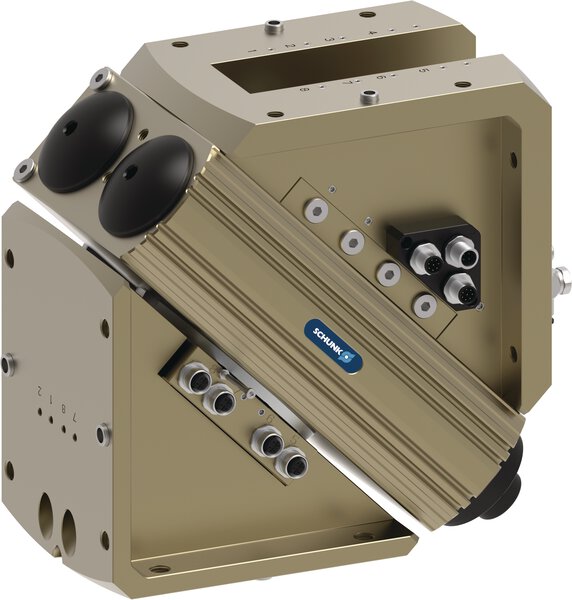

Schunk Schunk SRH-plus-D 60-W-M8-AS
