SU7001 IFM Ultrasonic flow meter
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM SU7001 - Ultrasonic flow meter - Material: housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA; Storage Temperature: -13...176.
Overview
Part number SU7001 from IFM, listed in Ultrasonic Sensors. Specifications on file: Accuracy ± 5,4 (Q > 0,26 gpm); Ambient temperature 14...140; Analog current output 4...20; (scalable); Analog end point 46...176. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM SU7001 is part of the Ultrasonic flow meter range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA.
1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: brass, Optalloy-plated
Published specifications for this part include Storage Temperature: -13...176; Ambient temperature: 14...140; Installation: connection to pipe by means of an adapter; Protection class: III; Dimensions: 110 x 100 x 80.5; Number of digital outputs: 2; Application: Totalizer function; for industrial applications; Output signal: switching signal; analog signal; pulse signal; (configurable); Product type: Ultrasonic flow meter; Accuracy: ± 5,4 (Q > 0,26 gpm); Response time: 0.25; (dAP = 0); Measuring range: 14...176. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Accuracy | ± 5,4 (Q > 0,26 gpm) |
|---|---|
| Ambient temperature | 14...140 |
| Analog current output | 4...20; (scalable) |
| Analog end point | 46...176 |
| Analog start point | 14...144 |
| Analog voltage output | 0...10; (scalable) |
| Application | Totalizer function; for industrial applications |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: brass, Optalloy-plated |
| Current consumption | 100 |
| Damping process value dAP | 0...1 |
| Delay time programmable dS, dr | 0...50 |
| Dimensions | 110 x 100 x 80.5 |
| Dynamic response T05 / T09 | T09 = 70 (Q > 1 gpm); (water) |
| Electrical design | PNP/NPN |
| Housing | rectangular |
| In steps of | 0.02 gal |
| Inputs | counter reset |
| Installation | connection to pipe by means of an adapter |
| Key Features | Precise measurement of flow, consumption and medium temperature; Suitable for water, oils and glycol solutions; For installation in pipes; With switching output, analog output and pulse output; Clearly visible numerical display |
| Material | housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA |
| Materials (wetted parts) | Pipe section: stainless steel (1.4404 / 316L); Process connection sealing: NBR fiber-reinforced Gasket; FKM; PES |
| Max. load | 500 |
| Max. voltage drop switching output DC | 2 |
| Measuring principle | ultrasonic |
| Measuring range | 14...176 |
| Media | water; glycol solutions; Coolants; oils |
| Medium temperature | 14...176 |
| Min. insulation resistance | 100; (500 V DC) |
| Min. load resistance | 2000 |
| MTTF | 185 |
| Number of analog outputs | 1 |
| Number of digital outputs | 2 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
| Operating voltage | 19...30 DC; (to SELV/PELV) |
| Output function | normally open / closed; (configurable) |
| Output signal | switching signal; analog signal; pulse signal; (configurable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Parameter setting options | Flow monitoring; quantity meter; Preset counter; Temperature monitoring |
| Permanent current rating of switching output DC | 250; (per output) |
| Power-on delay time | 10 |
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Process Connection | threaded connection G 3/4 external thread flat seal |
| Product type | Ultrasonic flow meter |
| Protection | IP 67 |
| Protection class | III |
| Pulse length | 0,6...2 |
| Pulse output | flow rate meter |
| Pulse value | 0.02...9000 * 10³ gal |
| Repeatability | 0,025 gpm; 1,5 gph |
| Reset point rP | 14...176 |
| Resolution | 0.5 |
| Response time | 0.25; (dAP = 0) |
| Reverse polarity protection | yes |
| Set point SP | 14...176 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Ultrasonic flow meter; PNP/NPN; switching signal; analog signal; pulse signal; Pressure rating 16 bar; G 3/4 external thread; Connector |
| Storage Temperature | -13...176 |
| Total number of outputs | 2 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | SU7001 |
| Product category | Ultrasonic Sensors |
| Published specifications | 61 attributes listed |
| Related part numbers | 6 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for SU7001?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SU7001?
SU7001 is made by IFM and is listed in our Ultrasonic Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number SU7001, and the quote confirms condition and lead time before you order.
Is the SU7001 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the SU7001, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of SU7001?
No published lifecycle status is on file for SU7001. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of SU7001?
Key specifications include Accuracy: ± 5,4 (Q > 0,26 gpm); Ambient temperature: 14...140; Analog current output: 4...20; (scalable); Analog end point: 46...176. The full specification table on this page lists every published attribute for this part.
What voltage does SU7001 use?
Per the published specification for SU7001: Analog voltage output: 0...10; (scalable); Max. voltage drop switching output DC: 2. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of SU7001?
Per the published specification for SU7001: Permanent current rating of switching output DC: 250; (per output). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is SU7001 made of?
Per the published specification for SU7001: Material: housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can SU7001 ship?
Lead time for SU7001 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Ultrasonic flow meter - SU7000
IFM Ultrasonic flow meter - SU7020

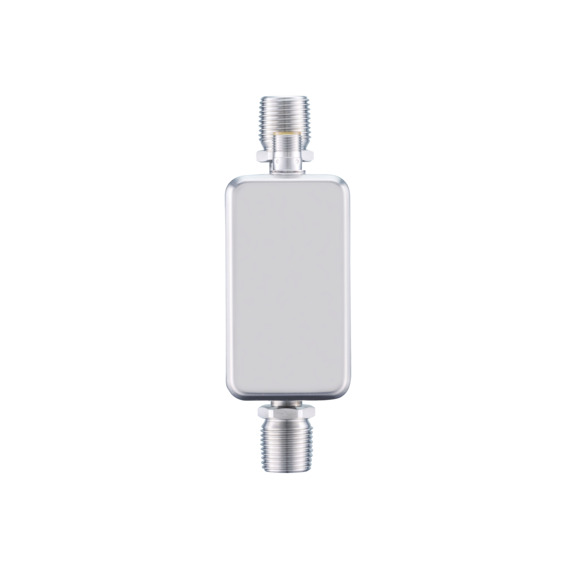

IFM Ultrasonic flow meter - SU6651
IFM Ultrasonic flow meter - SU7021

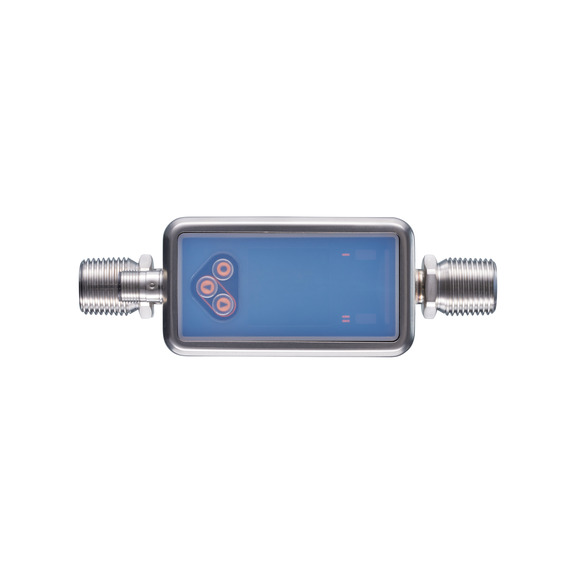

IFM Ultrasonic flow meter - SU6631
