SU7000 IFM Ultrasonic flow meter
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM SU7000 - Ultrasonic flow meter - Material: housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA; Storage Temperature: -25...80.
Overview
Part number SU7000 from IFM, listed in Ultrasonic Sensors. Specifications on file: Accuracy ± 3 (Q > 1 l/min); Ambient temperature -10...60; Analog current output 4...20; (scalable); Analog end point 8...80. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the SU7000 from IFM is listed under the Ultrasonic flow meter category. The manufacturer's published data for this part number specifies Material: housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA.
1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: brass, Optalloy-plated
Key manufacturer data on file for this item includes Storage Temperature: -25...80; Ambient temperature: -10...60; Installation: connection to pipe by means of an adapter; Protection class: III; Dimensions: 110 x 100 x 80.5; Number of digital outputs: 2; Application: Totalizer function; for industrial applications; Output signal: switching signal; analog signal; pulse signal; (configurable); Product type: Ultrasonic flow meter; Accuracy: ± 3 (Q > 1 l/min); Response time: 0.25; (dAP = 0); Measuring range: -10...80. See the Specifications tab on this page for the full technical table.
Specifications
| Accuracy | ± 3 (Q > 1 l/min) |
|---|---|
| Ambient temperature | -10...60 |
| Analog current output | 4...20; (scalable) |
| Analog end point | 8...80 |
| Analog start point | -10...62 |
| Analog voltage output | 0...10; (scalable) |
| Application | Totalizer function; for industrial applications |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: brass, Optalloy-plated |
| Current consumption | 100 |
| Damping process value dAP | 0...1 |
| Delay time programmable dS, dr | 0...50 |
| Dimensions | 110 x 100 x 80.5 |
| Dynamic response T05 / T09 | T09 = 70 (Q > 5 l/min); (water) |
| Electrical design | PNP/NPN |
| Housing | rectangular |
| In steps of | 0.2 |
| Inputs | counter reset |
| Installation | connection to pipe by means of an adapter |
| Key Features | Precise measurement of flow, consumption and medium temperature; Suitable for water, oils and glycol solutions; For installation in pipes; With switching output, analog output and pulse output; Clearly visible numerical display |
| Material | housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA |
| Materials (wetted parts) | Pipe section: stainless steel (1.4404 / 316L); Process connection sealing: NBR fiber-reinforced Gasket; FKM; PES |
| Max. load | 500 |
| Max. voltage drop switching output DC | 2 |
| Measuring principle | ultrasonic |
| Measuring range | -10...80 |
| Media | water; glycol solutions; Coolants; oils |
| Medium temperature | -10...80 |
| Min. insulation resistance | 100; (500 V DC) |
| Min. load resistance | 2000 |
| MTTF | 175 |
| Number of analog outputs | 1 |
| Number of digital outputs | 2 |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
| Operating voltage | 19...30 DC; (to SELV/PELV) |
| Output function | normally open / closed; (configurable) |
| Output signal | switching signal; analog signal; pulse signal; (configurable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Parameter setting options | Flow monitoring; quantity meter; Preset counter; Temperature monitoring |
| Permanent current rating of switching output DC | 250; (per output) |
| Power-on delay time | 10 |
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Process Connection | threaded connection G 3/4 external thread flat seal |
| Product type | Ultrasonic flow meter |
| Protection | IP 67 |
| Protection class | III |
| Pulse length | 0,05...2 |
| Pulse output | flow rate meter |
| Pulse value | 0.1 l...1 000 000 m³ |
| Repeatability | 0,1 l/min; 6 l/h; 0,006 m³/h |
| Reset point rP | -10...79.8 |
| Resolution | 0.2 |
| Response time | 0.25; (dAP = 0) |
| Reverse polarity protection | yes |
| Set point SP | -9.8...80 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Ultrasonic flow meter; PNP/NPN; switching signal; analog signal; pulse signal; Measuring range 0...3 m³/h; Measuring range 0...50 l/min; Medium temperature -10...80 °C; Pressure rating 16 bar; G 3/4 external thread; Connector |
| Storage Temperature | -25...80 |
| Total number of outputs | 2 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | SU7000 |
| Product category | Ultrasonic Sensors |
| Published specifications | 61 attributes listed |
| Related part numbers | 6 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for SU7000?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SU7000?
SU7000 is made by IFM and is listed in our Ultrasonic Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number SU7000, and the quote confirms condition and lead time before you order.
Is the SU7000 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the SU7000, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of SU7000?
No published lifecycle status is on file for SU7000. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of SU7000?
Key specifications include Accuracy: ± 3 (Q > 1 l/min); Ambient temperature: -10...60; Analog current output: 4...20; (scalable); Analog end point: 8...80. The full specification table on this page lists every published attribute for this part.
What voltage does SU7000 use?
Per the published specification for SU7000: Analog voltage output: 0...10; (scalable); Max. voltage drop switching output DC: 2. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of SU7000?
Per the published specification for SU7000: Permanent current rating of switching output DC: 250; (per output). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is SU7000 made of?
Per the published specification for SU7000: Material: housing: Aluminum Alloy anodized AlMgSi0,5; sealing: FKM; PA 6.6; cover film: PA. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can SU7000 ship?
Lead time for SU7000 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Ultrasonic flow meter - SU6651
IFM Ultrasonic flow meter - SU7001
IFM Ultrasonic flow meter - SU6631
IFM Ultrasonic flow meter - SU7020

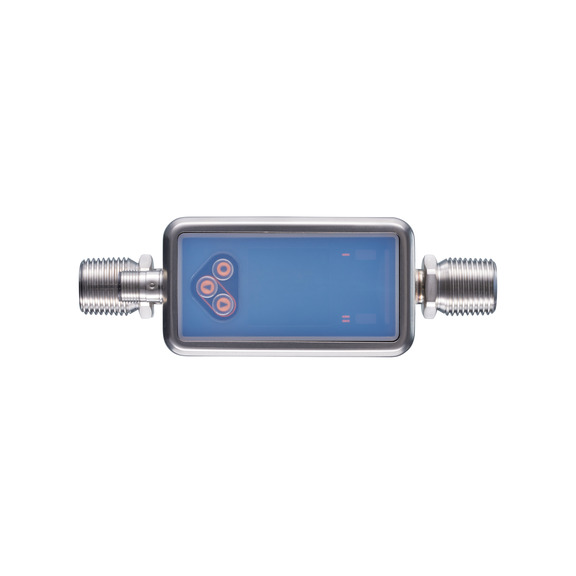

IFM Ultrasonic flow meter - SU6621
