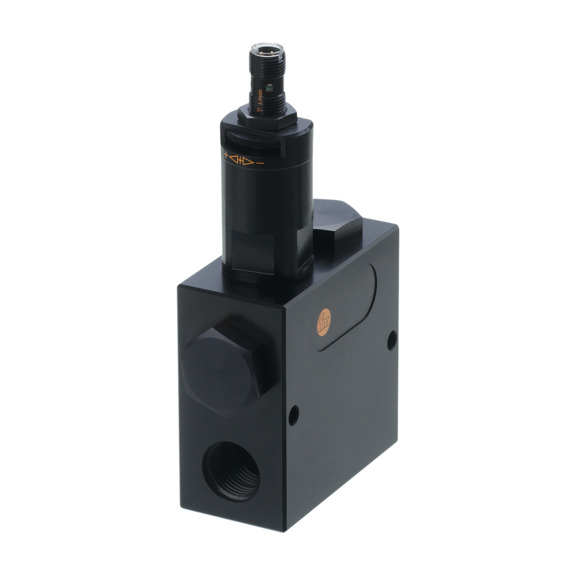

SBU323 IFM Flow sensor with fast response time
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM SBU323 - Flow sensor with fast response time - Material: aluminum anodized; PA; Storage Temperature: -15...80.
Overview
Part number SBU323 from IFM, listed in Flow Sensors & Meters. Specifications on file: Ambient temperature 0...60; Application Machine tools; Internal cooling of drill; Connector 1 x M12; coding: A; Contacts: 4; Dimensions 167 x 80 x 40. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM SBU323, a part number in the Flow sensor with fast response time category. The manufacturer's published data for this part number specifies Material: aluminum anodized; PA.
Reliable volumetric flow monitoring of the internal cooling of the drill on machine tools; With integrated backflow protector; Intuitive continuous adjustment of the switch points; Robust housing with very high pressure resistance; Very short response time
The specification set recorded for this part number covers Storage Temperature: -15...80; Ambient temperature: 0...60; Connector: 1 x M12; coding: A; Contacts: 4; Protection class: III; Dimensions: 167 x 80 x 40; Number of digital outputs: 1; Application: Machine tools; Internal cooling of drill; Output signal: switching signal; Product type: Flow sensor with fast response time; Response time: < 0.01; Operating voltage: 10...30 DC; (to SELV/PELV); Current consumption: < 15. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | 0...60 |
|---|---|
| Application | Machine tools; Internal cooling of drill |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Dimensions | 167 x 80 x 40 |
| Electrical design | PNP |
| Flow Range | 75 |
| Housing | rectangular |
| Hysteresis | 0,1...1 |
| Key Features | Reliable volumetric flow monitoring of the internal cooling of the drill on machine tools; With integrated backflow protector; Intuitive continuous adjustment of the switch points; Robust housing with very high pressure resistance; Very short response time |
| Material | aluminum anodized; PA |
| Materials (wetted parts) | stainless steel (1.4310 / 301); stainless steel (1.4301 / 304); aluminum anodized; PBT; PU; O-ring: FKM |
| Max. voltage drop switching output DC | 2.5 |
| Measuring error | ± 5 |
| Medium temperature | 0...60 |
| MTTF | 3387 |
| Number of digital outputs | 1 |
| Number of inputs and outputs | Number of digital outputs: 1 |
| Operating voltage | 10...30 DC; (to SELV/PELV) |
| Output function | normally open |
| Output signal | switching signal |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Process Connection | threaded connection G 1/2 Internal thread |
| Product type | Flow sensor with fast response time |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Repeatability | 1 |
| Reverse polarity protection | yes |
| Setting range | 0.3...25 |
| Short circuit protection | yes |
| Specification Summary | Flow monitor; PNP; switching signal; Medium temperature 0...60 °C; Pressure rating 200 bar; G 1/2 Internal thread; Connector |
| Storage Temperature | -15...80 |
| Switching cycles mechanical | 10 million |
| Total number of outputs | 1 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | SBU323 |
| Product category | Flow Sensors & Meters |
| Published specifications | 35 attributes listed |
| Related part numbers | 2 other part numbers in this family |
