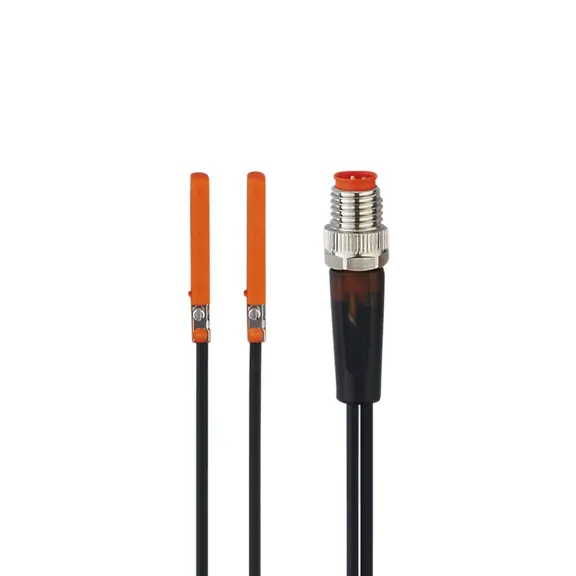

MK5350 IFM C-slot cylinder sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM MK5350 - C-slot cylinder sensor - Material: housing: PA; Fastening clamp: stainless steel; Weight: 14.9; Ambient temperature: -25...85.
Overview
Part number MK5350 from IFM, listed in Magnetic & Cylinder Sensors. Specifications on file: Ambient temperature -25...85; Cable 0.3 m, PUR; Cylinder type C-slot cylinders; Dimensions 26.1 x 2.8 x 5.5. KKM Solutions quotes this part with pricing and availability confirmed per order.
The IFM MK5350 is part of the C-slot cylinder sensor range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: PA; Fastening clamp: stainless steel and Weight: 14.9.
Small hysteresis for exact switch point detection; For exact switch point detection on short-stroke cylinders; Very high switching frequency; Self-locking fixture for quick mounting and easy adjustment; Easy fit 'drop from the top' into a slot
Key manufacturer data on file for this item includes Ambient temperature: -25...85; Connector: 1 x M8; coding: A; Locking: Knurled nut, rotatable; Tightening torque: < 0.24; Protection class: III; Dimensions: 26.1 x 2.8 x 5.5; Product type: C-slot cylinder sensor; Mounting: flush mountable; Cable: 0.3 m, PUR; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Repeatability: < 0.2. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...85 |
|---|---|
| Cable | 0.3 m, PUR |
| Connector | 1 x M8; coding: A; Locking: Knurled nut, rotatable |
| Cylinder type | C-slot cylinders |
| Dimensions | 26.1 x 2.8 x 5.5 |
| Electrical design | PNP |
| Hysteresis | 1 |
| Key Features | Small hysteresis for exact switch point detection; For exact switch point detection on short-stroke cylinders; Very high switching frequency; Self-locking fixture for quick mounting and easy adjustment; Easy fit 'drop from the top' into a slot |
| Magnetic sensitivity | 2 |
| Material | housing: PA; Fastening clamp: stainless steel |
| Max. power-on delay time | 30 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| Operating voltage | 10...30 DC |
| Output function | 2 x normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | C-slot cylinder sensor |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Cylinder sensor with AMR cell; 26.1 x 2.8 x 5.5 mm; Magnetic sensitivity 2 mT; Reverse polarity protection yes; Short-circuit protection yes; Overload protection yes; 2 x normally open; DC; PNP; 0.3 m PUR-Cable; M8 Connector; IP 65; IP 67; 3-wire; Switching frequency 5000 Hz |
| Switching frequency DC | 5000 |
| Travel speed | > 10 |
| Weight | 14.9 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | MK5350 |
| Product category | Magnetic & Cylinder Sensors |
| Published specifications | 27 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for MK5350?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MK5350?
MK5350 is an IFM part, sourced to the exact manufacturer specification.
What is the lifecycle status of MK5350?
No published lifecycle status is on file for MK5350. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of MK5350?
Key specifications include Ambient temperature: -25...85; Cable: 0.3 m, PUR; Connector: 1 x M8; coding: A; Locking: Knurled nut, rotatable; Cylinder type: C-slot cylinders. The full specification table on this page lists every published attribute for this part.
What voltage does MK5350 use?
Per the published specification for MK5350: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of MK5350?
Per the published specification for MK5350: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is MK5350 made of?
Per the published specification for MK5350: Material: housing: PA; Fastening clamp: stainless steel. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can MK5350 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Related Products
IFM C-slot cylinder sensor - MK5331
IFM C-slot cylinder sensor - MK5351
IFM C-slot cylinder sensor - MK5330
IFM C-slot cylinder sensor - MK5353

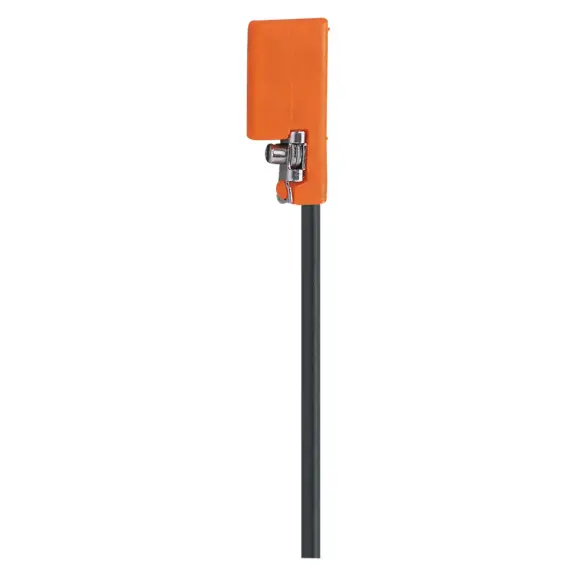

IFM C-slot cylinder sensor - MK5329
