MK5309 IFM Cylinder sensor with GMR cell
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM MK5309 - Cylinder sensor with GMR cell - Material: housing: PA; Fastening clamp: stainless steel; Weight: 17; Ambient temperature: -25...85.
Overview
Part number MK5309 from IFM, listed in Magnetic & Cylinder Sensors. Specifications on file: Ambient temperature -25...85; Cable 2 m, PUR; 3 x 0.08 mm²; Cylinder type C-slot cylinders; Dimensions 26.1 x 2.8 x 5.5. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM MK5309 is a Cylinder sensor with GMR cell catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: PA; Fastening clamp: stainless steel and Weight: 17.
Patented mounting method with screw for stable position and strain relief; With PUR cable
Key manufacturer data on file for this item includes Ambient temperature: -25...85; Protection class: III; Dimensions: 26.1 x 2.8 x 5.5; Product type: Cylinder sensor with GMR cell; Mounting: flush mountable; Cable: 2 m, PUR; 3 x 0.08 mm²; Operating voltage: 10...30 DC; (cULus - Class 2 source required); Current consumption: < 10; Reverse polarity protection: yes; Repeatability: < 0.2; Overload protection: yes; Cylinder type: C-slot cylinders. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...85 |
|---|---|
| Cable | 2 m, PUR; 3 x 0.08 mm² |
| Cylinder type | C-slot cylinders |
| Dimensions | 26.1 x 2.8 x 5.5 |
| Electrical design | NPN |
| Hysteresis | 1.5 |
| Key Features | Patented mounting method with screw for stable position and strain relief; With PUR cable |
| Magnetic sensitivity | 2.8 |
| Material | housing: PA; Fastening clamp: stainless steel |
| Max. power-on delay time | 30 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 3694 |
| Operating voltage | 10...30 DC; (cULus - Class 2 source required) |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Cylinder sensor with GMR cell |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Cylinder sensor with GMR cell; 26.1 x 2.8 x 5.5 mm; Magnetic sensitivity 2.8 mT; Reverse polarity protection yes; Short-circuit protection yes; Overload protection yes; normally open; DC; NPN; 2 m PUR-Cable; IP 65; IP 67; 3-wire; Switching frequency 10000 Hz |
| Switching frequency DC | 10000 |
| Travel speed | > 10 |
| Weight | 17 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | MK5309 |
| Product category | Magnetic & Cylinder Sensors |
| Published specifications | 27 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for MK5309?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MK5309?
MK5309 is an IFM part, sourced to the exact manufacturer specification.
What is the lifecycle status of MK5309?
No published lifecycle status is on file for MK5309. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of MK5309?
Key specifications include Ambient temperature: -25...85; Cable: 2 m, PUR; 3 x 0.08 mm²; Cylinder type: C-slot cylinders; Dimensions: 26.1 x 2.8 x 5.5. The full specification table on this page lists every published attribute for this part.
What voltage does MK5309 use?
Per the published specification for MK5309: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC; (cULus - Class 2 source required). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of MK5309?
Per the published specification for MK5309: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is MK5309 made of?
Per the published specification for MK5309: Material: housing: PA; Fastening clamp: stainless steel. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can MK5309 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Related Products

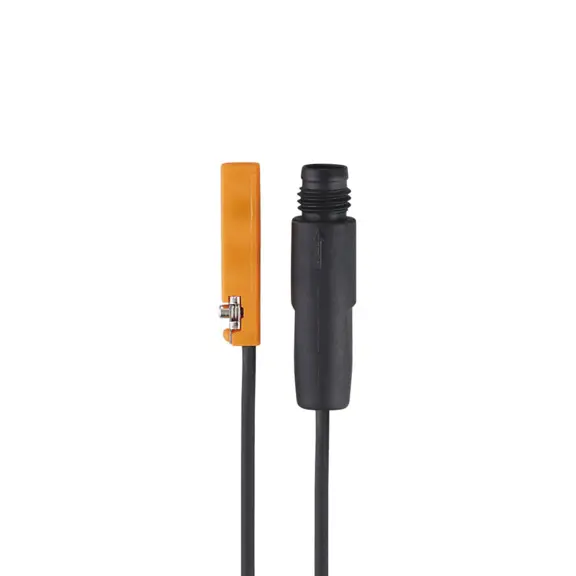

IFM Cylinder sensor with GMR cell - MK5308

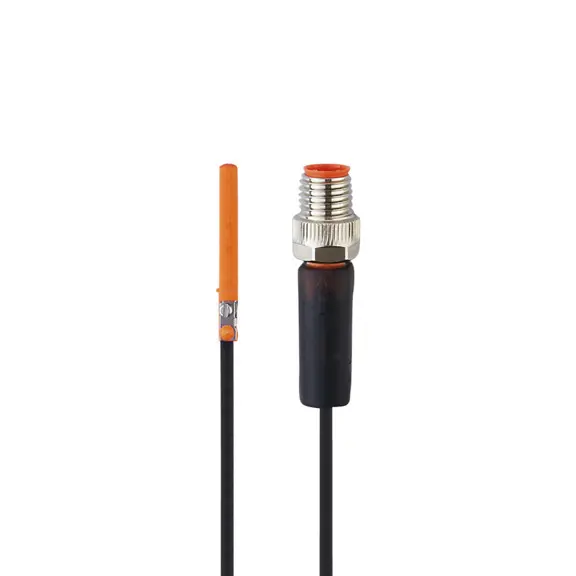

IFM C-slot cylinder sensor - MK5315
IFM C-slot cylinder sensor - MK5301

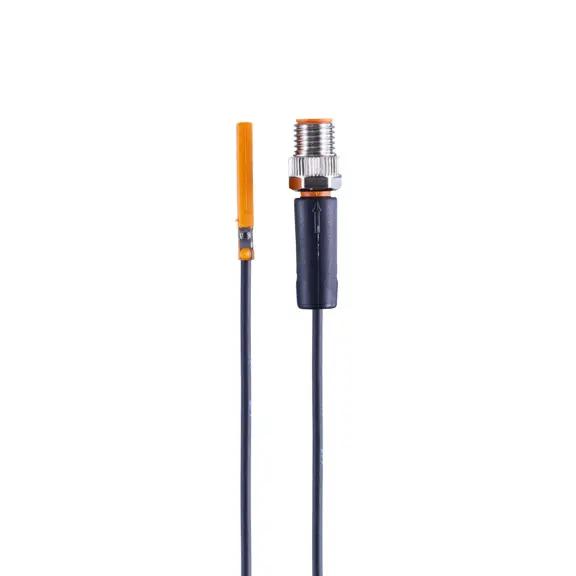

IFM C-slot cylinder sensor - MK5322
