Inductive sensor - IS5026
IFM IS5026 - Inductive sensor - Material: housing: PBT; Weight: 38.9; Ambient temperature: -25...80.
This listing covers the IFM IS5026, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: PBT and Weight: 38.9.
Particularly space-saving rectangular housing; For use where space is restricted; Very high switching frequency; Output function normally open / normally closed programmable; Two-wire technology
The specification set recorded for this part number covers Ambient temperature: -25...80; Tightening torque: < 0.5; (with washer); Protection class: III; Dimensions: 27.8 x 10.2 x 16; Product type: Inductive sensor; Mounting: flush mountable; Cable: 2 m, PUR; 2 x 0.14 mm²; Operating voltage: 5...36 DC; Reverse polarity protection: yes; Sensing range: 2; Overload protection: yes; Output function: normally open / closed; (selectable). See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...80 |
|---|---|
| Cable | 2 m, PUR; 2 x 0.14 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Dimensions | 27.8 x 10.2 x 16 |
| Electrical design | PNP/NPN |
| Housing | rectangular |
| Hysteresis | 1...15 |
| Key Features | Particularly space-saving rectangular housing; For use where space is restricted; Very high switching frequency; Output function normally open / normally closed programmable; Two-wire technology |
| Material | housing: PBT |
| Max. leakage current | 0.8 |
| Max. voltage drop switching output DC | 4.6 |
| Minimum load current | 4 |
| Mounting | flush mountable |
| MTTF | 2460 |
| Operating distance | 0...1.62 |
| Operating voltage | 5...36 DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | III |
| Real sensing range Sr | 2 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 2 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 27.8 x 10.2 x 16 mm; Sensing range 2 mm flush mountable; normally open / closed; (selectable); DC; PNP/NPN; 2 m PUR-Cable; IP 67; 2-wire; Ambient temperature -25...80 °C; Switching frequency 2000 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 2000 |
| Tightening torque | < 0.5; (with washer) |
| Weight | 38.9 |
Frequently Asked Questions
How do I get pricing for IS5026?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IS5026?
IS5026 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IS5026?
Key specifications include Ambient temperature: -25...80; Cable: 2 m, PUR; 2 x 0.14 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Dimensions: 27.8 x 10.2 x 16. The full specification table on this page lists every published attribute for this part.
How quickly can IS5026 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IS5049
IFM Inductive sensor - IS5008
IFM Inductive sensor - IS5066
IFM Inductive sensor - IS5004

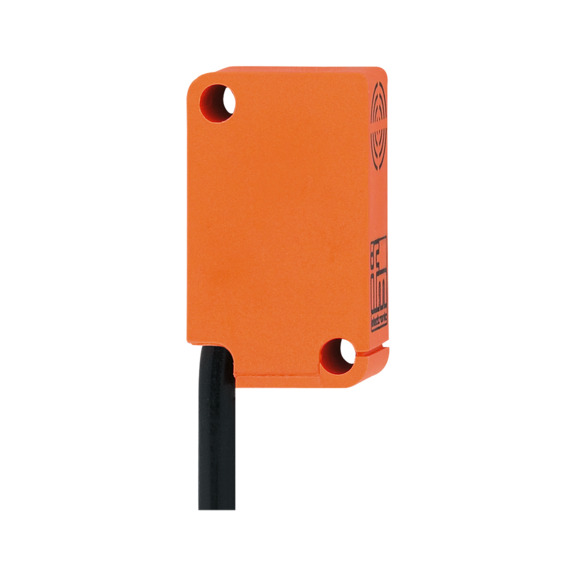

IFM Inductive sensor - IS5070
