IS5004 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IS5004 - Inductive sensor - Material: housing: PBT; Ambient temperature: -20...80.
Overview
Part number IS5004 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -20...80; Cable 2 m, PVC; 3 x 0.14 mm²; Current consumption 15; (24 V); Dimensions 27.8 x 10.2 x 16. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM IS5004, a part number in the Inductive sensor category. The manufacturer's published data for this part number specifies Material: housing: PBT.
Particularly space-saving rectangular housing; For use where space is restricted; Very high switching frequency; Wide operating temperature range; Clearly visible indication of the switching status
Published specifications for this part include Ambient temperature: -20...80; Tightening torque: < 0.5; (with washer); Protection class: III; Dimensions: 27.8 x 10.2 x 16; Product type: Inductive sensor; Mounting: flush mountable; Cable: 2 m, PVC; 3 x 0.14 mm²; Operating voltage: 10...36 DC; Current consumption: 15; (24 V); Reverse polarity protection: yes; Sensing range: 2; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -20...80 |
|---|---|
| Cable | 2 m, PVC; 3 x 0.14 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | 15; (24 V) |
| Dimensions | 27.8 x 10.2 x 16 |
| Electrical design | NPN |
| Housing | rectangular |
| Hysteresis | 1...15 |
| Key Features | Particularly space-saving rectangular housing; For use where space is restricted; Very high switching frequency; Wide operating temperature range; Clearly visible indication of the switching status |
| Material | housing: PBT |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 2791 |
| Operating distance | 0...1.6 |
| Operating voltage | 10...36 DC |
| Output function | normally closed |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | III |
| Real sensing range Sr | 2 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 2 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 27.8 x 10.2 x 16 mm; Sensing range 2 mm flush mountable; normally closed; DC; NPN; 2 m PVC-Cable; IP 67; 3-wire; Ambient temperature -20...80 °C; Switching frequency 800 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 800 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IS5004 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 29 attributes listed |
| Related part numbers | 15 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IS5004?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IS5004?
IS5004 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IS5004, and the quote confirms condition and lead time before you order.
Is the IS5004 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IS5004, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IS5004?
No published lifecycle status is on file for IS5004. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IS5004?
Key specifications include Ambient temperature: -20...80; Cable: 2 m, PVC; 3 x 0.14 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2; Current consumption: 15; (24 V). The full specification table on this page lists every published attribute for this part.
What voltage does IS5004 use?
Per the published specification for IS5004: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...36 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IS5004?
Per the published specification for IS5004: Permanent current rating of switching output DC: 200. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is IS5004 made of?
Per the published specification for IS5004: Material: housing: PBT. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IS5004 ship?
Lead time for IS5004 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - IQ2025
IFM Inductive sensor - IS5008
IFM Inductive sensor with IO-Link - IQ2009

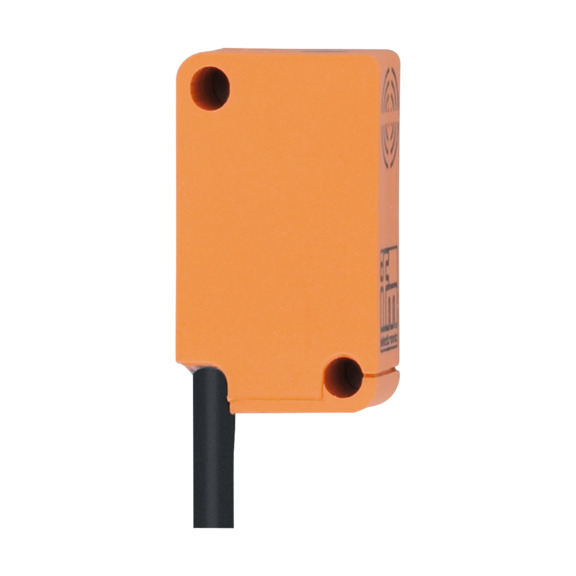

IFM Inductive sensor - IS5026
