IN5370 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IN5370 - Inductive sensor - Material: housing: PBT; sensing face: PBT orange; Ambient temperature: -20...80.
Overview
Part number IN5370 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -20...80; Current consumption 15; (24 V); Dimensions 40 x 12 x 26; Electrical design PNP. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM IN5370 is an Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: PBT; sensing face: PBT orange.
Particularly space-saving rectangular housing; For use where space is restricted; With space-saving M8 connector; Very high switching frequency; Wide operating temperature range
The specification set recorded for this part number covers Ambient temperature: -20...80; Connector: 1 x M8; coding: A; Contacts: 3; Locking: brass, white bronze coated; Tightening torque: < 0.5; Protection class: III; Dimensions: 40 x 12 x 26; Product type: Inductive sensor; Mounting: quasi flush; Operating voltage: 10...36 DC; Current consumption: 15; (24 V); Reverse polarity protection: yes; Sensing range: 3; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -20...80 |
|---|---|
| Connector | 1 x M8; coding: A; Contacts: 3; Locking: brass, white bronze coated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | 15; (24 V) |
| Dimensions | 40 x 12 x 26 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 3...15 |
| Key Features | Particularly space-saving rectangular housing; For use where space is restricted; With space-saving M8 connector; Very high switching frequency; Wide operating temperature range |
| Material | housing: PBT; sensing face: PBT orange |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | quasi flush |
| MTTF | 2577 |
| Operating distance | 0...2.4 |
| Operating voltage | 10...36 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Product type | Inductive sensor |
| Protection | IP 65 |
| Protection class | III |
| Real sensing range Sr | 3 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 3 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; 40 x 12 x 26 mm; Sensing range 3 mm quasi flush; normally open; DC; PNP; M8 Connector; IP 65; 3-wire; Ambient temperature -20...80 °C; Switching frequency 1200 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 1200 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IN5370 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 30 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IN5370?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IN5370?
IN5370 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IN5370, and the quote confirms condition and lead time before you order.
Is the IN5370 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IN5370, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IN5370?
No published lifecycle status is on file for IN5370. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IN5370?
Key specifications include Ambient temperature: -20...80; Connector: 1 x M8; coding: A; Contacts: 3; Locking: brass, white bronze coated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3; Current consumption: 15; (24 V). The full specification table on this page lists every published attribute for this part.
What voltage does IN5370 use?
Per the published specification for IN5370: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...36 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IN5370?
Per the published specification for IN5370: Permanent current rating of switching output DC: 250. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is IN5370 made of?
Per the published specification for IN5370: Material: housing: PBT; sensing face: PBT orange. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IN5370 ship?
Lead time for IN5370 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products

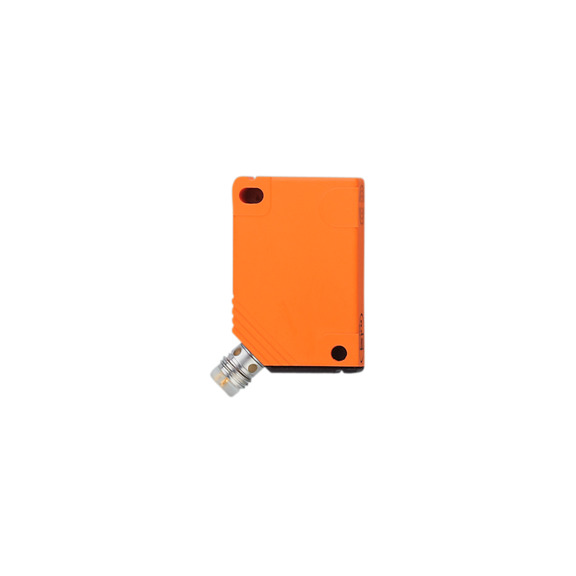

IFM Inductive sensor - IN5364
