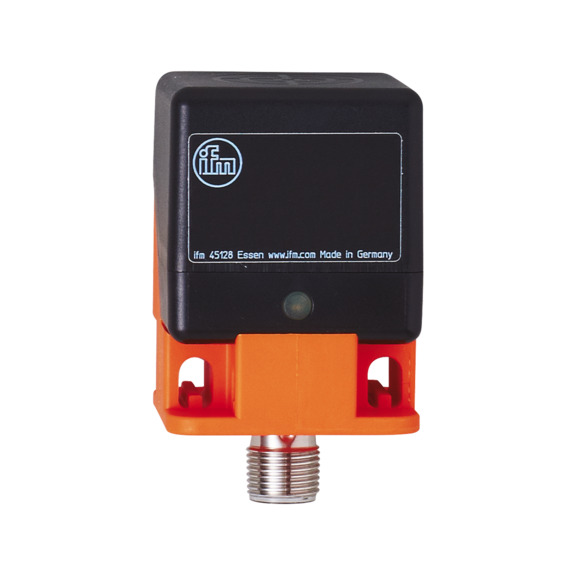

Inductive sensor - IM513A
IFM IM513A - Inductive sensor - Weight: 182.5; Ambient temperature: -20...60; Connector: 1 x M12; coding: A; Contacts: 4, gold-plated.
IFM IM513A is a Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 182.5 and Ambient temperature: -20...60.
housing: PC black; sensing face: PC black; connection module: PA black; Mounting adapter: PA orange; screw: steel galvanized
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: 4, gold-plated; Protection class: III; Dimensions: 40 x 40 x 54; Application: For applications in hazardous areas; Approval: BVS 20 ATEX E 057 X; IECEx BVS 20.0044X; Product type: Inductive sensor; Mounting: non-flush mountable; Operating voltage: 10...30 DC; Current consumption: < 15; Reverse polarity protection: yes; Sensing range: 30; Overload protection: yes. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -20...60 |
|---|---|
| Application | For applications in hazardous areas |
| Approval | BVS 20 ATEX E 057 X; IECEx BVS 20.0044X |
| ATEX marking | II 3G Ex ec IIC T4 Gc |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Current consumption | < 15 |
| Dimensions | 40 x 40 x 54 |
| Electrical design | PNP |
| Housing | rectangular |
| Hysteresis | 1...20 |
| Key Features | For applications in hazardous areas; Robust housing for use in harsh industrial environments; Complementary output function NO/NC; Long sensing range for use in conveying; Five selectable positions of the sensing face |
| Material | housing: PC black; sensing face: PC black; connection module: PA black; Mounting adapter: PA orange; screw: steel galvanized |
| Max. leakage current | 0.5 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | non-flush mountable |
| MTTF | 1260 |
| Operating distance | 0...24.3 |
| Operating voltage | 10...30 DC |
| Output function | complementary |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Real sensing range Sr | 30 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 30 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Inductive sensor; 40 x 40 x 54 mm; Sensing range 30 mm non-flush mountable; complementary; DC; PNP; M12 Connector; IP 65; IP 67; 3-wire; Ambient temperature -20...60 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 182.5 |
