II5863 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM II5863 - Inductive sensor - Ambient temperature: -25...100; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
Overview
Part number II5863 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -25...100; Application Industrial applications; Current consumption 10; Dimensions M30 x 1.5 / L = 75. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the II5863 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Ambient temperature: -25...100.
housing: stainless steel (1.4404 / 316L); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 80; Protection class: III; Dimensions: M30 x 1.5 / L = 75; Application: Industrial applications; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: 10; Reverse polarity protection: yes; Sensing range: 10; Overload protection: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...100 |
|---|---|
| Application | Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | 10 |
| Dimensions | M30 x 1.5 / L = 75 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 1...20 |
| Key Features | Robust metal housing for use in harsh industrial environments; Clearly visible indication of the switching status; Long sensing range minimizes physical damage; For a precise position detection on machines |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1134 |
| Operating distance | 0...8.1 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | III |
| Real sensing range Sr | 10 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 10 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts |
| Specification Summary | Inductive sensor; M30 x 1.5 / L = 75 mm; Sensing range 10 mm flush mountable; normally open; DC; PNP; M12 Connector; IP 67; 3-wire; Ambient temperature -25...100 °C; Switching frequency 250 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 250 |
| Thread designation | M30 x 1.5 |
| Tightening torque | 80 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | II5863 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 34 attributes listed |
| Related part numbers | 11 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for II5863?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the II5863?
II5863 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number II5863, and the quote confirms condition and lead time before you order.
Is the II5863 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the II5863, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of II5863?
No published lifecycle status is on file for II5863. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of II5863?
Key specifications include Ambient temperature: -25...100; Application: Industrial applications; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
What voltage does II5863 use?
Per the published specification for II5863: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of II5863?
Per the published specification for II5863: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does II5863 use?
Per the published specification for II5863: Thread designation: M30 x 1.5. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can II5863 ship?
Lead time for II5863 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - II5669
IFM Inductive sensor - IIP200
IFM Inductive sensor - II5491
IFM Inductive sensor - IIP201

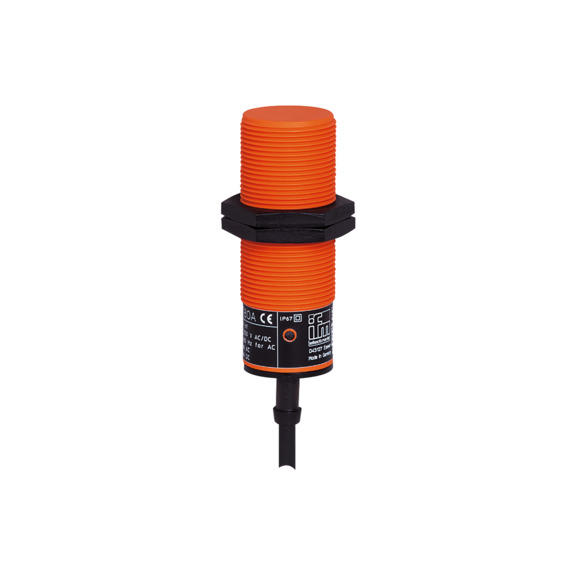

IFM Inductive sensor - II5308
