IG5919 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IG5919 - Inductive sensor - Material: housing: PBT; Ambient temperature: -25...70.
Overview
Part number IG5919 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -25...70; Cable 2 m, PUR; 2 x 0.5 mm²; Dimensions M18 x 1 / L = 56; Electrical design PNP/NPN. KKM Solutions quotes this part with pricing and availability confirmed per order.
IFM IG5919 is an Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: PBT.
Output function normally open / normally closed programmable; Two-wire technology; High protection rating for the requirements of harsh industrial environments
The specification set recorded for this part number covers Ambient temperature: -25...70; Protection class: II; Dimensions: M18 x 1 / L = 56; Product type: Inductive sensor; Mounting: non-flush mountable; Cable: 2 m, PUR; 2 x 0.5 mm²; Operating voltage: 10...55 DC; Reverse polarity protection: yes; Sensing range: 12; Overload protection: yes; Output function: normally open / closed; (selectable); Hysteresis: 3...15. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -25...70 |
|---|---|
| Cable | 2 m, PUR; 2 x 0.5 mm² |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M18 x 1 / L = 56 |
| Electrical design | PNP/NPN |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Key Features | Output function normally open / normally closed programmable; Two-wire technology; High protection rating for the requirements of harsh industrial environments |
| Material | housing: PBT |
| Max. leakage current | 0.5 |
| Max. voltage drop switching output DC | 4.7 |
| Minimum load current | 4 |
| Mounting | non-flush mountable |
| MTTF | 1626 |
| Operating distance | 0...9.7 |
| Operating voltage | 10...55 DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 400 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 12 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 12 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; M18 x 1 / L = 56 mm; Sensing range 12 mm non-flush mountable; normally open / closed; (selectable); DC; PNP/NPN; 2 m PUR-Cable; IP 67; 2-wire; Ambient temperature -25...70 °C; Switching frequency 100 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 100 |
| Thread designation | M18 x 1 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IG5919 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 32 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IG5919?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IG5919?
IG5919 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IG5919, and the quote confirms condition and lead time before you order.
Is the IG5919 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IG5919, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IG5919?
No published lifecycle status is on file for IG5919. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IG5919?
Key specifications include Ambient temperature: -25...70; Cable: 2 m, PUR; 2 x 0.5 mm²; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3; Dimensions: M18 x 1 / L = 56. The full specification table on this page lists every published attribute for this part.
What voltage does IG5919 use?
Per the published specification for IG5919: Max. voltage drop switching output DC: 4.7; Operating voltage: 10...55 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IG5919?
Per the published specification for IG5919: Permanent current rating of switching output DC: 400. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IG5919 use?
Per the published specification for IG5919: Thread designation: M18 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IG5919 ship?
Lead time for IG5919 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Inductive sensor - IG5899
IFM Inductive sensor - IG6220
IFM Inductive sensor - IG5778
IFM Inductive sensor - IGS320

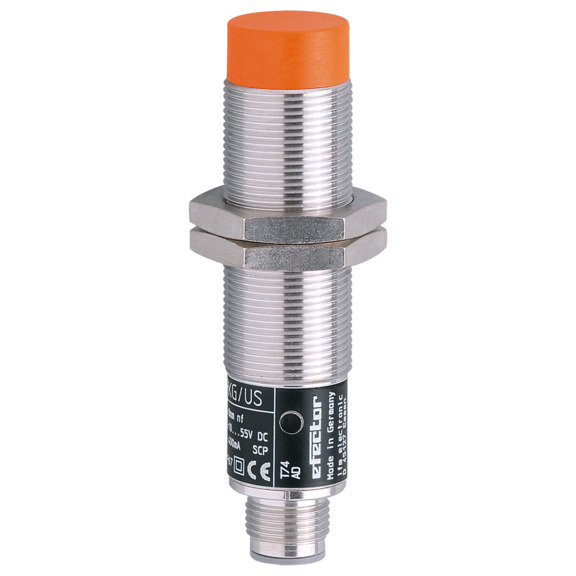

IFM Inductive sensor - IG5775
