Inductive sensor - IG5910
IFM IG5910 - Inductive sensor - Material: housing: brass white bronze coated; sensing face: PC; Weight: 88.9; Ambient temperature: -32...70.
IFM IG5910 is a Inductive sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: brass white bronze coated; sensing face: PC and Weight: 88.9.
Robust metal housing for use in harsh industrial environments; Output function normally open / normally closed programmable; With robust DIN connector
Key manufacturer data on file for this item includes Ambient temperature: -32...70; Connector: 1 x valve type A DIN (DIN EN 175301-803); Protection class: II; Dimensions: M18 x 1 / L = 95; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...36 DC; Current consumption: 15; (24 V); Reverse polarity protection: yes; Sensing range: 8; Overload protection: yes; Output function: normally open / closed; (selectable). See the Specifications tab on this page for the full technical table.
| Ambient temperature | -32...70 |
|---|---|
| Connector | 1 x valve type A DIN (DIN EN 175301-803) |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Current consumption | 15; (24 V) |
| Dimensions | M18 x 1 / L = 95 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 3...10 |
| Key Features | Robust metal housing for use in harsh industrial environments; Output function normally open / normally closed programmable; With robust DIN connector |
| Material | housing: brass white bronze coated; sensing face: PC |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1283 |
| Operating distance | 0...6.5 |
| Operating voltage | 10...36 DC |
| Output function | normally open / closed; (selectable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 400 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 8 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 8 |
| Short circuit protection | yes |
| Specification Summary | Inductive sensor; M18 x 1 / L = 95 mm; Sensing range 8 mm flush mountable; normally open / closed; (selectable); DC; PNP; valve type A DIN Connector; IP 67; 3-wire; Ambient temperature -32...70 °C; Switching frequency 250 Hz |
| Switch-point drift | -18...18 |
| Switching frequency DC | 250 |
| Thread designation | M18 x 1 |
| Type of short-circuit protection | yes (non-latching) |
| Weight | 88.9 |
Frequently Asked Questions
How do I get pricing for IG5910?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IG5910?
IG5910 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IG5910?
Key specifications include Ambient temperature: -32...70; Connector: 1 x valve type A DIN (DIN EN 175301-803); Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3; Current consumption: 15; (24 V). The full specification table on this page lists every published attribute for this part.
How quickly can IG5910 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Inductive sensor - IG5907
IFM Inductive sensor - IG5916
IFM Inductive sensor - IG5924

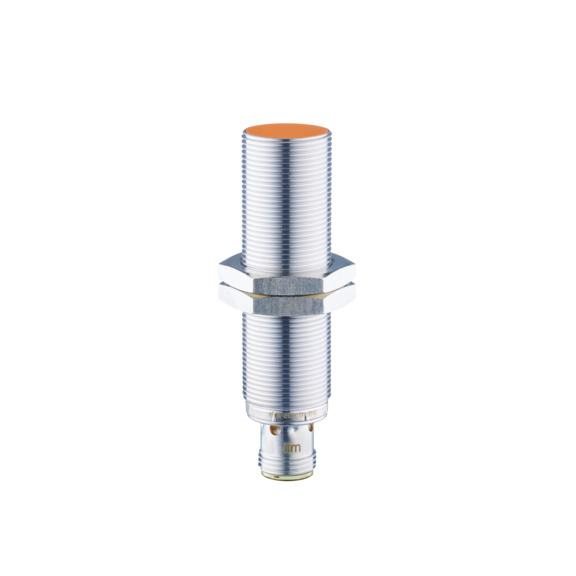

IFM Inductive sensor - IG5905
