IFR207 IFM Inductive full-metal sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IFR207 - Inductive full-metal sensor - Ambient temperature: -40...85; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
Overview
Part number IFR207 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -40...85; Dimensions M12 x 1 / L = 45; Electrical design PNP; Embedded software included yes. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM IFR207, a part number in the Inductive full-metal sensor category. The manufacturer's published data for this part number specifies Ambient temperature: -40...85.
stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; LED window: PEI; lock nuts: brass weld coated
The specification set recorded for this part number covers Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 6; Protection class: III; Dimensions: M12 x 1 / L = 45; Application: Inductive sensors for welding applications; Product type: Inductive full-metal sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 4; Overload protection: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -40...85 |
|---|---|
| Application | Inductive sensors for welding applications |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2 |
| Dimensions | M12 x 1 / L = 45 |
| Electrical design | PNP |
| Embedded software included | yes |
| Full-metal housing | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Weld slag resistant coating; Metal sensing face for heavy duty; High shock and vibration resistance; Particularly short housing for use where space is restricted |
| Magnetic field immune | yes |
| Material | stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; LED window: PEI; lock nuts: brass weld coated |
| Max. electromagnetic field immunity | 100 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1176 |
| Operating distance | 0...3.24 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive full-metal sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 4 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 4 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range; Full-metal housing; Magnetic-field immune |
| Specification Summary | Inductive sensor; M12 x 1 / L = 45 mm; Sensing range 4 mm flush mountable; normally open; DC; PNP; M12 Connector; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature -40...85 °C; Switching frequency 2 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 2 |
| Thread designation | M12 x 1 |
| Tightening torque | 6 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IFR207 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 37 attributes listed |
| Related part numbers | 7 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IFR207?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IFR207?
IFR207 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IFR207, and the quote confirms condition and lead time before you order.
Is the IFR207 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IFR207, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IFR207?
No published lifecycle status is on file for IFR207. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IFR207?
Key specifications include Ambient temperature: -40...85; Application: Inductive sensors for welding applications; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2. The full specification table on this page lists every published attribute for this part.
What voltage does IFR207 use?
Per the published specification for IFR207: Max. voltage drop switching output DC: 2.5; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IFR207?
Per the published specification for IFR207: Permanent current rating of switching output DC: 100. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IFR207 use?
Per the published specification for IFR207: Thread designation: M12 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IFR207 ship?
Lead time for IFR207 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products

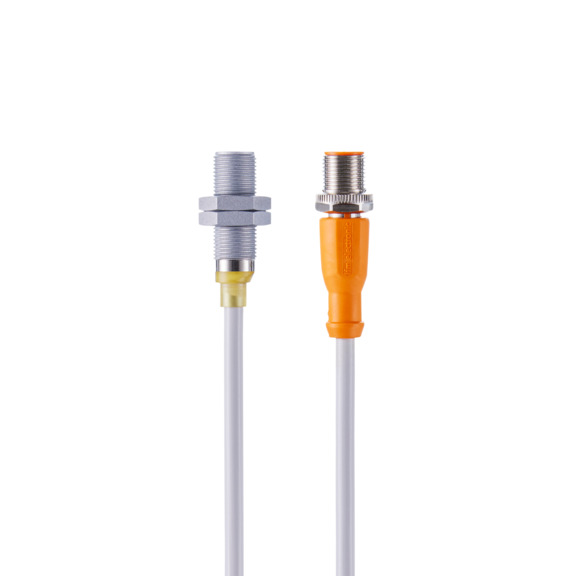

IFM Inductive full-metal sensor - IFR206
IFM Inductive sensor - IFS200

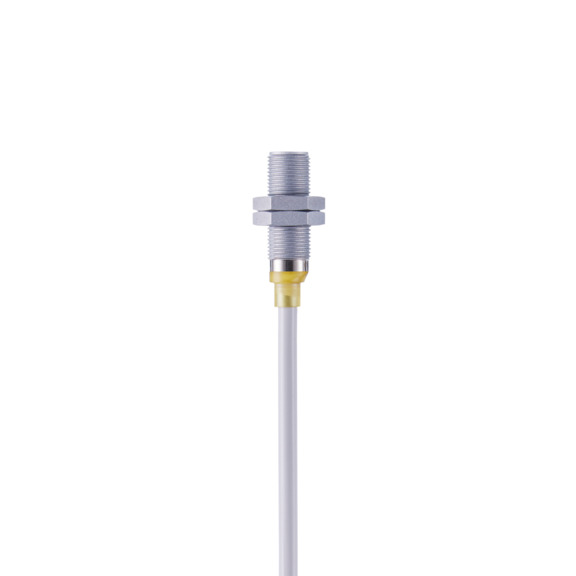

IFM Inductive full-metal sensor - IFR205
