Inductive full-metal sensor - IFR212
IFM IFR212 - Inductive full-metal sensor - Weight: 86; Ambient temperature: -40...85; Tightening torque: 6.
IFM IFR212 is a Inductive full-metal sensor catalog item from IFM. The manufacturer's published data for this part number specifies Weight: 86 and Ambient temperature: -40...85.
stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; LED window: PEI; lock nuts: brass weld coated
Key manufacturer data on file for this item includes Tightening torque: 6; Protection class: III; Dimensions: M12 x 1 / L = 40; Application: Inductive sensors for welding applications; Product type: Inductive full-metal sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 4; Overload protection: yes; Output function: normally open. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -40...85 |
|---|---|
| Application | Inductive sensors for welding applications |
| Cable | 2 m, PUR, Halogen-free, Ø 4.9 mm; not irradiated (can be recycled); 3 x 0.34 mm² / resistant to welding sparks |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2 |
| Current consumption | < 10 |
| Dimensions | M12 x 1 / L = 40 |
| Drag chain suitability | yes |
| Electrical design | PNP |
| Embedded software included | yes |
| Full-metal housing | yes |
| Housing | Threaded type |
| Hysteresis | 3...15 |
| Increased sensing range | yes |
| Key Features | Weld slag resistant coating; Metal sensing face for heavy duty; High shock and vibration resistance; Particularly short housing for use where space is restricted |
| Magnetic field immune | yes |
| Material | stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; LED window: PEI; lock nuts: brass weld coated |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 1188 |
| Operating distance | 0...3.24 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 100 |
| Product type | Inductive full-metal sensor |
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K |
| Protection class | III |
| Real sensing range Sr | 4 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 4 |
| Short circuit protection | yes |
| Special Feature | Halogen-free; Drag chain suitability; Increased sensing range; Full-metal housing; Magnetic-field immune |
| Specification Summary | Inductive sensor; M12 x 1 / L = 40 mm; Sensing range 4 mm flush mountable; normally open; DC; PNP; 2 m PUR-Cable; IP 65; IP 66; IP 67; IP 68; IP 69K; 3-wire; Ambient temperature -40...85 °C; Switching frequency 2 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 2 |
| Thread designation | M12 x 1 |
| Tightening torque | 6 |
| Weight | 86 |
Frequently Asked Questions
How do I get pricing for IFR212?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IFR212?
IFR212 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of IFR212?
Key specifications include Ambient temperature: -40...85; Application: Inductive sensors for welding applications; Cable: 2 m, PUR, Halogen-free, Ø 4.9 mm; not irradiated (can be recycled); 3 x 0.34 mm² / resistant to welding sparks; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2. The full specification table on this page lists every published attribute for this part.
How quickly can IFR212 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

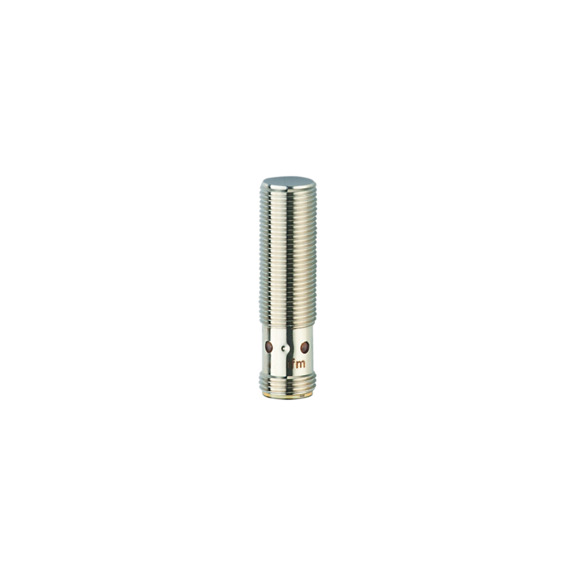

IFM Inductive full-metal sensor - IFC281
