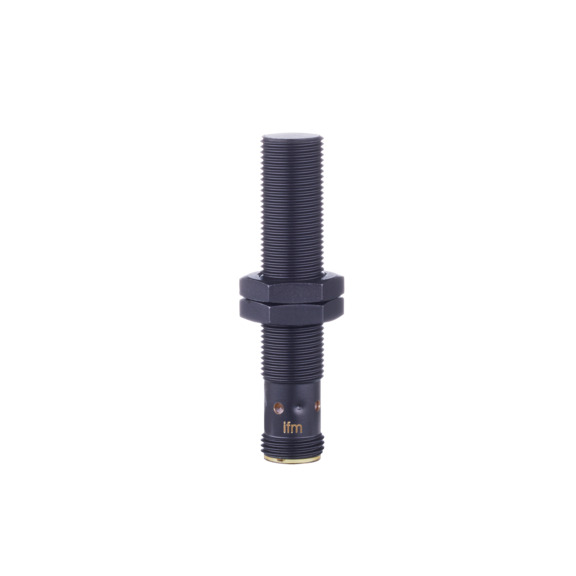

IF6015 IFM Inductive sensor
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM IF6015 - Inductive sensor - Ambient temperature: -25...70; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated.
Overview
Part number IF6015 from IFM, listed in Inductive Proximity Sensors. Specifications on file: Ambient temperature -25...70; Application Industrial applications; Dimensions M12 x 1 / L = 60; Electrical design PNP. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the IF6015 from IFM is listed under the Inductive sensor category. The manufacturer's published data for this part number specifies Weight: 34 and Ambient temperature: -25...70.
housing: brass weld coated; sensing face: PBT black; LED window: PEI; lock nuts: brass weld coated
Published specifications for this part include Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Tightening torque: 2; Protection class: II; Dimensions: M12 x 1 / L = 60; Application: Industrial applications; Product type: Inductive sensor; Mounting: flush mountable; Operating voltage: 10...30 DC; Current consumption: < 10; Reverse polarity protection: yes; Sensing range: 4; Overload protection: yes. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient temperature | -25...70 |
|---|---|
| Application | Industrial applications |
| Connector | 1 x M12; coding: A; Contacts: 3, gold-plated |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M12 x 1 / L = 60 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 1...20 |
| Increased sensing range | yes |
| Key Features | For a precise position detection on machines; Clearly visible indication of the switching status; High protection rating for the requirements of harsh industrial environments; Robust metal housing with non-stick coating; Robust metal housing with non-stick coating |
| Material | housing: brass weld coated; sensing face: PBT black; LED window: PEI; lock nuts: brass weld coated |
| Max. voltage drop switching output DC | 1 |
| Mounting | flush mountable |
| MTTF | 1349 |
| Operating distance | 0...3.24 |
| Operating voltage | 10...30 DC |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Inductive sensor |
| Protection | IP 67 |
| Protection class | II |
| Real sensing range Sr | 4 ± 10 % |
| Reverse polarity protection | yes |
| Sensing range | 4 |
| Short circuit protection | yes |
| Special Feature | gold-plated contacts; Increased sensing range |
| Specification Summary | Inductive sensor; M12 x 1 / L = 60 mm; Sensing range 4 mm flush mountable; normally open; DC; PNP; M12 Connector; IP 67; 3-wire; Ambient temperature -25...70 °C; Switching frequency 400 Hz |
| Switch-point drift | -10...10 |
| Switching frequency DC | 400 |
| Thread designation | M12 x 1 |
| Tightening torque | 2 |
| Type of short-circuit protection | yes (non-latching) |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | IF6015 |
| Product category | Inductive Proximity Sensors |
| Published specifications | 34 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for IF6015?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the IF6015?
IF6015 is made by IFM and is listed in our Inductive Proximity Sensors category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number IF6015, and the quote confirms condition and lead time before you order.
Is the IF6015 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the IF6015, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of IF6015?
No published lifecycle status is on file for IF6015. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of IF6015?
Key specifications include Ambient temperature: -25...70; Application: Industrial applications; Connector: 1 x M12; coding: A; Contacts: 3, gold-plated; Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3. The full specification table on this page lists every published attribute for this part.
What voltage does IF6015 use?
Per the published specification for IF6015: Max. voltage drop switching output DC: 1; Operating voltage: 10...30 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of IF6015?
Per the published specification for IF6015: Permanent current rating of switching output DC: 200. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does IF6015 use?
Per the published specification for IF6015: Thread designation: M12 x 1. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can IF6015 ship?
Lead time for IF6015 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
