LED strip RGBW - DV1151
IFM DV1151 - LED strip RGBW - Material: housing: TPU (urethane); Weight: 222; Storage Temperature: -25...65.
In our catalog, the DV1151 from IFM is listed under the LED strip RGBW category. The manufacturer's published data for this part number specifies Material: housing: TPU (urethane) and Weight: 222.
1 x M12, straight; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Tightening torque: 0.6...1.5 Nm
The specification set recorded for this part number covers Storage Temperature: -25...65; Ambient temperature: -20...45; Dimensions: 278 x 14 x 8.4; Application: signaling machine conditions; Approval: EN 62471; IEC 62031; Pollution degree: 2; Product type: LED strip RGBW; Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ); Operating voltage: 21.6...26.4 DC; Special Feature: Halogen-free; gold-plated contacts; Drag chain suitability; Notes: IO-Link-capable with DP1615; Color temperature: 7500. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -20...45 |
|---|---|
| Application | signaling machine conditions |
| Approval | EN 62471; IEC 62031 |
| Cable | 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Color temperature | 7500 |
| Connector | 1 x M12, straight; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Tightening torque: 0.6...1.5 Nm |
| Dimensions | 278 x 14 x 8.4 |
| Drag chain suitability | yes |
| Input circuit of digital inputs | 24 V PNP |
| Key Features | LEDs in red, green, blue and white colour can be activated via individual connections; Extremely robust, fully potted design with protection rating IP 68; Bent or straight installation; Powerful LEDs for high light yield |
| Luminous flux | red: 32; green: 91; blue: 24; white: 193 |
| Material | housing: TPU (urethane) |
| Max. current consumption | 199; (red: 40; green: 40; blue: 42; white: 77) |
| Max. height above sea level | 4000 |
| Max. relative air humidity | 90 |
| Nominal voltage DC | 24; (to SELV/PELV) |
| Notes | IO-Link-capable with DP1615 |
| Operating voltage | 21.6...26.4 DC |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | LED strip RGBW |
| Protection | IP 68 |
| Sealing material | FKM |
| Special Feature | Halogen-free; gold-plated contacts; Drag chain suitability |
| Specification Summary | LED strip RGBW; 278 x 14 x 8.4 mm; signaling machine conditions: LED multi-color RGB; mounting light: LED white; Operating voltage 21.6...26.4 DC V; Color temperature 7500 K; luminous flux red: 32; green: 91; blue: 24; white: 193 lm; IP 68 |
| Storage Temperature | -25...65 |
| Typ. lifetime | 60000 |
| Weight | 222 |
Frequently Asked Questions
How do I get pricing for DV1151?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DV1151?
DV1151 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of DV1151?
Key specifications include Ambient temperature: -20...45; Application: signaling machine conditions; Approval: EN 62471; IEC 62031; Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ). The full specification table on this page lists every published attribute for this part.
How quickly can DV1151 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM LED strip RGBW - DV1150

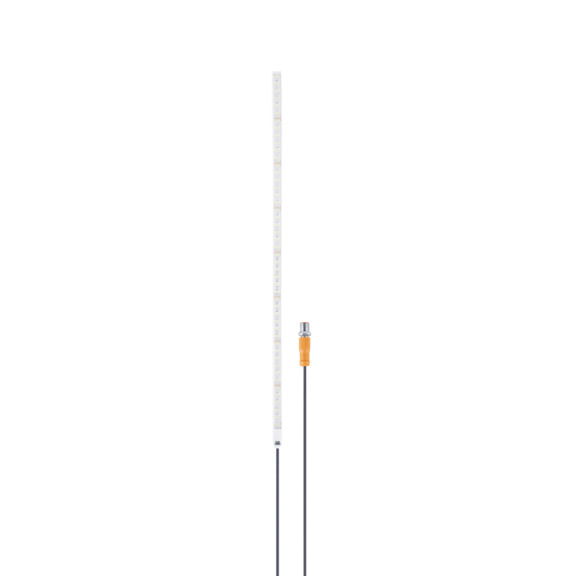

IFM LED strip RGBW - DV1152

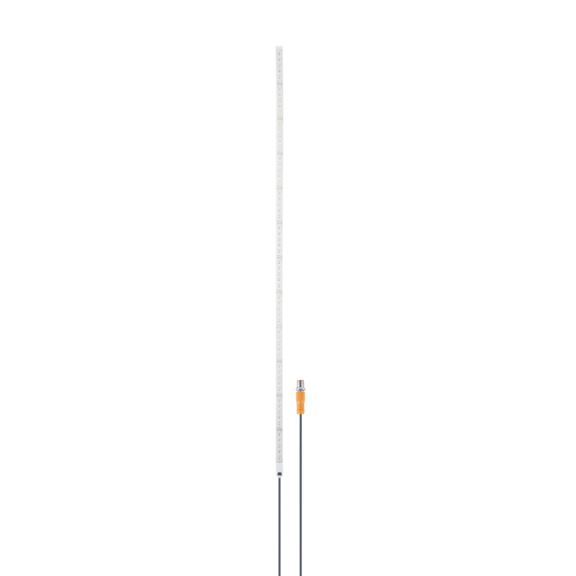

IFM LED strip RGBW - DV1153
IFM LED strip RGBW - DV1104

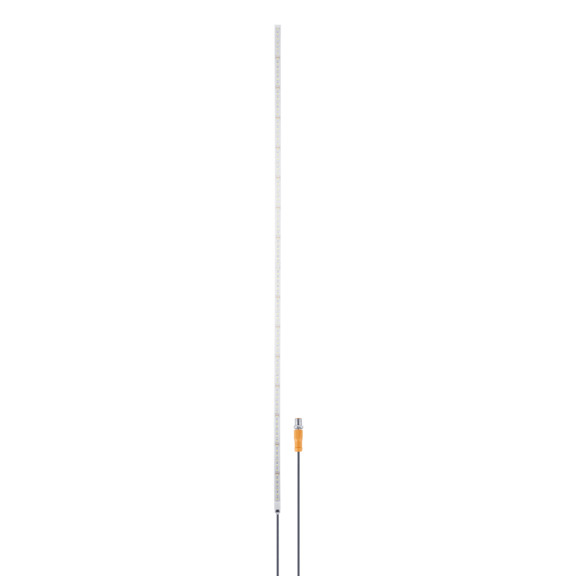

IFM LED strip RGBW - DV1154
