LED strip RGBW - DV1153
IFM DV1153 - LED strip RGBW - Material: housing: TPU (urethane); Weight: 270; Storage Temperature: -25...65.
This listing covers the IFM DV1153, a part number in the LED strip RGBW category. The manufacturer's published data for this part number specifies Material: housing: TPU (urethane) and Weight: 270.
1 x M12, straight; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Tightening torque: 0.6...1.5 Nm
Key manufacturer data on file for this item includes Storage Temperature: -25...65; Ambient temperature: -20...45; Dimensions: 778 x 14 x 8.4; Application: signaling machine conditions; Approval: EN 62471; IEC 62031; Pollution degree: 2; Product type: LED strip RGBW; Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ); Operating voltage: 21.6...26.4 DC; Special Feature: Halogen-free; gold-plated contacts; Drag chain suitability; Notes: IO-Link-capable with DP1615; Color temperature: 7500. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -20...45 |
|---|---|
| Application | signaling machine conditions |
| Approval | EN 62471; IEC 62031 |
| Cable | 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Color temperature | 7500 |
| Connector | 1 x M12, straight; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Tightening torque: 0.6...1.5 Nm |
| Dimensions | 778 x 14 x 8.4 |
| Drag chain suitability | yes |
| Input circuit of digital inputs | 24 V PNP |
| Key Features | LEDs in red, green, blue and white colour can be activated via individual connections; Extremely robust, fully potted design with protection rating IP 68; Bent or straight installation; Powerful LEDs for high light yield |
| Luminous flux | red: 96; green: 273; blue: 72; white: 579 |
| Material | housing: TPU (urethane) |
| Max. current consumption | 599; (red: 120; green: 120; blue: 127; white: 232) |
| Max. height above sea level | 4000 |
| Max. relative air humidity | 90 |
| Nominal voltage DC | 24; (to SELV/PELV) |
| Notes | IO-Link-capable with DP1615 |
| Operating voltage | 21.6...26.4 DC |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | LED strip RGBW |
| Protection | IP 68 |
| Sealing material | FKM |
| Special Feature | Halogen-free; gold-plated contacts; Drag chain suitability |
| Specification Summary | LED strip RGBW; 778 x 14 x 8.4 mm; signaling machine conditions: LED multi-color RGB; mounting light: LED white; Operating voltage 21.6...26.4 DC V; Color temperature 7500 K; luminous flux red: 96; green: 273; blue: 72; white: 579 lm; IP 68 |
| Storage Temperature | -25...65 |
| Typ. lifetime | 60000 |
| Weight | 270 |
Frequently Asked Questions
How do I get pricing for DV1153?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DV1153?
DV1153 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of DV1153?
Key specifications include Ambient temperature: -20...45; Application: signaling machine conditions; Approval: EN 62471; IEC 62031; Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ). The full specification table on this page lists every published attribute for this part.
How quickly can DV1153 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM LED strip RGBW - DV1152
IFM LED strip RGBW - DV1154
IFM LED strip RGBW - DV1155
IFM LED strip RGBW - DV1151

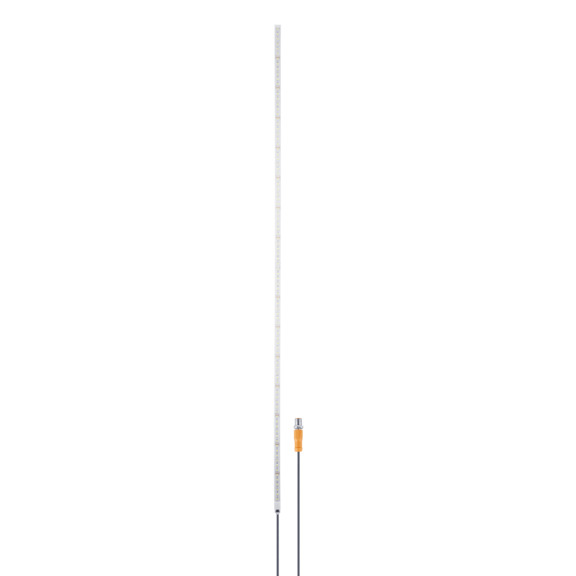

IFM LED strip RGBW - DV1156
