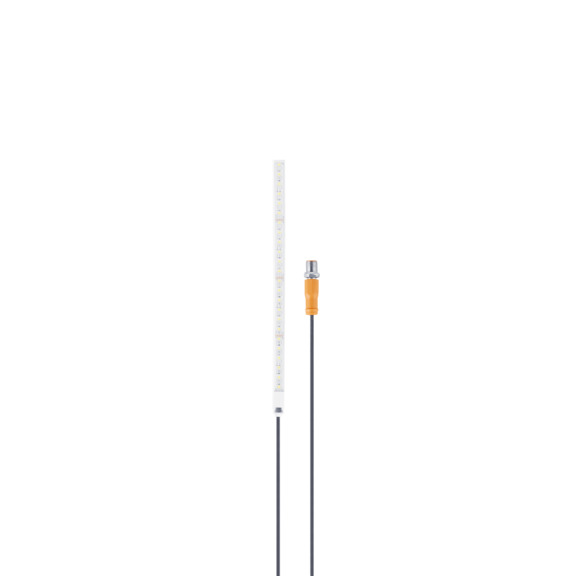

LED strip RGBW - DV1102
IFM DV1102 - LED strip RGBW - Material: housing: TPU (urethane); Weight: 75.4; Ambient temperature: -20...45.
The IFM DV1102 is part of the LED strip RGBW range in our industrial catalog. The manufacturer's published data for this part number specifies Material: housing: TPU (urethane) and Weight: 75.4.
M12, straight; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Tightening torque: 0.6...1.5 Nm
The specification set recorded for this part number covers Ambient temperature: -20...45; Dimensions: 515 x 14.2 x 4.5; Application: signaling machine conditions; Approval: EN 62471; IEC 62031; Pollution degree: 2; Product type: LED strip RGBW; Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ); Operating voltage: 21.6...26.4 DC; Special Feature: Halogen-free; gold-plated contacts; Notes: IO-Link-capable with DP1615; Color temperature: 7500; Max. current consumption: 720; (red: 160; green: 160; blue: 160; white: 240). See the Specifications tab on this page for the full technical table.
| Ambient temperature | -20...45 |
|---|---|
| Application | signaling machine conditions |
| Approval | EN 62471; IEC 62031 |
| Cable | 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Color temperature | 7500 |
| Connector | M12, straight; coding: A; Contacts: 5, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Tightening torque: 0.6...1.5 Nm |
| Dimensions | 515 x 14.2 x 4.5 |
| Input circuit of digital inputs | 24 V PNP |
| Key Features | LEDs in red, green, blue and white colour can be activated via individual connections; Extremely robust, fully potted design with protection rating IP 68; Bent or straight installation; Powerful LEDs for high light yield |
| Luminous flux | red: 184.96; green: 572; blue: 116; white: 768.32 |
| Material | housing: TPU (urethane) |
| Max. current consumption | 720; (red: 160; green: 160; blue: 160; white: 240) |
| Max. height above sea level | 4000 |
| Max. relative air humidity | 90 |
| Nominal voltage DC | 24; (to SELV/PELV) |
| Notes | IO-Link-capable with DP1615 |
| Operating voltage | 21.6...26.4 DC |
| Pack quantity | 1 pcs. |
| Pollution degree | 2 |
| Product type | LED strip RGBW |
| Protection | IP 68 |
| Sealing material | FKM |
| Special Feature | Halogen-free; gold-plated contacts |
| Specification Summary | LED strip RGBW; 515 x 14.2 x 4.5 mm; signaling machine conditions: LED multi-color RGB; mounting light: LED white; Operating voltage 21.6...26.4 DC V; Color temperature 7500 K; luminous flux red: 184.96; green: 572; blue: 116; white: 768.32 lm; IP 68 |
| Typ. lifetime | 38000 |
| Weight | 75.4 |
