DI522A IFM Compact evaluation unit for speed monitoring
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM DI522A - Compact evaluation unit for speed monitoring - Material: housing: brass special coating; PA; stainless steel; TPE-U; Storage Temperature: -25...60.
Overview
Part number DI522A from IFM, listed in Monitoring & Measuring Relays. Specifications on file: Adjustment of the switch point multiturn potentiometer; Ambient temperature -25...60; Approval IECEx BVS 17.0094X; ATEX marking II 3D Ex tc IIIC T80°C Dc X. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the IFM DI522A, a part number in the Compact evaluation unit for speed monitoring category. The manufacturer's published data for this part number specifies Material: housing: brass special coating; PA; stainless steel; TPE-U.
simple evaluation of rotating and linear movement with regard to underspeed; blocking
The specification set recorded for this part number covers Storage Temperature: -25...60; Ambient temperature: -25...60; Connector: 1 x M12; coding: A; Contacts: 3; Protection class: III; Dimensions: M30 x 1.5 / L = 92.3; Approval: IECEx BVS 17.0094X; Product type: Compact evaluation unit for speed monitoring; Mounting: flush mountable; Short-circuit-proof: yes; Current consumption: < 20; Reverse polarity protection: yes; Sensing range: 10. See the Specifications tab on this page for the full technical table.
Specifications
| Adjustment of the switch point | multiturn potentiometer |
|---|---|
| Ambient temperature | -25...60 |
| Application | simple evaluation of rotating and linear movement with regard to underspeed; blocking |
| Approval | IECEx BVS 17.0094X |
| ATEX marking | II 3D Ex tc IIIC T80°C Dc X |
| Connector | 1 x M12; coding: A; Contacts: 3 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M30 x 1.5 / L = 92.3 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 10 |
| Key Features | Easy setting of the switch point via potentiometer; Reliable non-contact monitoring of the rotational speed with regard to underspeed; 2 in 1: speed sensor and evaluation in one compact housing |
| Material | housing: brass special coating; PA; stainless steel; TPE-U |
| Max. damping frequency | 18000 |
| Max. voltage drop switching output DC | 2.5 |
| Measuring principle | inductive |
| Mounting | flush mountable |
| MTTF | 3262 |
| Nominal voltage DC | 10...36 |
| Operating distance | 0...8.1 |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Product type | Compact evaluation unit for speed monitoring |
| Protection | IP 65; IP 67 |
| Protection class | III |
| Reverse polarity protection | yes |
| Sensing range | 10 |
| Sensing range adjustable | no |
| Setting range | 5...3600 |
| Short-circuit-proof | yes |
| Short-time current rating of switching output | 250 |
| Specification Summary | Speed monitor; M30 x 1.5 / L = 92.3 mm; PNP; normally open; 10 mm; flush mountable; Connector |
| Start-up delay | 5 |
| Storage Temperature | -25...60 |
| Thread designation | M30 x 1.5 |
| Total number of outputs | 1 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | DI522A |
| Product category | Monitoring & Measuring Relays |
| Published specifications | 38 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for DI522A?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DI522A?
DI522A is made by IFM and is listed in our Monitoring & Measuring Relays category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number DI522A, and the quote confirms condition and lead time before you order.
Is the DI522A new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the DI522A, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of DI522A?
No published lifecycle status is on file for DI522A. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of DI522A?
Key specifications include Adjustment of the switch point: multiturn potentiometer; Ambient temperature: -25...60; Application: simple evaluation of rotating and linear movement with regard to underspeed; blocking; Approval: IECEx BVS 17.0094X. The full specification table on this page lists every published attribute for this part.
What voltage does DI522A use?
Per the published specification for DI522A: Max. voltage drop switching output DC: 2.5; Nominal voltage DC: 10...36. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of DI522A?
Per the published specification for DI522A: Permanent current rating of switching output DC: 250; Short-time current rating of switching output: 250. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does DI522A use?
Per the published specification for DI522A: Thread designation: M30 x 1.5. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can DI522A ship?
Lead time for DI522A is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Compact evaluation unit for speed monitoring - DI521A
IFM Compact evaluation unit for speed monitoring - DI523A
IFM Compact evaluation unit for speed monitoring - DI520A

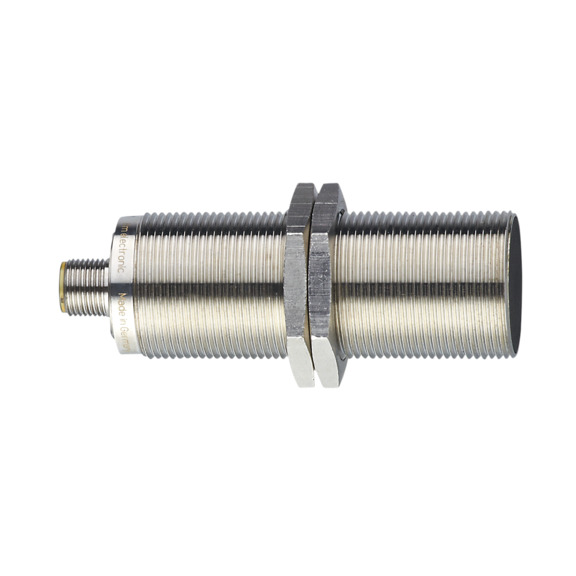

IFM Compact evaluation unit for speed monitoring - DI524A
IFM Compact evaluation unit for speed monitoring - DI5033

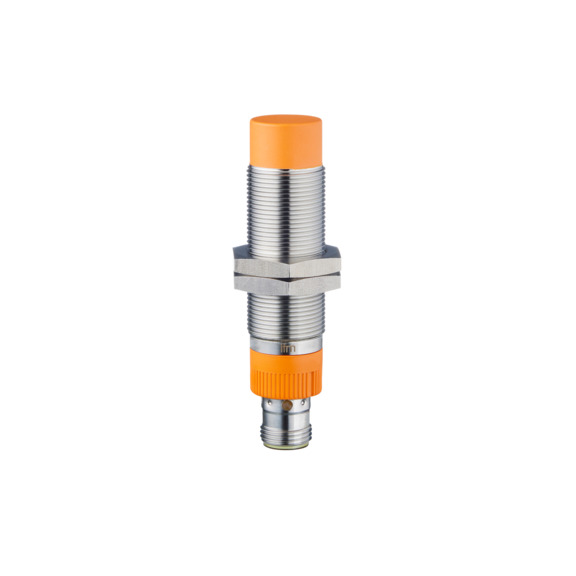

IFM Compact evaluation unit for speed monitoring - DI6004
