DI5004 IFM Compact evaluation unit for speed monitoring
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM DI5004 - Compact evaluation unit for speed monitoring - Material: housing: brass special coating; PBT; Ambient temperature: -25...80.
Overview
Part number DI5004 from IFM, listed in Monitoring & Measuring Relays. Specifications on file: Adjustment of the switch point multiturn potentiometer; Ambient temperature -25...80; Connector 1 x SS connector; Dimensions M30 x 1.5 / L = 81. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the DI5004 from IFM is listed under the Compact evaluation unit for speed monitoring category. The manufacturer's published data for this part number specifies Material: housing: brass special coating; PBT.
simple evaluation of rotating and linear movement with regard to underspeed; blocking
Published specifications for this part include Ambient temperature: -25...80; Connector: 1 x SS connector; Tightening torque: 50; Dimensions: M30 x 1.5 / L = 81; Product type: Compact evaluation unit for speed monitoring; Mounting: flush mountable; Short-circuit-proof: yes; Current consumption: < 15; Reverse polarity protection: yes; Sensing range: 10; Overload protection: yes; Output function: normally open. See the Specifications tab on this page for the full technical table.
Specifications
| Adjustment of the switch point | multiturn potentiometer |
|---|---|
| Ambient temperature | -25...80 |
| Application | simple evaluation of rotating and linear movement with regard to underspeed; blocking |
| Connector | 1 x SS connector |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Dimensions | M30 x 1.5 / L = 81 |
| Electrical design | PNP |
| Housing | Threaded type |
| Hysteresis | 10 |
| Key Features | Reliable non-contact monitoring of the rotational speed with regard to underspeed; 2 in 1: speed sensor and evaluation in one compact housing; Easy setting of the switch point via potentiometer; For direct connection to a PLC; Reduced installation complexity |
| Material | housing: brass special coating; PBT |
| Max. damping frequency | 15000 |
| Max. voltage drop switching output DC | 2.5 |
| Mounting | flush mountable |
| MTTF | 898 |
| Nominal voltage DC | 10...36 |
| Output function | normally open |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 250 |
| Product type | Compact evaluation unit for speed monitoring |
| Protection | IP 67 |
| Reverse polarity protection | yes |
| Sensing range | 10 |
| Sensing range adjustable | no |
| Setting range | 5...300 |
| Short-circuit-proof | yes |
| Short-time current rating of switching output | 250 |
| Specification Summary | Speed monitor; M30 x 1.5 / L = 81 mm; PNP; normally open; 10 mm; flush mountable; Connector |
| Start-up delay | 15 |
| Thread designation | M30 x 1.5 |
| Tightening torque | 50 |
| Total number of outputs | 1 |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | DI5004 |
| Product category | Monitoring & Measuring Relays |
| Published specifications | 33 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for DI5004?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DI5004?
DI5004 is made by IFM and is listed in our Monitoring & Measuring Relays category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number DI5004, and the quote confirms condition and lead time before you order.
Is the DI5004 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the DI5004, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of DI5004?
No published lifecycle status is on file for DI5004. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of DI5004?
Key specifications include Adjustment of the switch point: multiturn potentiometer; Ambient temperature: -25...80; Application: simple evaluation of rotating and linear movement with regard to underspeed; blocking; Connector: 1 x SS connector. The full specification table on this page lists every published attribute for this part.
What voltage does DI5004 use?
Per the published specification for DI5004: Max. voltage drop switching output DC: 2.5; Nominal voltage DC: 10...36. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the current rating of DI5004?
Per the published specification for DI5004: Permanent current rating of switching output DC: 250; Short-time current rating of switching output: 250. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What thread or connection does DI5004 use?
Per the published specification for DI5004: Thread designation: M30 x 1.5. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can DI5004 ship?
Lead time for DI5004 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Evaluation unit for speed monitoring - DD2510
IFM Compact evaluation unit for speed monitoring - DI506A
IFM Evaluation unit for speed monitoring - DD2503

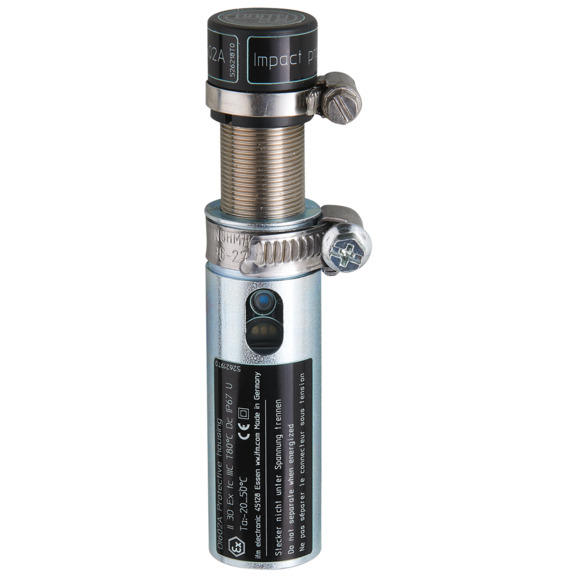

IFM Compact evaluation unit for speed monitoring - DI602A
